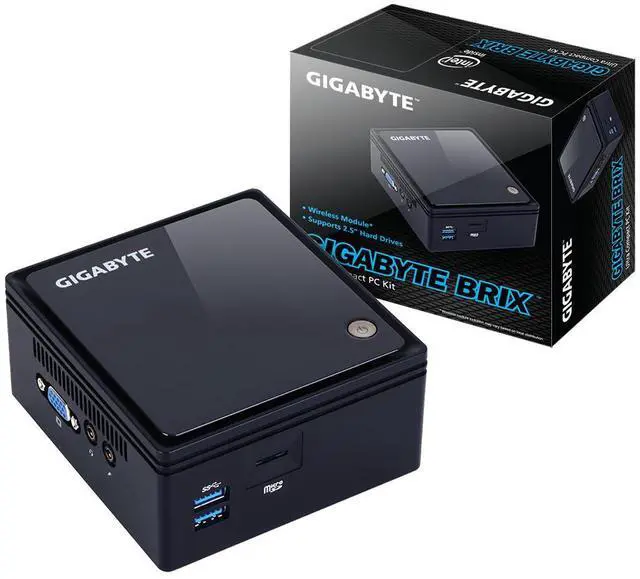

Gigabyte Brix Mini PC Intel Celeron J3160 2.24GHz CPU VGA HDMI HTPC GB-BACE-3160

Features 14nm Intel® J3160 to deliver to the most intuitive and integrated operating systems in the world

Supports 2.5 thickness 7.0 / 9.5 mm Hard Drives (1 x 6Gbps SATA3)

Ultra compact PC design 0.69L ( 56.1 x 107.6 x 114.4 mm)

1x SO-DIMM DDR3L 1.35V Slots (1066/1600 MHz)

Intel® IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M. 2 card

Supports dual displays via a VGA and a HDMI port

Gigabit LAN

Audio jack (Headphone/MIC)

VESA mounting bracket (75 x 75mm + 100 x 100mm)

Dimension

56.1 mm x 107.6 mm x 114.4 mm ( 2.21" x 4.24" x 4.5" )

Motherboard Size

100 x 105 mm

CPU

Intel® Celeron® Processor J3160 (2M Cache, up to 2.24 GHz)

Memory

1x SO-DIMM DDR3L 1.35V slot

1066/1600 MHz

Max. 8GB

LAN

Gigabit LAN (Realtek RTL8111H)

Graphics

Intel® HD Graphics 400

Audio

Realtek ALC255

VGA Resolution (Max. )

1920 x 1200 @60 Hz

HDMI Resolution (Max. )

3840x2160 @ 30 Hz

Storage

Supports 2.5 thickness 7.0 / 9.5 mm Hard Drives (1 x 6Gbps SATA3)

Expansion Slots

1 x PCIe M. 2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O

2x USB 3.0

1 x Micro SD card slot

Rear I/O

1 x HDMI

2 x USB 3.0

1 x RJ45

1 x DC-In

1 x Kensington lock slot

Side I/O

1 x VGA

1 x headset phone jack

1 x Mic phone jack

Power Supply

Input: AC 100-240V

Output: DC 19V

2.1A

VESA

Bracket included

Supports 75 x 75 and 100 x 100 mm

Support OS

WIN7 64bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

WIN 8.1 64bit

WIN10 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
