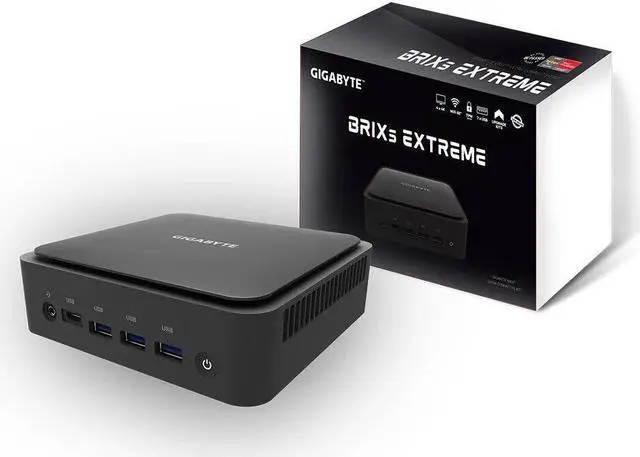

Gigabyte Brix Barebone GB-BER3-5300 CPU AMD Ryzen 3 5300U DDR4 HDMI DP

Dimension
48.3 mm x 134.2 mm x 139.1 mm ( 1.9" x 5.3" x 5.4" )
Motherboard Size
125mm x 128.8 mm ( 4.9 ' x 5.1" )
CPU
AMD Ryzen 3 5300U, 3.8 / 2.6 GHz, 4C/8T Core, 6MB Cache
Mobile Processor with Radeon Graphics, 15W, Zen 2
Memory
2 x SO-DIMM DDR4 slots, support up to 3200MHz
Max. 64GB
LAN
2.5G LAN (Realtek 8125)
Wifi Card
AMD RZ608 Wifi 6 /BT 5.2 Module
Audio
Realtek ALC897 HD audio
Video
AMD Radeon Graphics
HDMI Resolution (Max. )
2x HDMI 2.0 a with HDCP 2.2
Max Resolution 3840x2160@60Hz
Mini DP Resolution (Max. )
Mini DP /USB Type-C DP supports: DP 1.4
Max Resolution 3840x2160@60Hz
Storage
1 x PCI-e Gen3 x 4 /SATA M. 2 2280 slot
Expansion Slots
1 x PCIe M. 2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x Power Button
1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
1 x head phone jack with MIC
Rear I/O
2 x HDMI( 2.0 b)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In
1 x Kensington lock slot
TPM
Integrate TPM module* (in selected regions /countries)
Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W
VESA
Mounting Bracket Included
Support OS
Windows 11 64Bit
Windows 10 64bit
Environment
Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
