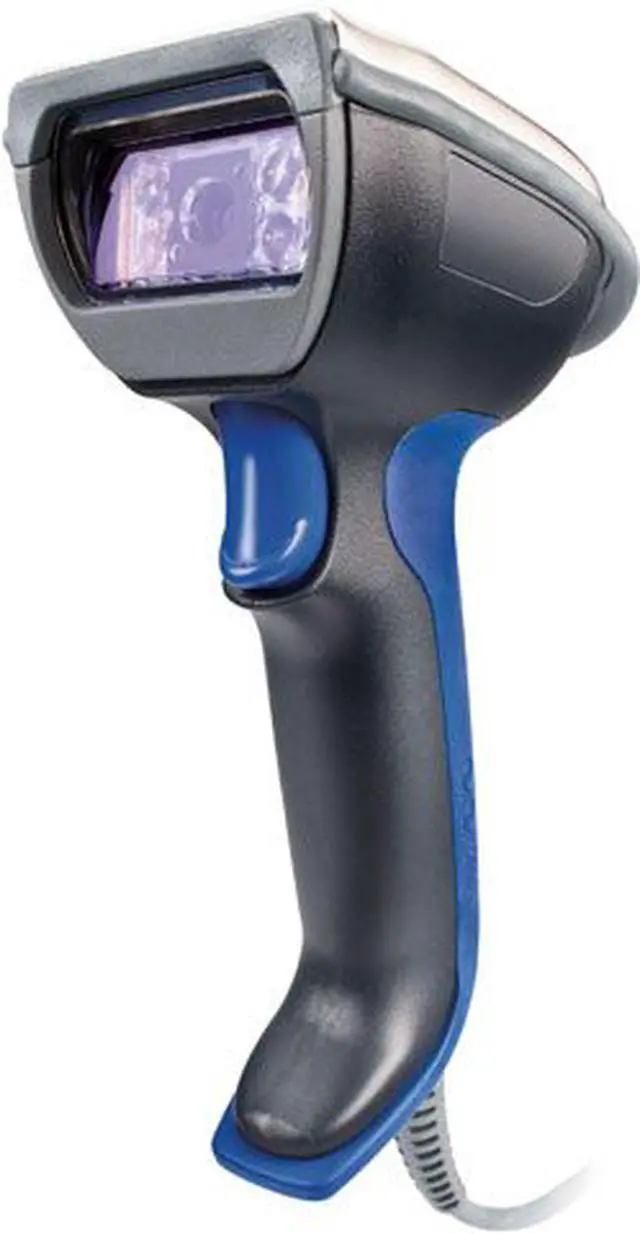

Intermec SR61BL-002 Rugged Wireless Handheld Barcode Scanner
- Item #: 9SIV2GEDW50662
- Mfr. Part #: SR61BL-002
- UNSPSC: 43211701
- 1D Linear Imager
- Omni-directional
- Includes scanner with battery
- Typical reading distances at 200 lux
- USB Interface
+
+
Overview
Specs
Reviews
SR61-HP Industrial Scanner
Overview
The rugged and versatile SR61-HP 2D scanner combines our fastest scanning engine with our most robust form factor. With unmatched motion tolerance and support for omnidirectional scanning, this scanner gives you incredible responsiveness at any scan angle.
A Complete Family
Part of a comprehensive scanner family that includes full-range scanning, arm’s length scanning, specialized DPM and intrinsically-safe options.
Incredibly Responsive
High performance area imager is capable of quickly scanning 1D and 2D barcodes out to 93.6 cm (36.85 in); supports image and real-time video capture.
Ultra Rugged
Designed to withstand 26 drops to concrete or steel from 2 m (6.5 ft), temperature extremes, constant forklift vibration and windblown dust and rain.
Easy to Use
Highly visible aimer makes targeting barcodes fast and efficient.
Ergonomically Designed
Comfort grip and omnidirectional scanning capability result in less worker fatigue over a full shift.
Compatible
Full-speed USB 2.0 wired or Bluetooth® wireless interface lets you quickly transfer barcode data or images to the host system.
Accessorize
Wide range of available accessories include hangers, holsters, mounts, wireless base stations, and chargers.
Non-Incendive Model Available
Ask us about the SR61-BHP900 non-incendive scanner with locking battery. (Available in the U.S. and Canada.)
Specifications
MECHANICAL
Dimensions (LxWxH)
Tethered Models: 19.4 cm x 7.2 cm x 13.1 cm (7.6 in x 2.8 in x 5.2 in)
Weight
Tethered Models: 320 gm (11.2 oz)
Dimensions (LxWxH)
Wireless Models : 17.8 cm x 7 cm x 11.4 cm (7 in x 2.75 in x 4.5 in)
Weight
Wireless Models : without battery 425 gm (15 oz)
ELECTRICAL
Battery
Wireless Models
Type: Lithium-ion
Battery Life: 10+ hours per full charge
Battery Recharge : 2.5 hours for 90% charge
OPERATING POWER
5V DC, 1.7A
BLUETOOTH
Wireless Models
Type: Bluetooth class 1 version 2.1 + EDR
Frequency: 2.4 GHz with Adaptive Frequency Hopping
Range: 100 m (325 ft) in open space, 30 m (100 ft) in typical work environment
Host System Interfaces
Connectivity: Connects to Intermec computers and printers, as well as standard PCs.
Tethered Models: RS232, USB 2.0 (HID Keyboard, Virtual Com Port), Keyboard Wedge, Wand Emulation
Wireless Models: SPP, HID Keyboard
ENVIRONMENTAL
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-40°C to +70°C (-40°F to +158°F)
Humidity
0% to 95% RH, non-condensing
Shock & Vibration
SAE Specification J1399 Class 3 (off road vehicle)
Drop
26 drops onto concrete or steel surface from a height of 1.98 m (6.5 ft)
Environmental Sealing
IP54
Light Levels
Works in any lighting conditions from 0 to 100,000 lux
APPROVALS
REGULATORY APPROVALS
SR61T: Laser Class 2 (SR61TL); CE Mark (EU) (EN 55024, EN 55022 Class B, IEC 60950-1, IEC 60825-1); CISPR 22 Class B; CQC (CH); cULus (CA/USA) (UL 60950-1); C-TICK (AU/NZ); GS Mark (DE) (EN 60950-1, EN 60825-1); KCC (KR); NOM (MX); Part 15 of FCC Rules, Class B
SR61B: Laser Class 2 (SR61BL); ANATEL (BR); CE Mark (EU) (EN301 489-17 V2.1.1, EN 300 328 V1.7.1, IEC60950-1, IEC60825-1); COFETEL (MX); cULus (CA/USA) (UL 60950-1); C-TICK (AU/NZ); KCC (KR); SRRS (CH); Part 15 of FCC Rules, Class B
Hazardous: Environments (SR61BHP-900) Non-Incendive (Class 1; Divison 2; Groups A, B, C, D; T6)
SCAN PERFORMANCE
Scan Pattern
SR61x1D: Linear Area Imager (EV10)
SR61xL: Linear Standard Range Laser (EL20)*
BARCODE SYMBOLOGIES SUPPORTED
1D & Stacked: Codabar; Codablock; Code 11; Code 128 (GS1-128); Code 39; Code 93/93i; EAN/UPC; GS1 DataBar Expanded; GS1 DataBar Limited; GS1 DataBar Omni-Directional; GS1 DataBar Stacked; Interleaved 2 of 5; Macro PDF; Micro PDF; Matrix 2 of 5; MSI; PDF417; Plessey; Standard 2 of 5; Telepen; TLC39
2D: Aztec; DataMatrix; GS1 Composite; Maxicode; QR Code
Postal: Australian Post; BPO; Canada Post; Dutch Post; Infomail; Intelligent Mail; Japan Post; Planet; Postnet; Sweden Post
Warranty
Tethered Models (SR61T): 3 years
Bluetooth Models (SR61B): 3 years (90 days on battery) Extended protection available with Medallion support
MISCELLANEOUS
Comprehensive Support Services
Intermec bar code scanners operate in dynamic business environments, and a support plan can protect you from unforeseen contingencies. Intermec Medallion® Service programs deliver the highest levels of productivity, device reliability, and uptime. The Medallion® Complete support package covers hardware failure, general wear and tear and accidental damage.
The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution, and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high-impact housing that is virtually impenetrable and a solid-state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture, or extreme temperatures are constants and operational uptime is critical.
FEATURES
LASER SCANNER WITH BATTERY
Speed up customer checkout experience
Bluetooth technology - allows compatibility with most of your smart devices
FEATURES
LASER SCANNER WITH BATTERY
Speed up customer checkout experience
Bluetooth technology - allows compatibility with most of your smart devices
