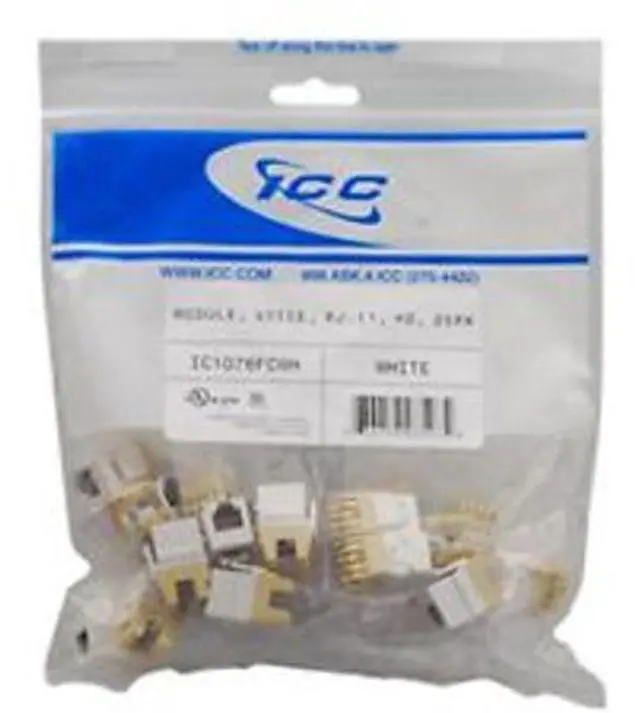

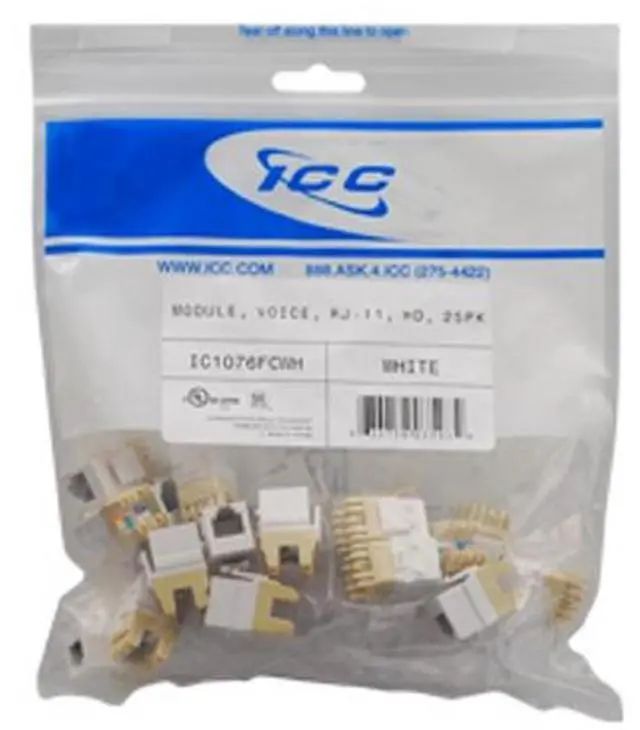

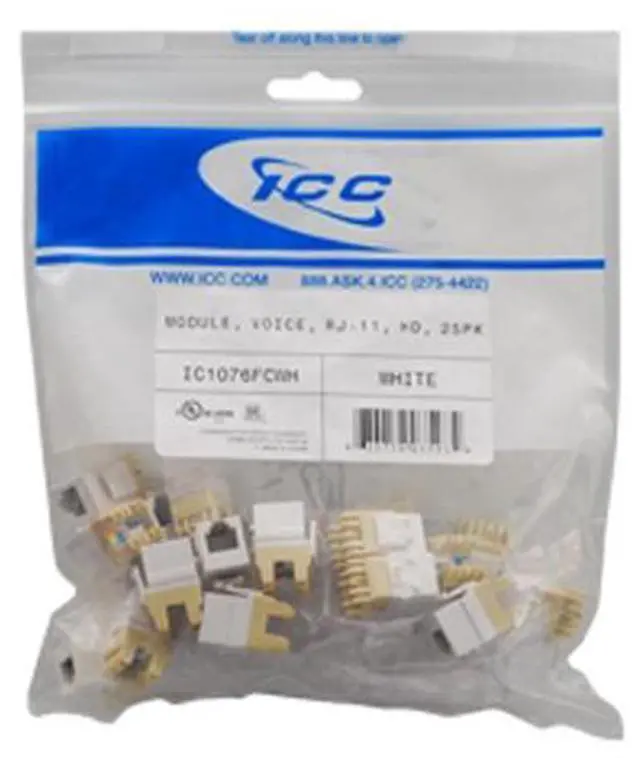

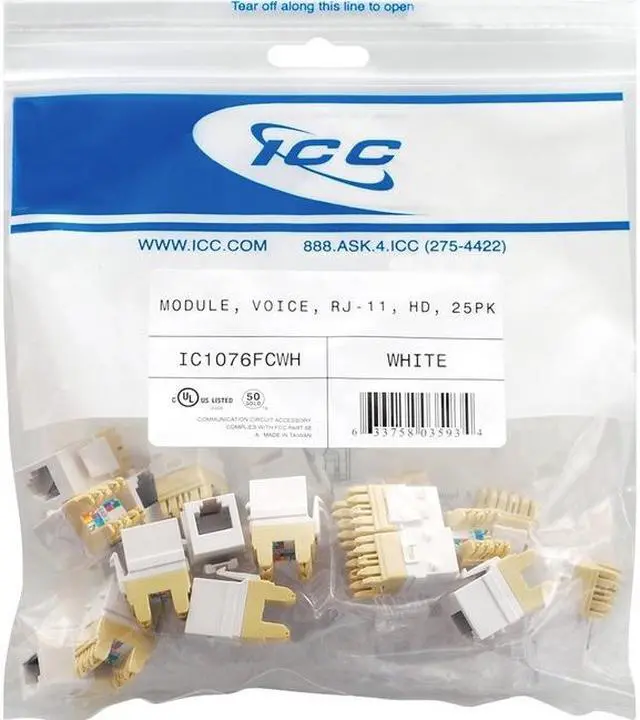

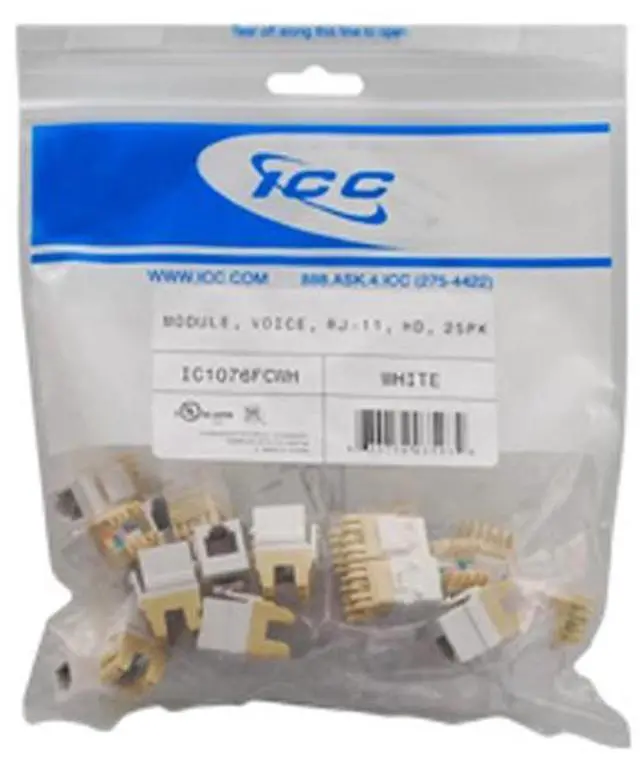

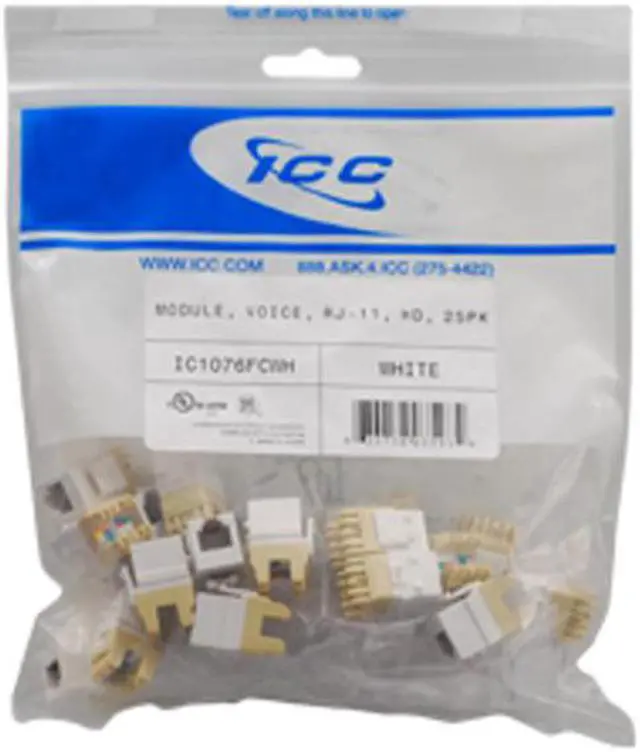

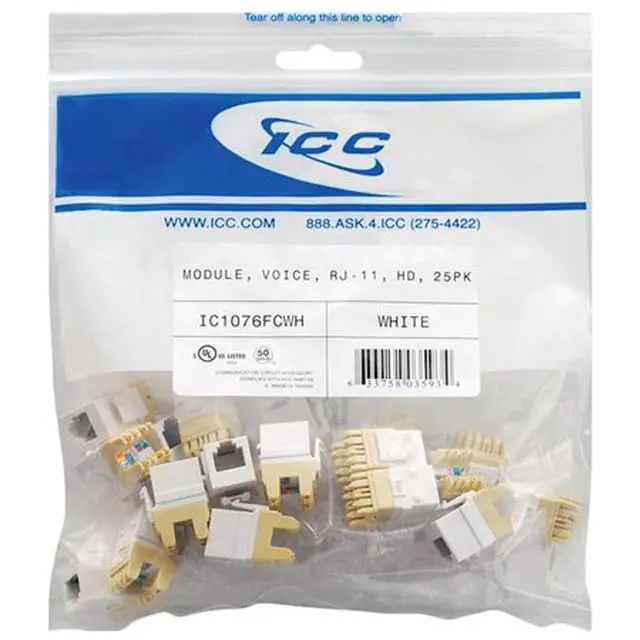

MODULE, VOICE, RJ-11, HD, 25PK, WH

Overview The HD 25-pack RJ-11 6P6C CAT 3 cable compatible modular jacks saves you time and money. It is ideal for all voice and business system applications. The 25-pack has a resealable strip at the top to prevent any mixing of colors or types of keystone jacks or even misplacing any extra keystone jacks you may have. Compatible with RJ11/ 14 and 25 keystone jacks and plugs. Specifications 1.
RJ-11 Voice Module: A.
Electrical: Current
rating: 1.5 amps max.
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts rms, 60Hz
Insulation resistance: >10 mohms B.
Mechanical: Mated
force: 5 lbs max.
Unmated force: 5 lbs max.
Plug retention force: 20 lbs min.
Durability: 750 cycles C.
Physicals:
Housing: ABS, UL 94V-0
Contact: Phosphor bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel
Gold plating: 1.27 micron/ 50 micro inch min.
Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
D:
Colors:
XX: IV - Ivory & WH - White
2.
Termination cap: A.
Material: PC, UL 94V-0 B.
Color: Clear Also known as -Cat. 3 Modular Connector-ICC Cat. 3 Modular Connector - 25 Pack - 1 x RJ-11 - White-ICC MODULE, VOICE, RJ-11, HD, 25PK, WH
