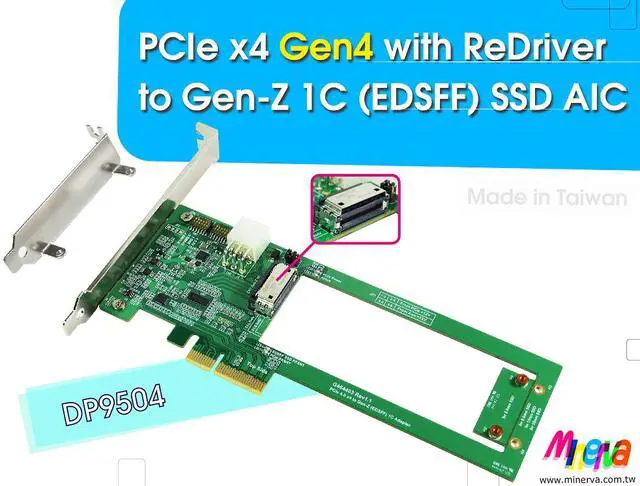

PCIe x4 Gen4 with ReDriver & Hot Plug controllers for EDSFF 1C

#DP9504 adapter :

Features :
* Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
* Built- in EDSFF 1C with latch connector
* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

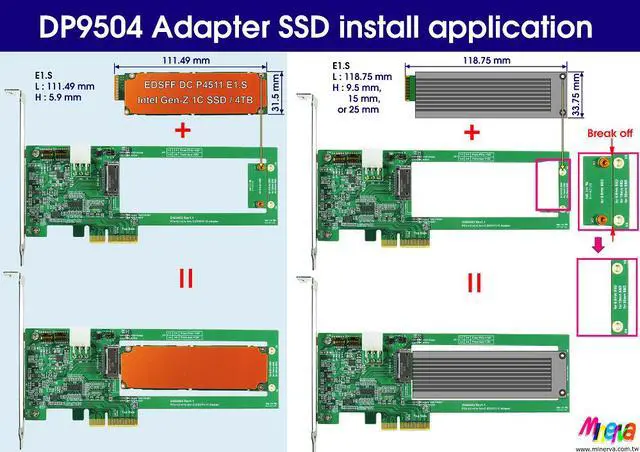

Supports the following form factor EDSFF 1C(Gen-Z) SSD :
* EDSFF 1C(Gen-Z) E1.S 5.9mm Height
* EDSFF 1C(Gen-Z) E1.S 9.5mm Height
* EDSFF 1C(Gen-Z) E1.S 15mm Height
* EDSFF 1C(Gen-Z) E1.S 25mm Height

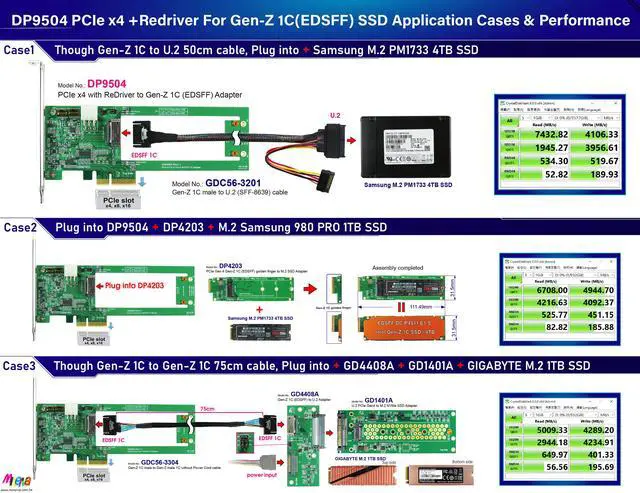

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
