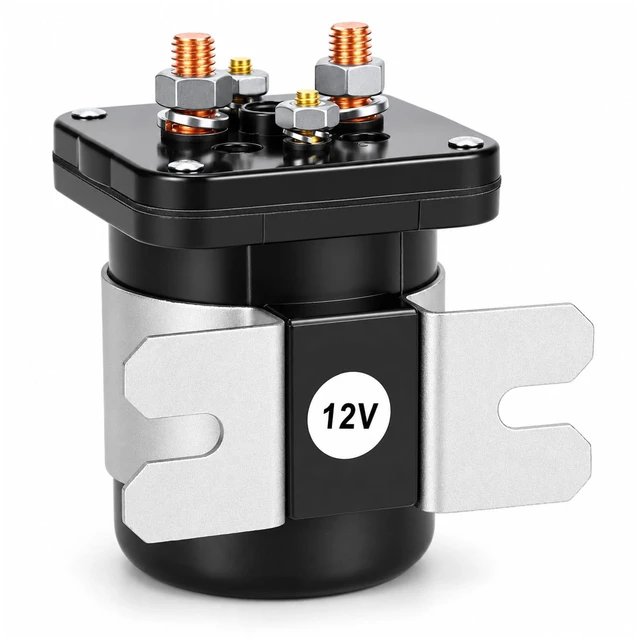

300Amp Battery Isolator Relay for Mobile Audio Relay 12V | 12V High Current Relay for RV Truck Marine Winch,Dual Battery Isolator Switch Prevent Battery Drain
- Item #: 9SIVVH3M964395
- Mfr. Part #: 902093337952
- Function: Preventing mutual charging and discharging losses between the main and auxiliary batteries due to voltage differences, and extending the lifespan of the entire battery pack

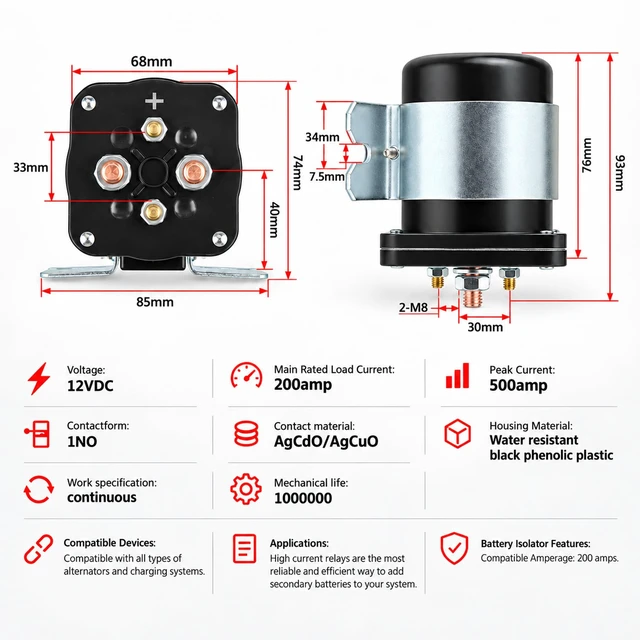

- Voltage: 12VDC/ Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power Handling: Continuous power handling of 200 amps/ Surge Power Handling: 300 amps
- Advantage: Does not create a voltage drop to the second battery like conventional isolators,reducing the natural consumption of batteries after power off, lengthens the life of the primary battery.

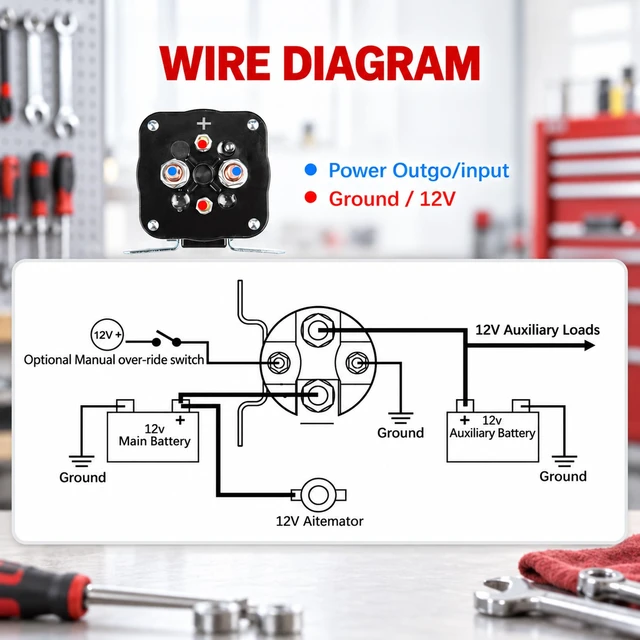

- Wrie Diagram : Connect the two small studs one to ground the other to an ignition on source from fuse box , the order on the large/ small studs does not matter
- Compatible: Perfect for any application with multiple batteries that need to be isolated including Marine, Mobile Audio, Off-Road, Power Sports, etc.
+
+
Overview
Specs
Reviews

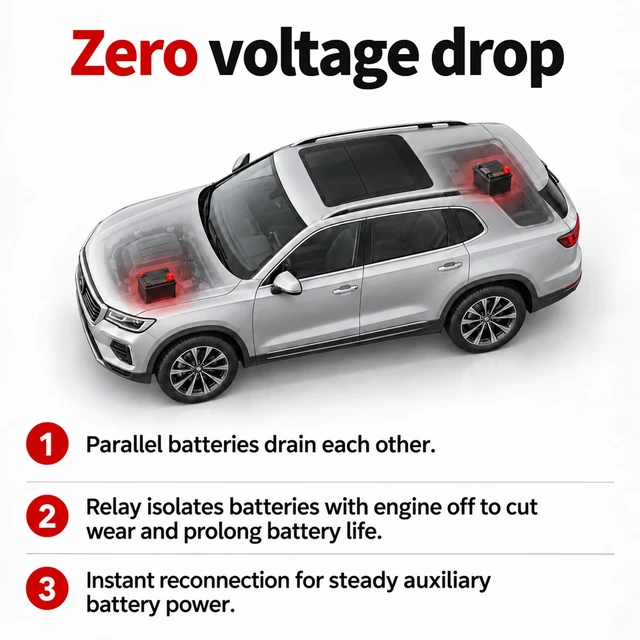

Function: An isolator is used to combine two batteries when a alternator is charging ( engine running) and isolate them when not charging ( engine off) so you can still start your vehicle Voltage: 12VDC/ Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power Handling: Continuous power handling of 200 amps/ Surge Power Handling: 300 amps Advantage: Does not create a voltage drop to the second battery like conventional isolators,reducing the natural consumption of batteries after power off, lengthens the life of the primary battery. Wrie Diagram : Connect the two small studs one to ground the other to an ignition on source from fuse box , the order on the large/ small studs does not matter handle high power demand, Provide better service, please contact us if you have any questions!
