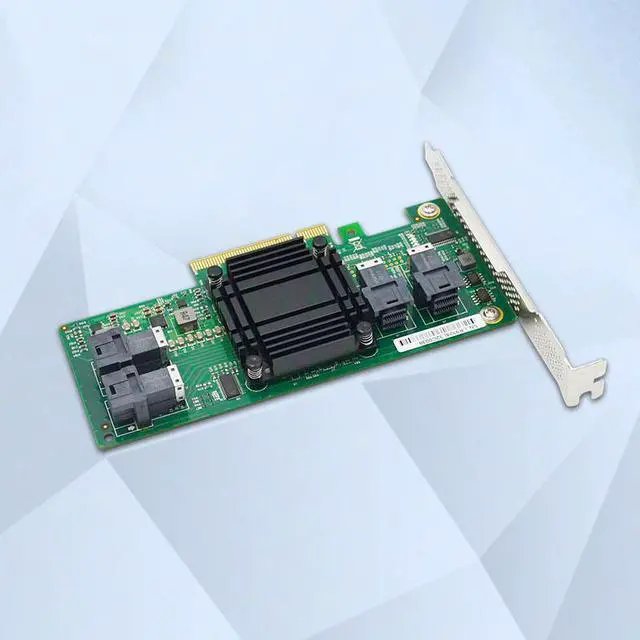

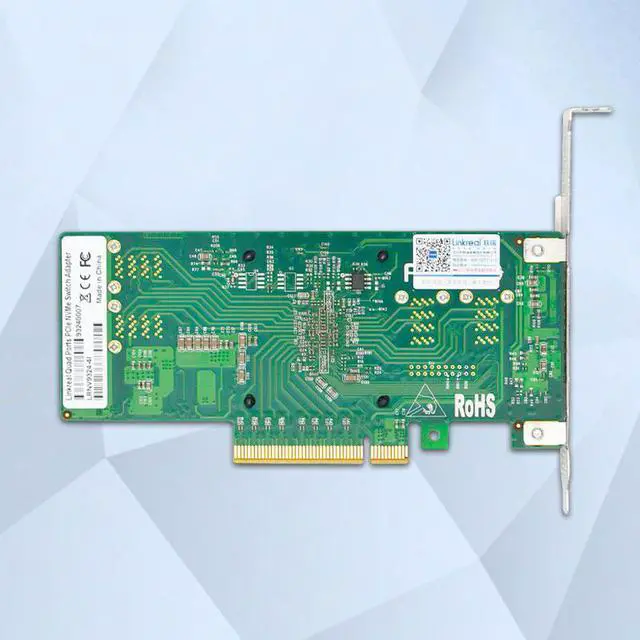

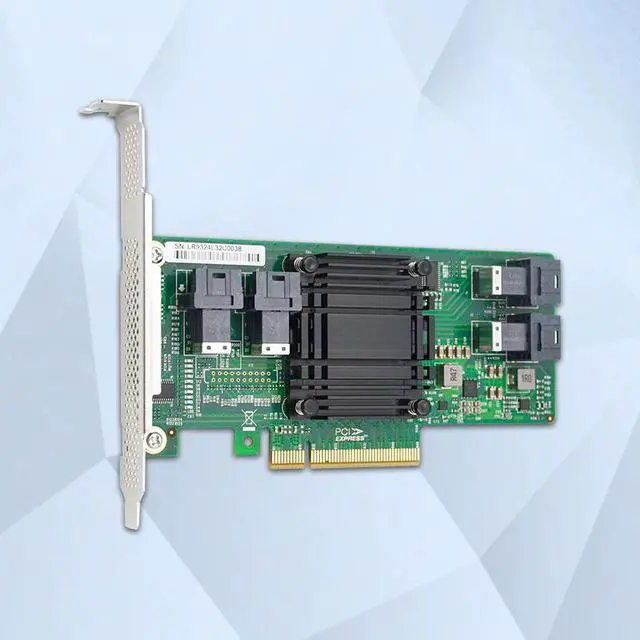

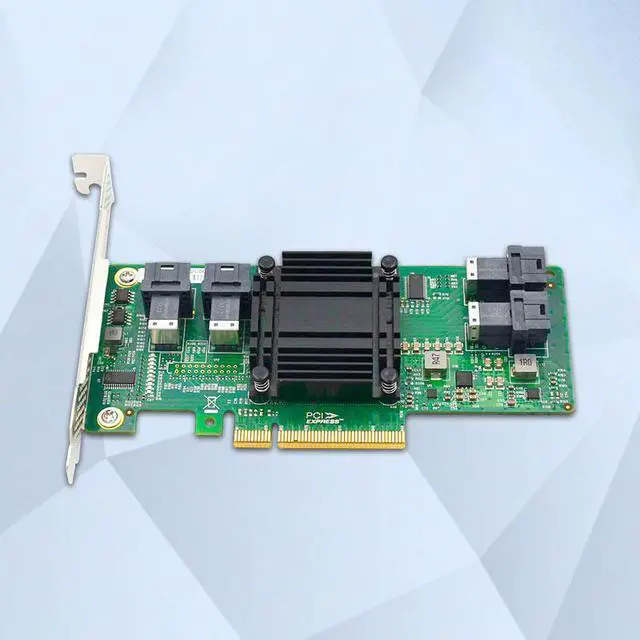

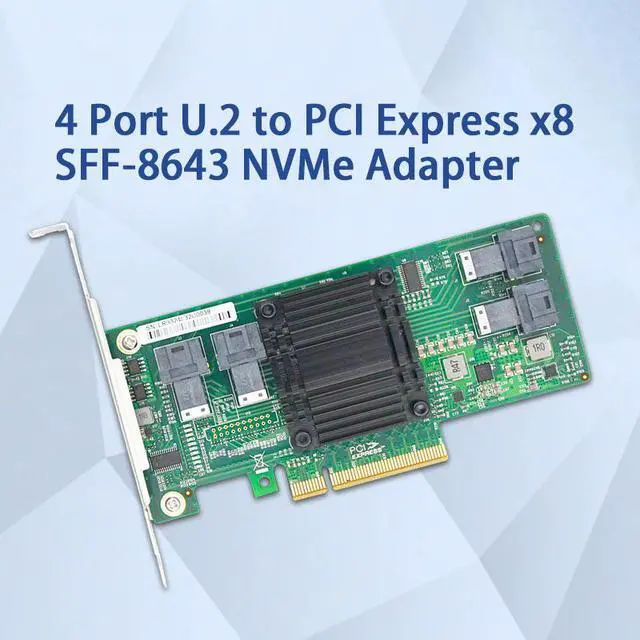

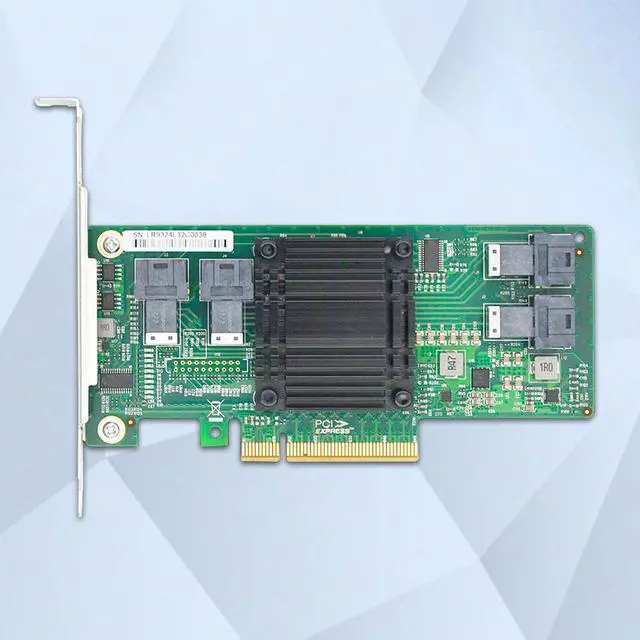

Linkreal 4 Port PCI Express x8 to U.2 NVMe SSD Adapter Riser Card with SFF-8643 Mini-SAS HD 36 Pin Connector and Chipset PLX8725 Support 2.5" U.2 NVMe SSD
- Product Model: LRNV9324-4I
- Product Name:4 Port PCIe 3.0 x8 to Internal SFF-8643 NVMe Adapter
- Chipset: PLX 8725
- Interface Type:4*SFF-8643 Connectors
- Support Equipment:4*NVMe SSD or PCIe adapter card
- Host Bus Type: PCIe 3.0 x8
+
+
Overview
Specs
Reviews
Description LRNV9324 NVMe Series is PCI Express x8 Gen3 Multi-Host PCIe switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.
Parameter Model: LRNV9324-4I
Number of drives: 4 internal
Controller Chip: PLX PEX 8725
Bus Type: PCI Express
Drive Connectors: SFF-8643 (36 pin, x8/16 PCIe Gen 3)
Host Connectors: PCI Express x8
Humidity: 15% ~ 90%
Opterating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to U. 2 NVMe SSD adapter has free lifetime technical support
Parameter Model: LRNV9324-4I
Number of drives: 4 internal
Controller Chip: PLX PEX 8725
Bus Type: PCI Express
Drive Connectors: SFF-8643 (36 pin, x8/16 PCIe Gen 3)
Host Connectors: PCI Express x8
Humidity: 15% ~ 90%
Opterating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to U. 2 NVMe SSD adapter has free lifetime technical support
