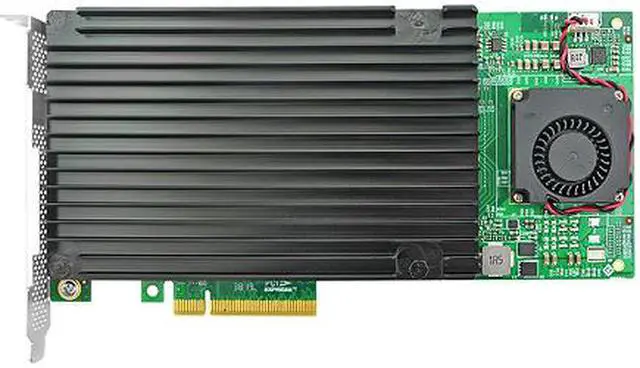

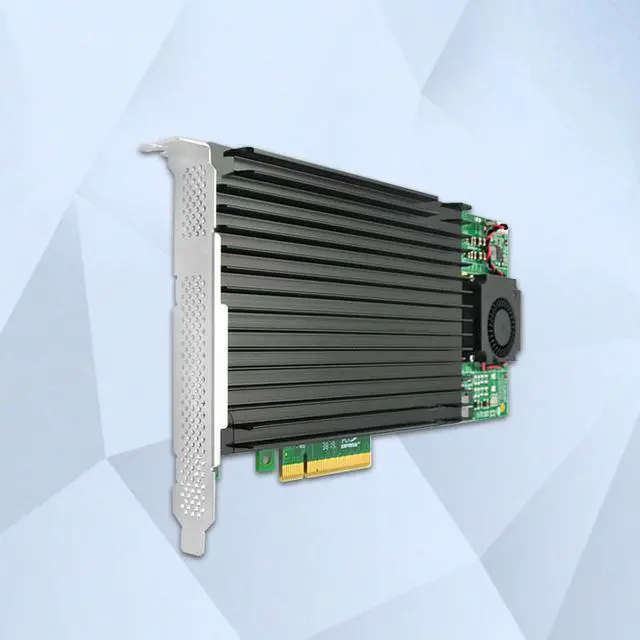

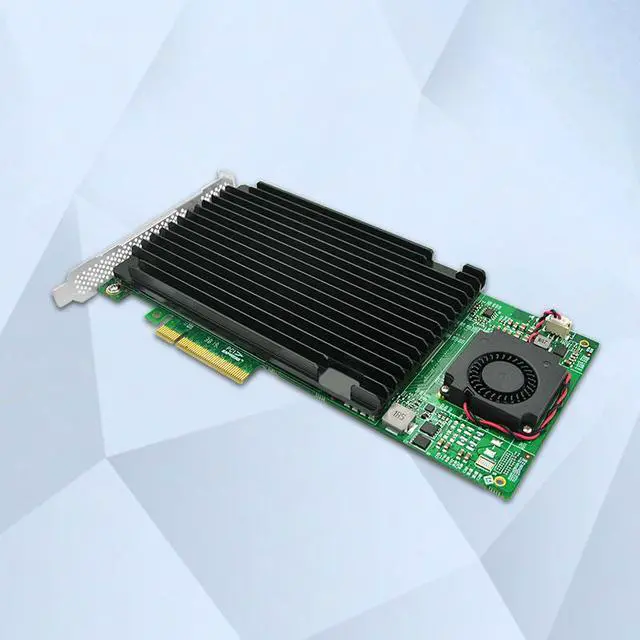

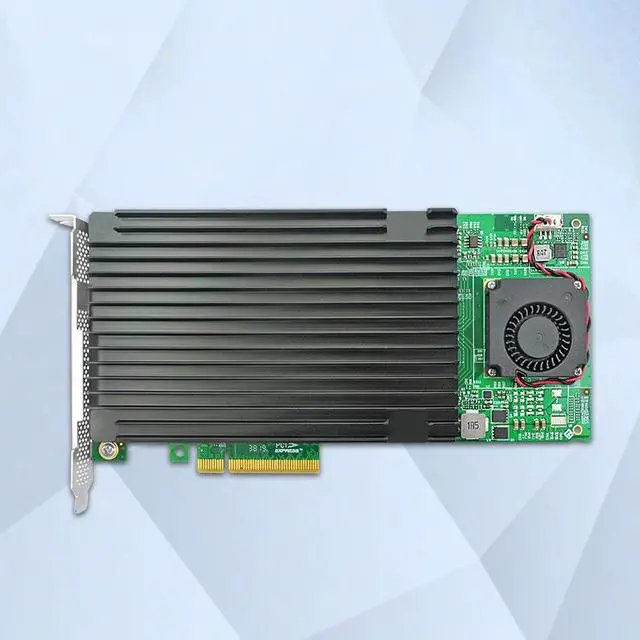

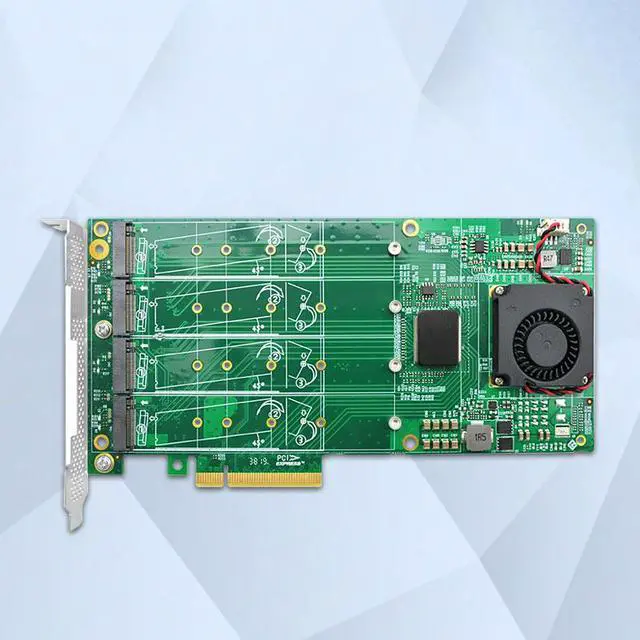

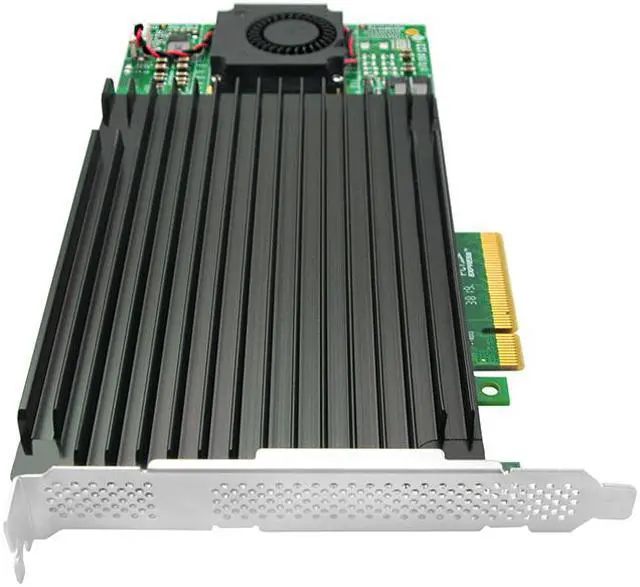

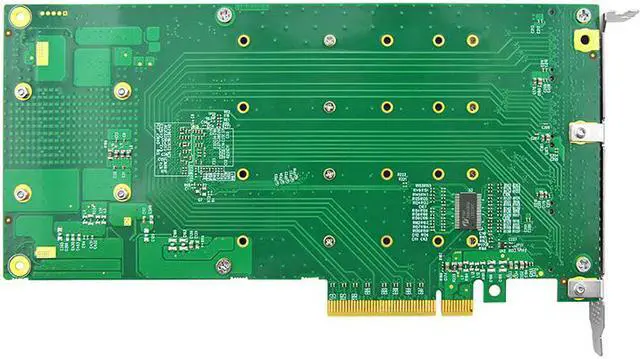

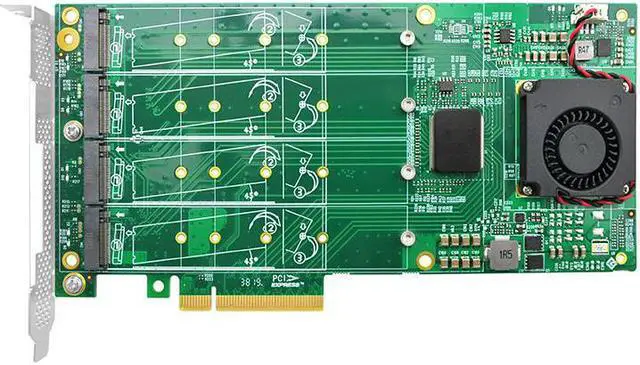

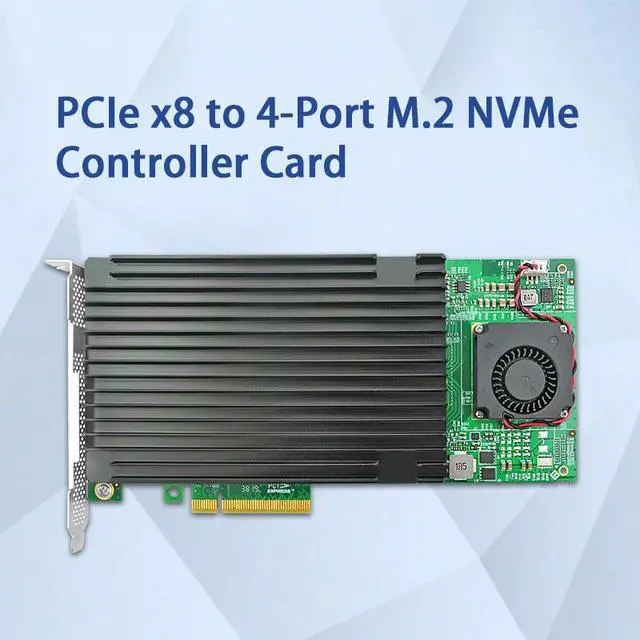

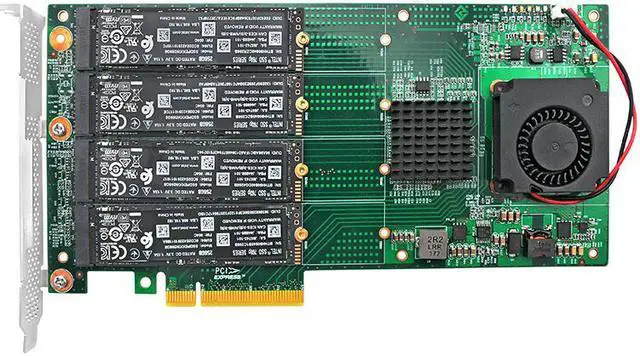

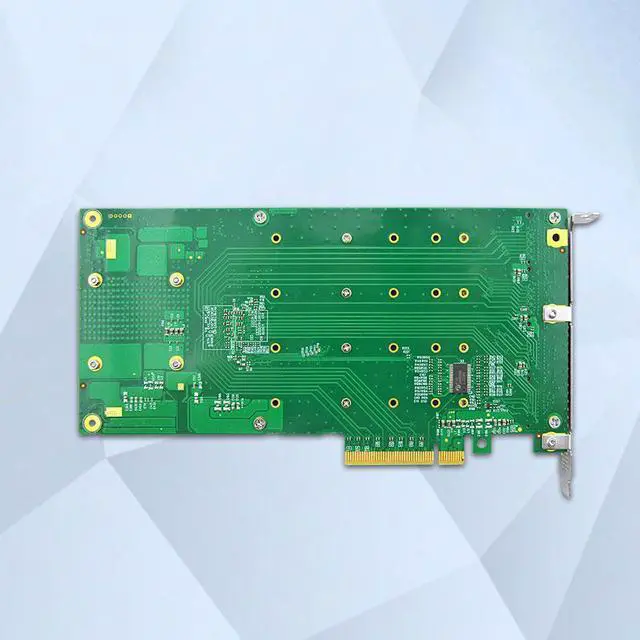

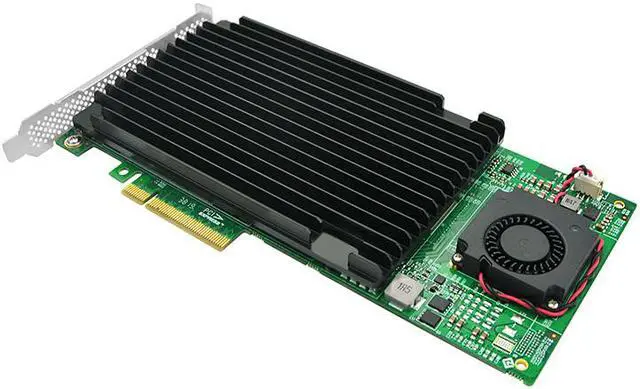

Linkreal PCI Express 3.0 x8 to 4 xM.2 NVMe SSD Adapter with Heatsink-LRNV9524-4I
- Product Model:LRNV9524-4I
- Product Name:Quad PCIe 3.0 x8 to M.2 NVMe SSD Adapter(Without SSD)
- Chipset: PEX8725
- Interface Type:4*M.2 Connectors
- Support Equipment:4*NVMe SSD for 2230, 2242, 2260, 2280 and 22110mm
- Host Bus Type:PCIe 3.0 x8
+
+
Overview
Specs
Reviews
Description: LRNV9524 offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.
Features: PCI Express basic Specification r 3.0 (compatible with w/ PCIe r 1.0 a 1.1 2.0 ) PCI power specificationr 1.2 Be compatible with microsoft Vista Support access control service Dynamic Link Width Control Dynamic Ser Des
Speed Control Parameter:
Model: LRNV9524-4I
I/O Controller: PLX
PEX8725 Bus Type: PCI Express 3.0 x8
Interface: M. 2 M
Key Connector Dimension: 210mm x 94mm
Weight: 260g
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F) WHAT'S IN THE BOX 1 - PCIe M. 2 SSD Adapter 1 - full-profile bracket (installed) 4 - screws&nuts for ssd 4 - screws for heatsink 1 - Warranty Card
Features: PCI Express basic Specification r 3.0 (compatible with w/ PCIe r 1.0 a 1.1 2.0 ) PCI power specificationr 1.2 Be compatible with microsoft Vista Support access control service Dynamic Link Width Control Dynamic Ser Des
Speed Control Parameter:
Model: LRNV9524-4I
I/O Controller: PLX
PEX8725 Bus Type: PCI Express 3.0 x8
Interface: M. 2 M
Key Connector Dimension: 210mm x 94mm
Weight: 260g
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F) WHAT'S IN THE BOX 1 - PCIe M. 2 SSD Adapter 1 - full-profile bracket (installed) 4 - screws&nuts for ssd 4 - screws for heatsink 1 - Warranty Card
