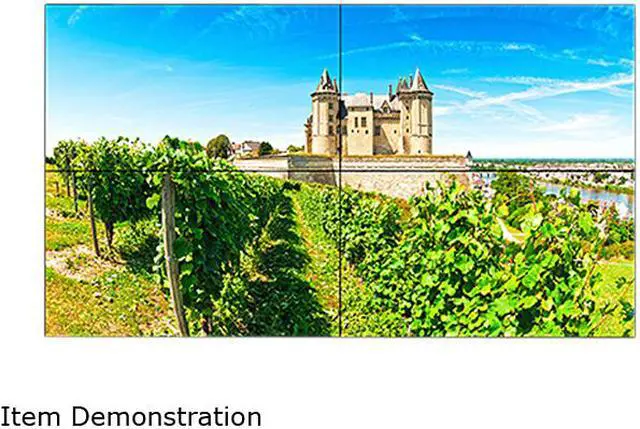

    NEC X464UNV-3 46" Ultra-Narrow 2x2 TileMatrix Video Wall Solution - X464UNV-TMX4P - Qty 4

    • Item #: 9B-86-587-026
    • Mfr. Part #: X464UNV-TMX4P
    • Bundled solution w/ everything required for a 2x2 video wall makes configuration & installation easy
    • Pull-out mount allows for full-service capabilities & 6-axis adjustment for perfect alignment
    • Direct LED backlighting technology improves power consumption & uniformity
    • Overnight onsite exchange warranty ensures minimum downtime for maximum impact
    • Auto ID feature reduces install time in the single press of a button
    • Expanded daisy chain options w/ DP1.2 enables 4K resolution
    • Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
    • Dual slot technology allows for the integration of single board computers & other option slot products
    • Near field communication capabilities for setup & service
    • Bundled w/ (4) ONSTEMN-3Y-14 warr, (4) 3M DP cables, 25ft cat5e patch cable, 2 x 2 pull-out fully adjustable mounting system, (2) Tripp Lite ISOBAR6 Surge Suppressor, Overframe Bezel Kit, Color Calibration Kit, & IR/Remote Kit
    • Landscape/Portrait
    +
    +
    Overview
    Specs


    Professional-Grade Display Bundle with Pull-out Mounting System
    NEC 2x2 LCD TileMatrix™ Video Wall Solutions


    NEC Display Solutions' complete 2x2 LCD TileMatrix Video Wall Solutions provide an all-in-one, easy-to-configure solution that is ideal for dynamic digital signage, information display and command & control applications.

    Exclusive TileMatrix and TileComp™ technologies, combined with the ultra narrow bezel design of the NEC 46" X464UN, X464UNV, X464UNS, 55" X554UN, X554UNV and X554UNS and the full adjustment capabilities of the Peerless-AV DS-VW765-LAND mount, provide for a near seamless video wall that is easy to configure, install and maintain. These bundles also offer 24/7 run times with industrialgrade panels that feature internal temperature sensors and integrated cooling fans. The ultra narrow bezel of the X series models offer down to 3.5mm between consecutive displays and built-in Auto TileMatrix capabilities ease installation and set up capabilities.



    Highlights

    X-Series
    • Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
    • Direct LED backlighting improves power consumption and uniformity
    • Peerless-AV pull-out mount allows for full service capabilities and 6-axis adjustment for perfect alignment
    • NEC Display Wall Calibrator Kit features software and a sensor, allowing for accurate brightness intensity and white point matching from screen-to-screen for greater overall color uniformity
    • Auto ID and Auto TileMatrix technology is integrated into each NEC display within the bundle, allowing for easy manipulation of a single picture to 2x2 format
    • TileComp works in tandem with TileMatrix to compensate for the bezel width and create a more seamless video wall
    • DisplayPort 1.2 Multistream functionality through integrated daisy chain allows for UHD (3840 x 2160) resolution across the entirety of the wall
    • Ultra Narrow Bezel design provides for some of the smallest bezel widths in the industry
    • Industry's most extensive display control, including RS-232, Ethernet connectivity, NaViSet software and DDC/CI standard
    • 24/7 runtimes due to professional grade panels and integrated heat dissipation technologies
    • Fan-based technology connected to internal heat sensors automatically turns on when temperatures reach certain thresholds. Designed to work in both portrait and landscape orientations, these fans can be always on or controlled remotely.
    • Overframe Bezel Kit completes your solution by offering a "finished & framed" look (two kits included)
    • Remote Control and Human/Ambient Light Sensor Kit provides the entire video wall with one sensor that detects ambient light, allows for human sensing capabilities and delivers simple remote control functionality
    • Tripp Lite surge suppressor features six outlets and prevents crashes, reboots and performance problems



    NEC 2x2 LCD TileMatrix Video Wall Solutions

    MODEL X464UNV-TMX4P X464UN-TMX4P X464UNS-TMX4P X554UNV-TMX4P X554UN-TMX4P X554UNS-TMX4P
    LCD MODULE
    Viewable Image Size 46" 55"
    Native Resolution 1920 x 1080
    Brightness (Typical/Max) 350 / 500 cd/m2 500 / 700 cd/m2 450/ 500 cd/m2 500 / 700 cd/m2
    Contrast Ratio (Typical) 3500:1
    Net Weight (per display) 50.3 lbs. / 22.8kg 50.7 lbs. / 23 kg 45.0lbs / 20.4kg 57.1lbs / 25.9kg 64.64 lbs. / 29.2 kg 61.5 lbs. / 27.9 kg
    Bezel gap (between displays) 5.7mm 5.7mm 3.5mm 3.5mm 5.5mm 3.5mm
    X-Series

    Input Panel

    1. Vacation Switch
    2. External Speaker Terminal
    3. Internal/External speaker switch
    4. Audio Mini Jack Out
    5. USB Service Port
    6. LAN Ports
    1. Audio Mini Jack In
    2. RS-232C In
    3. Remote In
    4. VGA D-Sub In
    5. DisplayPort In/Out
    6. HDMI In
    7. DVI-D In

    Third Party Components

    X-Series Tripp Lite surge suppressor - Qty. 2

    • Features six outlets/6-ft. cord
    • $50,000 Ultimate Lifetime Insurance (US/CDN)
    • Network grade surge suppression rated at 2350 joules/97,000 amps
    • Prevents system crashes, reboots and performance issues
    • Keyhole mounting tabs allow permanent installation
    • Lighted power switch confirms power on/off status
    • Widely spaced outlets accommodate up to four large transformer plugs without blocking outlets


    X-Series Peerless Pull-Out Mount* - Qty 4

    Peerless-AV full-service video mount (DS-VW765 LAND) features customizable wall spacers for perfect placement and a pull-out/prop-open mechanism for quick serviceaccess.



    NEC Accessories

    KT-55UN-OF2 - Qty. 2

    Overframe Bezel Kit that creates a uniform and finished look for X554UNS/X554UNV video walls



    KT-46UN-OF2 - Qty. 2

    Overframe Bezel Kit that creates a uniform and finished look for X464UN video walls



    KT-46UN-OF3 - Qty. 2

    Overframe Bezel Kit that creates a uniform and finished look for X464UNV video walls



    KT-55UN-OF - Qty. 2

    Overframe Bezel Kit that creates a uniform and finished look for X554UN video walls



    KT-46UN-OF4 - Qty. 2

    Overframe Bezel Kit that creates a uniform and finished look for X464UNS video walls



    KT-LFD-CC - Qty. 1

    Display Wall Calibration Kit includes the calibration software on a USB drive and a color sensor, a version of the DataColor Spyder 4 Series



    KT-RC2 - Qty. 1

    Remote Control and Human/Ambient Light Sensor Kit maximizes brightness efficiency and power usage for video wall products.




    Included Cables

    Display Port Cables - Qty. 4

    1.8m DisplayPort 1.2 cables used for daisy chaining video signal through the video wall (included with display box)


    LAN Cables - Qty. 4

    LAN cables for control daisy chain between consecutive displays (included with display box)


    Long LAN Cable - Qty 1

    25ft cat5e snagless UTP patch cable for control connection from source to the first monitor




    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years

    Return Policies

    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
    • This item is covered by NeweggBusiness.com's Replacement Only Return Policy.
    • Read full return policy for details.
