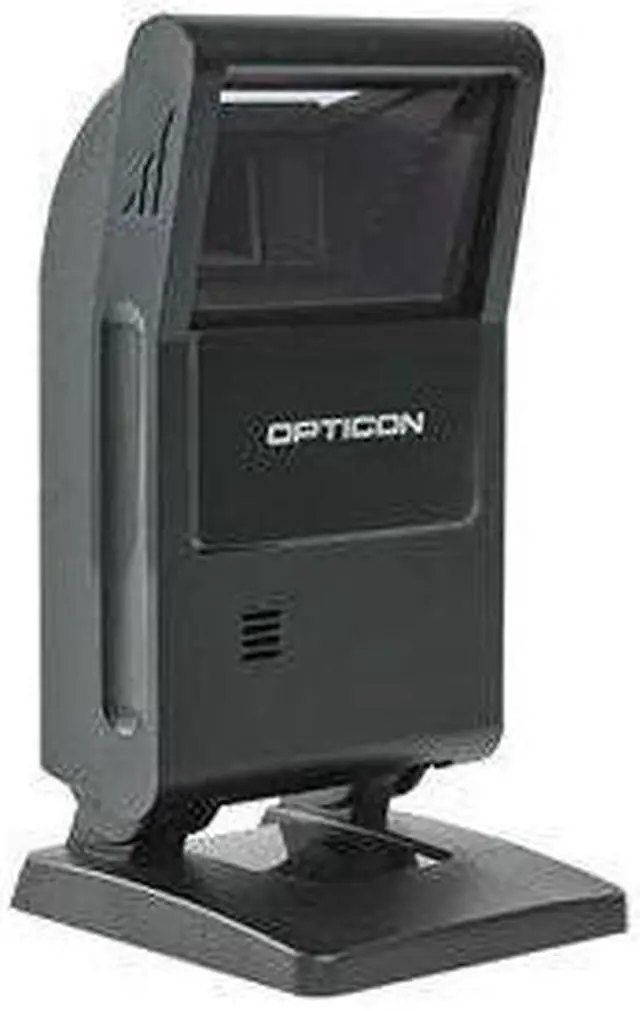

Opticon M10BU1S-00 M-10 Scanner, USB(HID), BLACK
- 2D CMOS imager
- Scanner Only
- USB
- Color: Black
+
+
Specs
Reviews
Learn more about the Opticon Inc. M-10
| Brand | Opticon |
|---|---|
| Model | M-10 |
| Part Number | M10BU1S-00 |
| Form Factor | In Counter |
| Connectivity | Corded |
| Scan Engine | 2D CMOS Imager |
| Included Cables | Scanner Only - No Cable |
|---|---|
| Interfaces Supported | USB: Full-speed 12Mbps (HID/COM) |
| Light Source | 2 Red LEDs Aiming and auto trigger activation light source - 1 green LED |
|---|---|
| Imager Field of View | Horizontal 40.6°, vertical 26.4° |
| Depth of Scan Field | PDD417 Res. 0.169 15-70, Res. 0.254 0-120, QR code Res. 0.212 35-55 Res. 0.381 0-125 Datamatrix Res.0.254 20-85 |
| Yaw | ±50 degree |
| Color | Black |
|---|---|
| Dimensions | 5.47" x 2.99" x 2.76" |
| Weight | 0.55 lb. |
| Features | Operating Indicators Visual: 2 LEDs (green/blue/orange) Audible: Buzzer 2D Imager Optics: Scan Method: WVGA CMOS are sensor 752x480 pixels Scan Rate: Up to 60 fps Image format: Windows Bitmap, JPEG Reading pitch angle: ca 50° Min Resolution – PDF: 0.169 mm QR Code: 0.212 mm DataMatrix: 0.212 mm Supported Symbologies: Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS Barcode (2D): Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code Barcode (Postal Codes): Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET Durability Temperature: Operation: 23 to 113 °F (-5 to 45 °C) Storage: -4 to 140 °F (-20 to 60 °C) Humidity: Operation: 20 - 85% (noncondensing) Storage: 20 - 90% (non-condensing) Ambient Light Immunity: Fluorescent: ~ 10,000 lx or less Sunlight: ~ 100.000 lx or less Antistatic Electricity: 15kV (non-destructive) Vibration Test: 10 - 100 Hz with 2G for 3 hours Protection Rate: IP 52 |
|---|---|
| Drop | 5 ft (1.5 m) onto concrete surface |
| First Listed on Newegg | November 13, 2024 |
|---|
