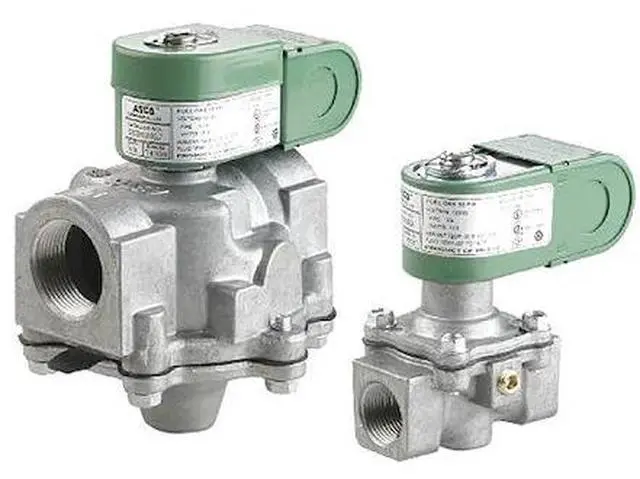

ASCO S262SH02N3GJ7 Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/4 in

The ASCO S262SH02N3GJ7 is a 2-way, pilot-operated solenoid valve designed for control of commercial and industrial gas burners. It features a normally open vent valve type with an aluminum body and NBR seal material. The valve operates on 120/60V AC power with a coil wattage of 15.4 W and includes the coil and seals. Environmental rating: Indoor, Outdoor. Media: gas (air and inert gases) with a maximum fluid temperature of 140°F and a maximum operating pressure differential of 25 psi for air and inert gases. Ambient temperature range: -40°F to 160°F and a response time of 1 second.

Key Features:

• - Body Material: Aluminum
• - Seal Material: NBR
• - Valve Type: Vent
• - Valve Ways: 2-Way
• - Valve Starting Configuration: Normally Open
• - Operation Type: Pilot Operated
• - Nominal Pipe Size: 1-1/4 in
• - Orifice Diameter: 1 to 5/8 in
• - Coil Enclosure: General Purpose, With Junction Box
• - Coil Insulation Class: F
• - Electrical Connections: 7/8 in Knockouts
• - Environmental rating: Indoor, Outdoor
• - Frequency: 60 Hz
• - Voltage: 120/60V AC
• - Wattage: 15.4 W
• - Operating Pressure Differential - Maximum: 25 psi Air/Inert Gas
• - Operating Pressure Differential - Minimum: 0 psi
• - Fluid Temperature - Maximum: 140°F
• - Ambient temperature range: -40°F to 160°F
• - Includes: Coil and Seal
• - Response Time: 1 sec
• - Gas Capacity: 1,941,100 BtuH
• - Application: For Control of Commercial and Industrial Gas Burners
• - Dimensions: Overall Height 6-3/4 in; Overall Length 5 in; Overall Width 5-3/8 in
• - Pipe Center Size: 3-7/16 in; Inlet and Outlet Connection Type: NPTF
• - Standards: CSA, FM, UL
• - NEMA Enclosure Rating: 1
