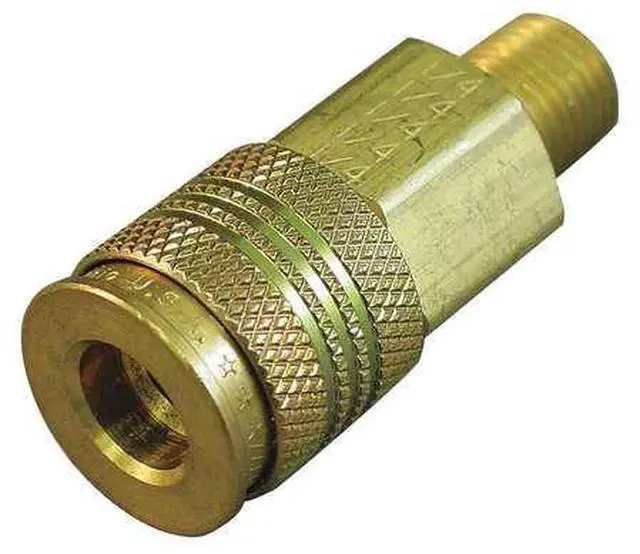

HANSEN B23AS25M Coupler Body,(M)NPT,1/4,Brass

The HANSEN - B23AS25M is a hose coupling for push-to-connect connection and disconnection without tools. It supports applications in construction, air tools, and general pneumatics. Constructed from brass with a zinc-plated finish, this coupling features a male hose fitting with a 1/4 in size and an NPT connection type. It includes a poppet valve and utilizes a push-to-connect locking mechanism, provides a sealed connection for air or fluid lines when used with compatible couplings and within the specified pressure and temperature ranges. The coupling is compatible with AR0210, Industrial Interchange, and Tru-Flate systems.

Key Features:

• - Material: brass with zinc-plated finish.
• - Connection type: 1/4 in male NPT thread with a 1/4 in coupling size.
• - Coupling component: Socket with push-to-connect locking mechanism.
• - Includes an integrated poppet valve to control flow.
• - Maximum flow rate: 792 L/min (when used under conditions that meet the specified operating parameters).
• - Maximum working pressure: 150 psi at 70°F.
• - Operating temperature range: -40°F to 250°F.
• - Seal material: Nitrile.
• - Overall length: 2.25 inches; maximum outside diameter: 15/16 inch.
• - Compatible with AR0210, Industrial Interchange, and Tru-Flate couplings.
