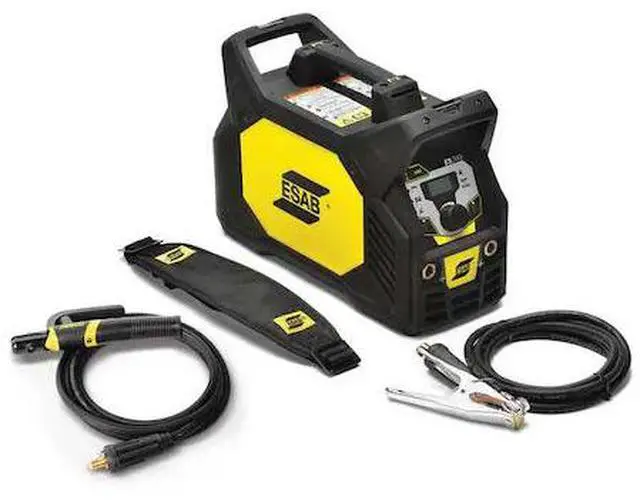

ESAB 0445100881 TIG Welder, Renegade ES 300i, 5 to 300 A, DC,

The ESAB Renegade ES 300i (model 445100881) is a TIG welder power source that supports TIG (GTAW) and Stick (SMAW) welding in CC mode with DC polarity. It delivers 5300 A output, a rated output of 300 A @ 32 V (60%), and operates on 208V AC or 460V AC input with single- or three-phase capability.

Key Features:

• - Item: TIG Welder, Series Renegade ES 300i, Model 445100881
• - Welding processes: TIG (GTAW) and Stick (SMAW)
• - Amperage range: 5 to 300 A; welder min/max output amps 5300 A
• - Rated output and duty: 300 A @ 32 V, 60%; overall welder duty cycle listed as 40%
• - TIG output @ duty cycle: 200 A @ 18 V (100%), 250 A @ 20 V (60%), 300 A @ 22 V (40%)
• - Stick output @ duty cycle: 200 A @ 28 V (100%), 250 A @ 30 V (60%), 300 A @ 32 V (40%)
• - Input voltage/frequency/phase: 208V AC, 460V AC; 50/60 Hz; single- or three-phase
• - Max input current: 200 A at 230460 VAC (1); 300 A at 230460 VAC (3)
• - Polarity and welding mode: DC polarity, CC (constant current) mode
• - Materials and thickness: Aluminum 0.012 in to 3/8 in; Mild Steel 0.004 in to 3/8 in; For material type: Mild Steel, Stainless Steel
• - Physical: weight 33 lb; overall dimensions 7.91 in W x 18.5 in D x 12.61 in H; color Yellow
• - Power and connections: power cord included (10 ft); plug type bare leads; power source only (remote control not included)
• - Features: Digital readout display, integrated latch system, intuitive interface, rugged case, small form factor, three-handle design
• - Standards and classification: CSA, CE; industrial class Medium
