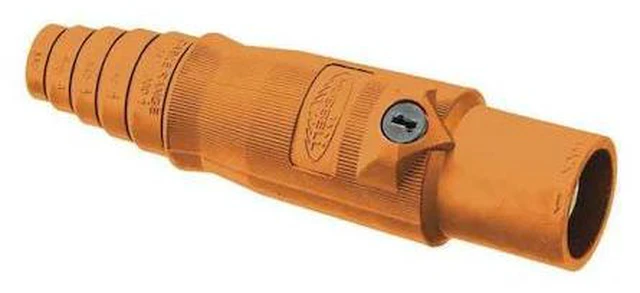

HUBBELL WIRING DEVICE-KELLEMS HBL400MO Single Pole Inline, 400 A, Male, Orange

The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose end with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and the contact material is brass, rated for operation at currents up to 400 A and voltages up to 600V AC or 250V DC.

Key Features of the HUBBELL Series 16 Single Pole Male Connector:

• Amperage Rating: Rated for up to 400 A (AC/DC)


• Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG


• Contact Material: Brass single cam contacts


• Terminal Connection Type: Double set screw design


• Housing Material: Thermoplastic elastomer construction


• NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements


• Voltage Rating: Up to 600V AC / 250V DC maximum


• Industry Standards: UL Listed; cUL Listed; ANSI/NFPA70; National Electric Code (NEC); UL Enclosure Types compliance


• Compatible With: Series 15, Series 16, Insulgrip devices
