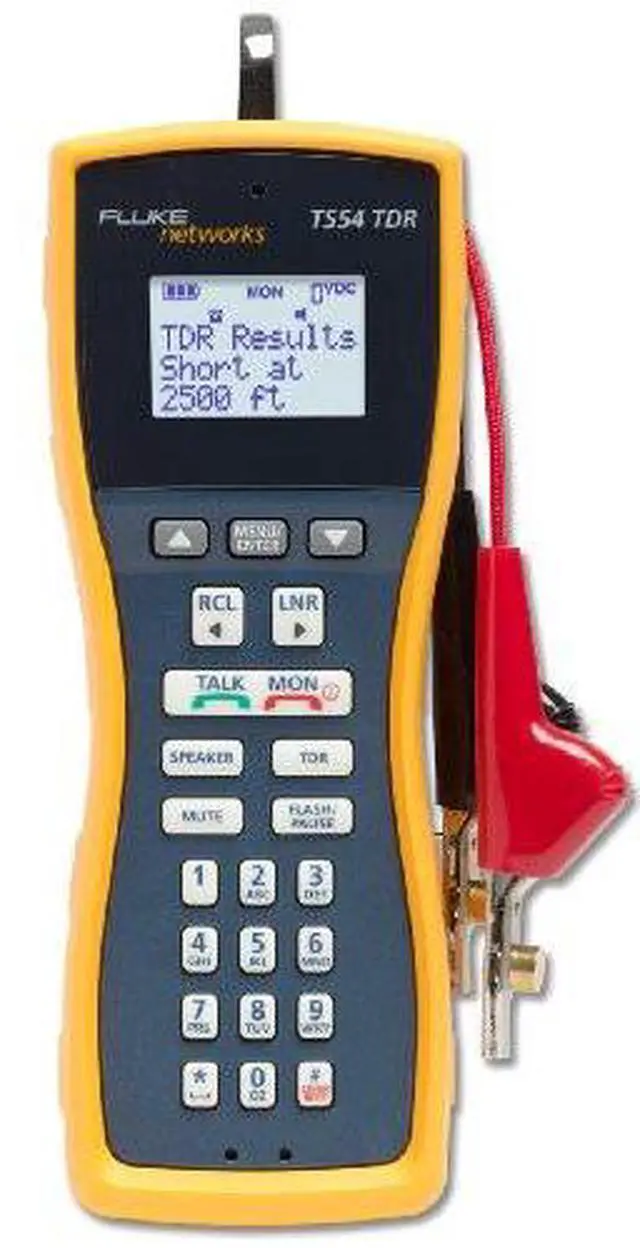

TS54 PRO LCD BUTTON TEST SET
- Item #: 9SIVH73KPM7166
- Mfr. Part #: TS54-A-09-TDR
- UNSPSC: 20121900
- Find cable length measurement and locate faults on virtually all types of cable
- Short the correct pair and tone changes
- Data indication
- Voltage/Current indication/measurement
+
+
Overview
Specs
Reviews
The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There's nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier-everything you need is in one newly redesigned and compact test set-that's a 62% weight reduction and a 20% cost reduction over existing products.
The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.
Fluke Networks Test set is perfect for voice/data/video and communication service provider technicians and features caller ID with call waiting CID that verifies functional service.
Fluke Networks Test set features DTMF digit grabbing that isolates faulty customer premise equipment. Set has voltage indication/measurement that identifies potential line problems with data indication which warns when data is present on the line.
Display type: Extra-large, backlit LCD screen.
Two-way, hands-free speakerphone.
Current range: 10 - 100 mA.
AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm.
Pulsing rate: 10 pps +/- 1 pps, Break/make ratio: 60/40, Interdigit interval: greater-than300 ms, Resistance during break: greater-than100 kOhm.
Tone frequency error: +/- 1.5% maximum, Tone level: -3 dBm combined (typical), High versus low tone difference: 2 dB +/- 2 dB.
Memory capacity: 9 speed dial memories of 23 digits, plus one last number redial memory, PBX pause duration:-user programmable, default of 4 seconds, hook flash duration:user programmable, default of 500 ms.
Voltage range: 4 - 140 VDC.
Current range: 0 - 100 mA.
TDR range: 3000', Accuracy: +/-2 m, +/- 5 %.
Frequencies: Steady tone: 950 Hz, Alternating tones: 950 Hz and 1480 Hz.
Battery type: 9 V alkaline battery.
Dimensions: 8.3" x 3.2" x 2.6".
Detects dial tone, places and receives calls, polarity.
Compliant and standards: ANSI/ISA 82.02.01 (61010-1) 2004, CAN/ CSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010.
Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment.
Sold as 1 Each.
Fluke Networks Test set features DTMF digit grabbing that isolates faulty customer premise equipment. Set has voltage indication/measurement that identifies potential line problems with data indication which warns when data is present on the line.
Display type: Extra-large, backlit LCD screen.
Two-way, hands-free speakerphone.
Current range: 10 - 100 mA.
AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm.
Pulsing rate: 10 pps +/- 1 pps, Break/make ratio: 60/40, Interdigit interval: greater-than300 ms, Resistance during break: greater-than100 kOhm.
Tone frequency error: +/- 1.5% maximum, Tone level: -3 dBm combined (typical), High versus low tone difference: 2 dB +/- 2 dB.
Memory capacity: 9 speed dial memories of 23 digits, plus one last number redial memory, PBX pause duration:-user programmable, default of 4 seconds, hook flash duration:user programmable, default of 500 ms.
Voltage range: 4 - 140 VDC.
Current range: 0 - 100 mA.
TDR range: 3000', Accuracy: +/-2 m, +/- 5 %.
Frequencies: Steady tone: 950 Hz, Alternating tones: 950 Hz and 1480 Hz.
Battery type: 9 V alkaline battery.
Dimensions: 8.3" x 3.2" x 2.6".
Detects dial tone, places and receives calls, polarity.
Compliant and standards: ANSI/ISA 82.02.01 (61010-1) 2004, CAN/ CSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010.
Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment.
Sold as 1 Each.
