AC/DC Digital Clamp Meter 6000 Counts True RMS Auto Range NCV AC DC Current Voltage Resistance Capacitance Frequency Diode Temperature Measure Tester, Backlight LCD Display Flashlight
- Multifunctional Clamp Meter with True RMS: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, diode test, capacitance and resistance measurement. Automatically ranging true mean squared (TRMS) technology for increased accuracy.

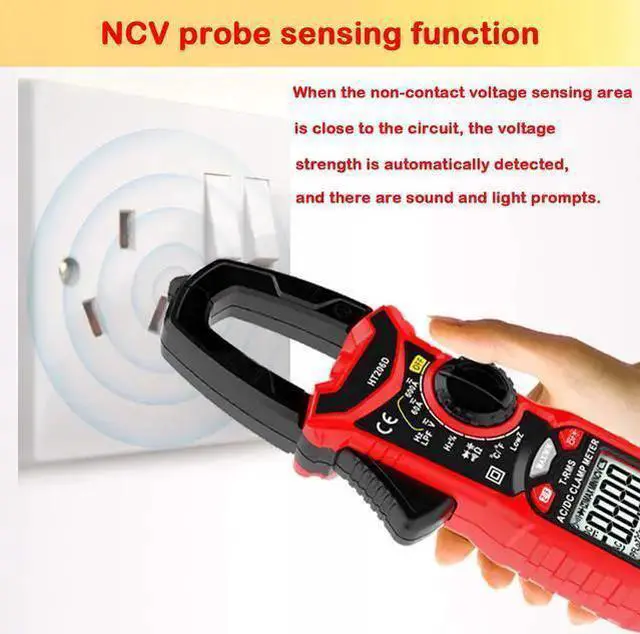

- NCV Function & LPF Function: Non-contact voltage detection function with a sensor to detect voltage and avoid electric shock without touching any wires. LPF function filters out the influence of high-frequency signal on the measurement results, so that the multimeter can measure more electrical parameters.
- Temperature Measurement & Other Functions: With temperature measurement function that can be used for HVAC system inspection. With large LCD backlight display and data hold function, convenient to read data in dark. Additional features such as auto range, low battery indication, auto power off.
- Jaw Opening: The clamp measures the AC DC current in a conductor up to 25mm without interrupting the circuit.
- Power: 2 x AAA 1.5V Battery (Not Included).
+
+
Overview
Specs
Reviews (1)
This high-performance digital clamp meter makes your work easier, more efficient and safer. Measurable AC/DC voltage, AC/DC current, frequency, duty cycle, resistance, temperature, diode, continuity, NCV, etc. And there are more functions like last data hold, flashlight, Max./Min.
Features:
Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.
It features hold result and max value buttons that makes it quicker and easier to use.
A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.

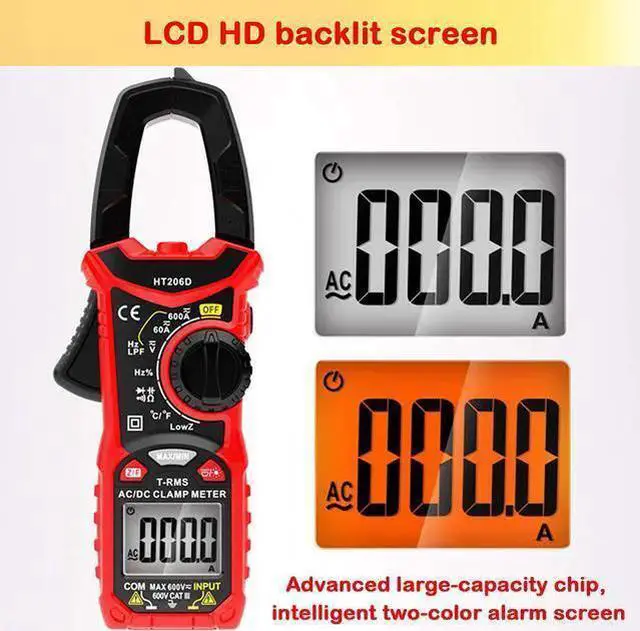

LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.

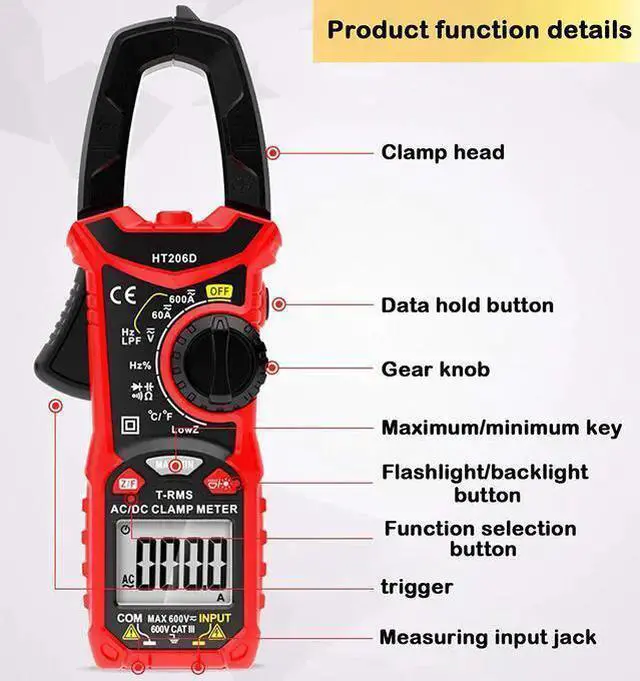

Hold & Backlight Button: The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
Auto Power Off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
Multifunctional: Accurate AC/DC Voltage, AC/DC Current, Frequency, Duty Cycle, Capacitance, Resistance, Temperature, Diode, Continuity, NCV, etc.
Ideal for home and professional use, automotive, home and industrial electrical troubleshooting.
Specifications:
Color: Black & Red
Model: HT206D
Display Count: 6000
AC Current (A): 6A/60A/600A ±( 2.5 %+5)
AC Voltage (V): 6V/60V/600V ±( 1.0 %+3)
DC Current (A): 6A/60A/600A ±( 2.5 %+5)
DC Voltage (V): 600mV/6V/60V/600V ±( 0.5 %+3)
Resistance (O): 600O/6kO/60kO/600kO/6MO/60MO ±( 1.0 %+3)
Capacitance (F): 10nF/100nF/1µF/10µF/100µF/1mF/10mF/100mF ±( 4.0 %+3)
Frequency (Hz): 10Hz~10MHZ ±( 0.5 %+5)
Temperature: -20°C-1000°C/-4°F-1832°F
Continuity Buzzer: Yes
LCD Backlight: Yes
Data Hold: Yes
Diode Test: Yes
NCV: Yes
Flashlight: Yes
DCA ZERO: Yes
True RMS: Yes
LPF: Yes
Max/Min: Yes
Lowz: Yes
Auto Range: Yes
Low Battery Indication: Yes
Auto Power Off: Yes
Over Range Indication: Yes
Power: 2 x AAA 1.5V Battery (Not Included)

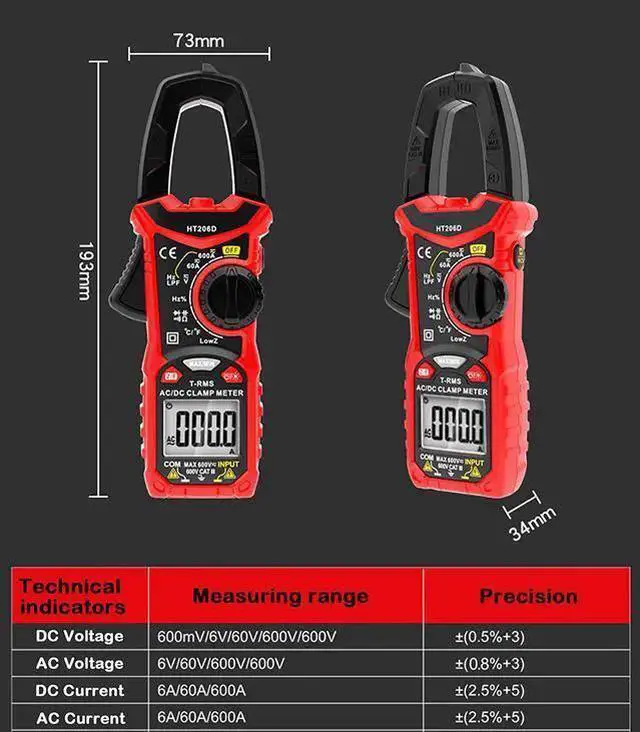

Size of Digital Clamp Meter: 193x73x34mm/ 7.6 x 2.87 x 1.34 in
Weight of Digital Clamp Meter: 187g/ 6.55 oz
Package:
1 x Digital Clamp Meter
2 x Test Pens
1 x Pouch
1 x User Manual
