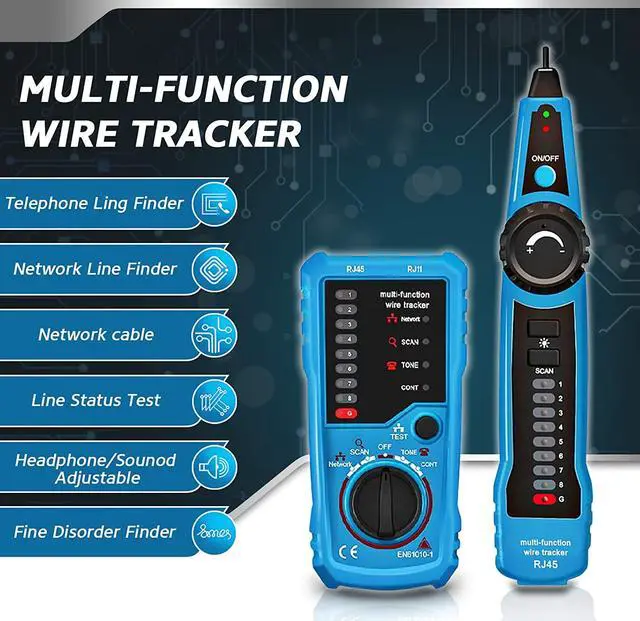

Wire Tracker, RJ11 RJ45 Cable Tester Line Finder Multifunction Wire Tracker, Telephone Line Tester, Toner Ethernet LAN Tester for Network Cable Collation, Continuity Checking
- Item #: 9SIV36AKBN0093
- Mfr. Part #: SL-GBR46-1

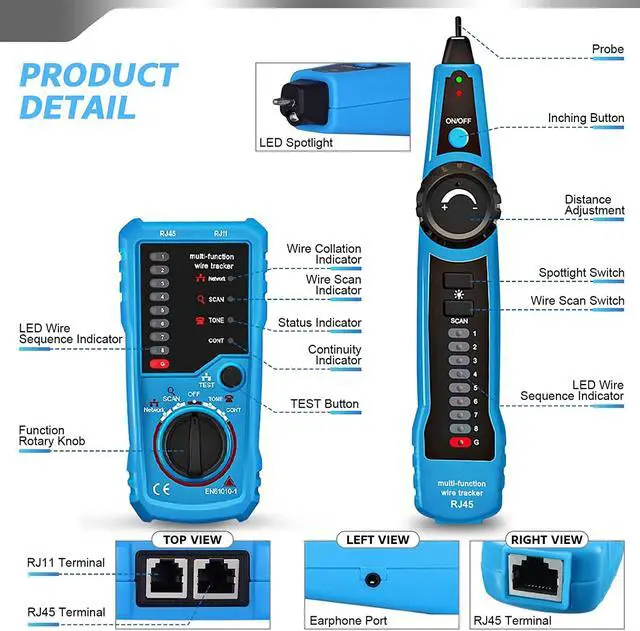

- Wire Tracker - It can help you quickly find the target line in many pairs. It is suitable for tracking RJ45 internet cable, RJ11 telephone line, and other metal wires in low electricity. Note: maximum currents for emitter and receiver are 10mA and 30mA respectively, and maximum voltage is 10V. TONE and CONT indicators do not indicate the working status but the measuring result.

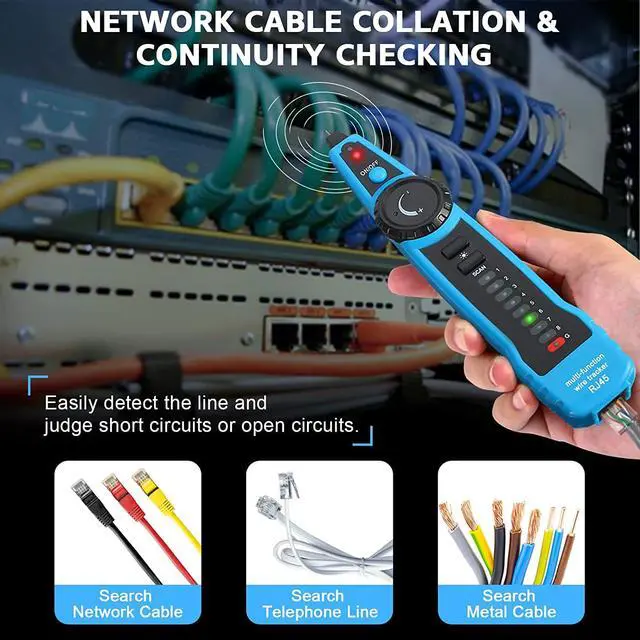

- Network Cables Verifying - Plug one side of the cable into the emitter and the other side into the receiver. Select "Network" to check and verify whether the network cables are good or not. The work of the telephone line of the detection of various states, only the transmitter can be detected, such as determining TIP or PING line, to determine the work of the telephone line idle, ringing, and off-hook state.
- Wire Tracking - It can trace not only Ethernet LAN wires, but also electrical and speaker wires when connecting to the alligator clip.
+
+
Overview
Specs
Reviews
Operating temperature: 0-40 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Storage temperature: -10 -50 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: 300m or so

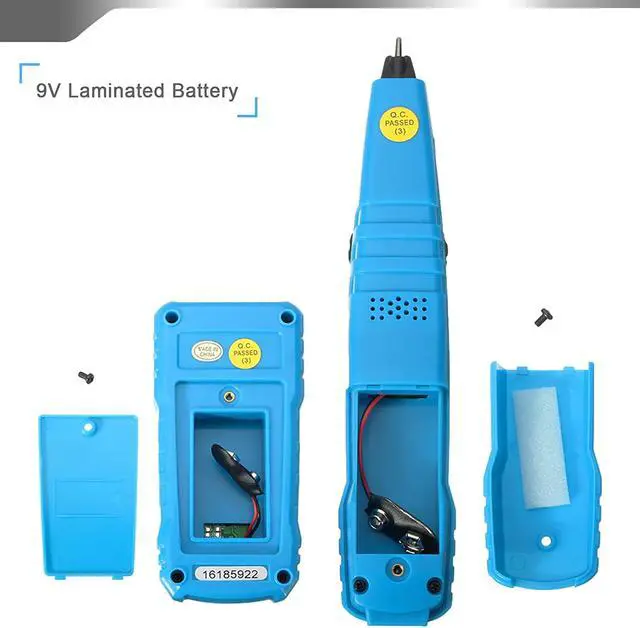

Emitter battery: 6F 22/9V (not included)
Receiver battery: 6F 22/9V (not included)
Use a standard 9V alkaline product battery or 9V charging battery
Product weight: 0.180 kg
Package weight: 0.270 kg
Product size: 20.00 x 4.00 x 3.00 cm / 7.87 x 1.57 x 1.18 inches
Package size: 22.50 x 12.20 x 4.70 cm / 8.86 x 4.8 x 1.85 inches
What's In The Box?
1 x FWT11 Emitter
1 x FWT11 Receiver
1 x RJ11 with Clip Adapter Cable
1 x RJ45 Adapter Cable
1 x User Manual
Telecommunication network, line engineering and routine aintenance
Computer network line engineering
Other metal wire wiring works and maintenance work
Scope of Application
Education
Home appliance
Industrial
Market
Office
Supermarket
Do not use on a line with a strong current
Remove the battery when you don't use it for a long time
Never use it during a lightning storm
Storage temperature: -10 -50 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: 300m or so
Emitter battery: 6F 22/9V (not included)
Receiver battery: 6F 22/9V (not included)
Use a standard 9V alkaline product battery or 9V charging battery
Product weight: 0.180 kg
Package weight: 0.270 kg
Product size: 20.00 x 4.00 x 3.00 cm / 7.87 x 1.57 x 1.18 inches
Package size: 22.50 x 12.20 x 4.70 cm / 8.86 x 4.8 x 1.85 inches
What's In The Box?
1 x FWT11 Emitter
1 x FWT11 Receiver
1 x RJ11 with Clip Adapter Cable
1 x RJ45 Adapter Cable
1 x User Manual
Telecommunication network, line engineering and routine aintenance
Computer network line engineering
Other metal wire wiring works and maintenance work
Scope of Application
Education
Home appliance
Industrial
Market
Office
Supermarket
Do not use on a line with a strong current
Remove the battery when you don't use it for a long time
Never use it during a lightning storm
