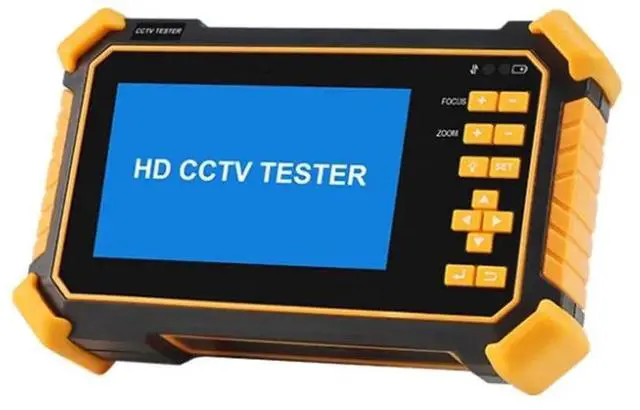

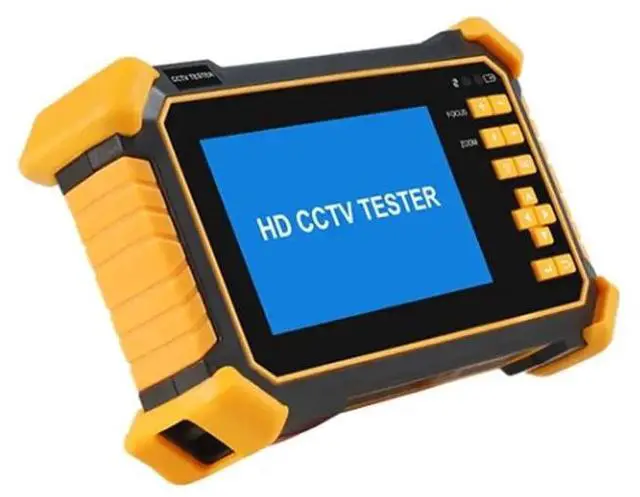

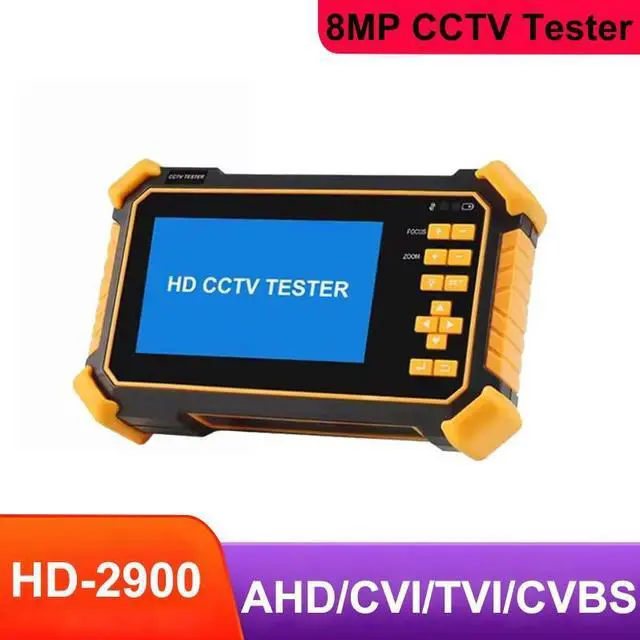

4.3 inch CCTV Monitor Tester AHD / CVI / TVI CVBS Analog CCTV Camera Tester-

Features:

4.3 inch CVBS CVI TVI AHD 4 IN 1 CCTV Tester

4.3 inch TFT-LCD screen, 480*272 resolution

8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu

8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu

8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu

Analog camera test, PTZ controller

DC12V/1A power output

Audio in, support record and save the audio

3.7 V /4000mAh Li-ion Battery, after 5 hours charging, working time lasts 7 hours

RS485 PTZ control, baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

UTP cable test, network cables sequence and continuity test (new)

Detect the near-end fault point of RJ45 cable connector (new)

Cable length, network cable length measurement, up to 3km (new)

Application:

The 4.3 inch TFT-LCD screen HD CCTV tester is designed for maintenance and installation of HD coaxial cameras, UTP cable test as well as other security equipment. The 480*272 resolution enables it to display image from cameras. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

CCTV system installation and maintenance

TVI CVI AHD Analog camera testing

PTZ controller

Packing list:

1) Tester

2) 5V 2A USB charging cable/BNC cable/RS485 cable/Audio cable

3) Li-ion battery (3.7V DC 5200mAh)

4) Manual

Specifications:

Model:HD CCTV tester

Display:New 4.3 inch TFT-LCD screen,480*272 resolution

CVI video signal test: 8MP CVI camera test, 3840 x 2160P 12.5/15FPS,UTC control / call OSD menu

TVI video signal test:8MP TVI camera test,3840 x2160P 12.5/15 FPS, UTC control/ call OSD menu

AHD video signal test:8MP AHD camera test, 3840x 2160P 15FPS, UTC control / call OSD menu

HD camera test:HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu

CVBS video signal:1 channel BNC input,NTSC/PAL (Auto adapt), PTZ control,RS485 control,Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P,Samsung,Panasonic etc

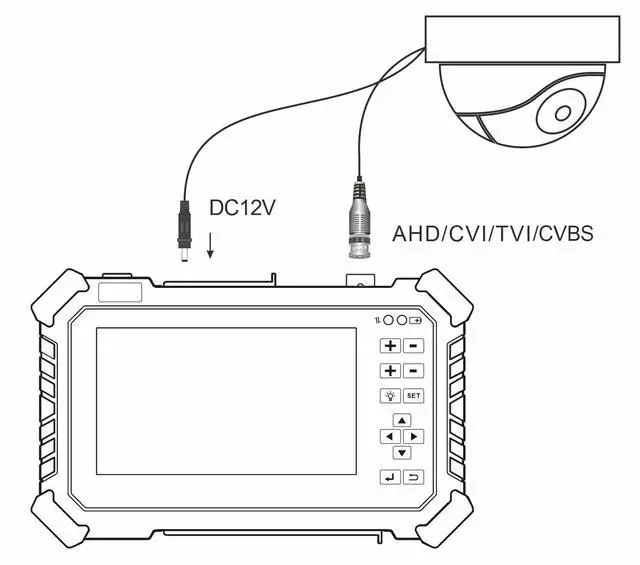

DC 12V/1A power output:DC12V/1A power output, supply temporarily power for the camera

Audio test: 1 channel audio signal input, test the audio whether is normal

Power

Battery:Built-in 3.7V Li-ion battery,5200mAh

After charging 5hours, normal working time 7 hours. The maximum charging

Rechargeable:current of the battery is 1.67A, and 5V 2A charger is standard.

Parameters

Operation setting:OSD menu, select your desired language: Simplified Chinese,Traditional Chinese,English,etc

General

WorkingTemperature:-10+50

Working Humidity:30%-90%

Dimension/Weight:162mm x107mm x42mm/0.4Kg
