MP0515A 12V Car Battery Tester Automotive 100-2000 CCA Battery Load Tester Auto Cranking and Charging System Test Scan Tool Digital Battery Alternator Analyzer

MP0515A 12V Battery Load Tester Voltmeter 100-2000CCA and Charging System Alternator Analyzer

An Revolution Diagnostic Tool for Battery Test and Alternator Analysis
The up-to-date algorithm for battery test is applied. More Accurate, More Smart and More Convenient.

Connect and Play. It provides a quick reading to determine if a vehicle battery needs a jump or replacing and also the alternator output status.

A must tool in your garage.

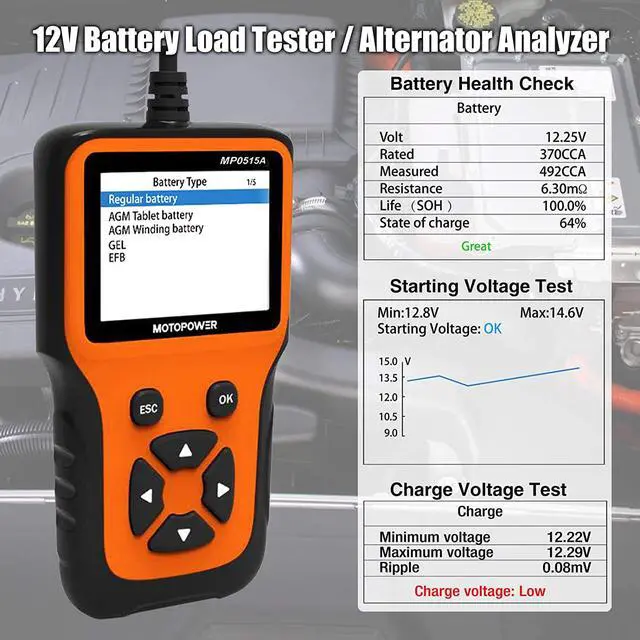

12V Battery Load Tester Alternator Analyzer
Affordable Diagnostic Tool
Test the battery State of Health, State of Charge and Internal Resistance on your hand. Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts.

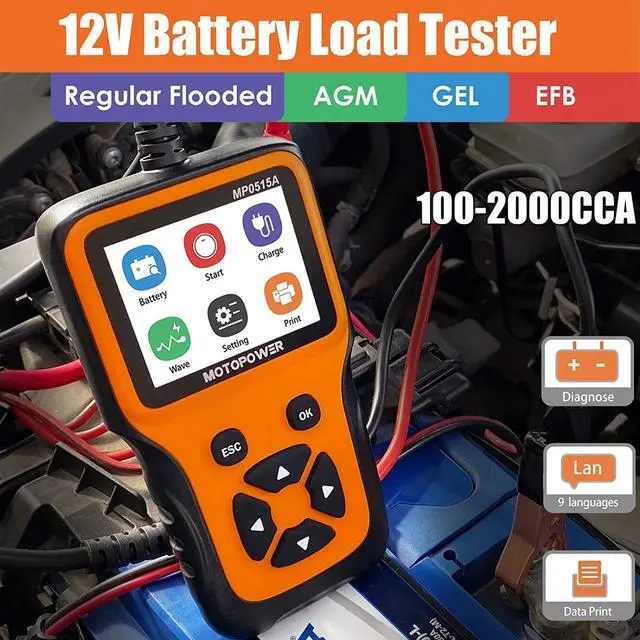

Wide Test Range and Battery Types
For all types of 100-2000 CCA lead acid batteries, including Regular Flooded, AGM Flat Plate, AGM Spiral, GEL and EFB. Battery Standards includes CCA, BCI, CA, MCA, JIS, DIN, SAE etc.

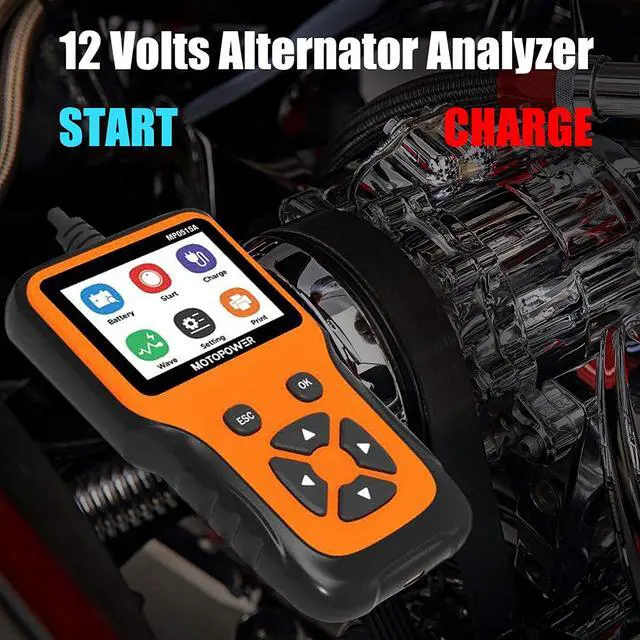

Alternator Analyzer
Check the alternator cranking voltage and charging system health. View the real-time output.

ALL IN ONE TEST TOOL
Large Color LCD Display - 240*320 pixel
Easy Operation - Plug and Play
More Accurate - Powered by ARM
More Smart - Respond in seconds
Compact Design
Light weight
Save your bucks
Support 9 languages

Clear View with full color LCD Screen
3-inch Full Color LCD screen is eye-friendly and easy to read. Provides you a more comfortable visual experience at every inspection. Super clean design, compact and lightweight.

More Smart and Accurate
Powered by ARM core chip. The up-to-date algorithm for battery test is applied. Get the testing result in seconds. More smart and accurate. Support 9 languages for worldwide use.

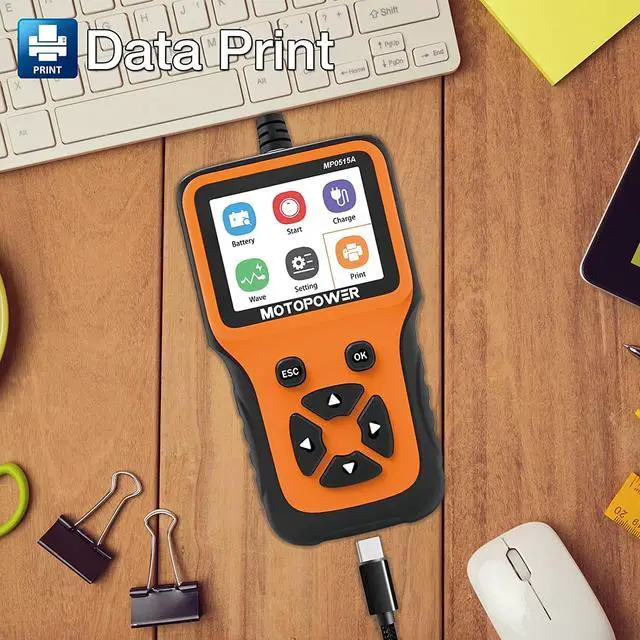

Store Data, Review & Print
Store the testing results by capturing the screen directly. The stored data can be reviewed on the tester or printed by connecting a computer. Print driver will be automatically installed when connection.

How to Test Your Battery?

1- Choose Battery Test Mode
1- Quick Test Mode - Testing directly.
2- Standard Test Mode - Select the battery types and models.

2- Select Battery Type
In the Standard Test Mode, select the same battery type as your battery. Refer to your battery rating lable for details.

3- Select Battery Model
In the Standard Test Mode, select the same battery model as your battery. Refer to battery rating lable for details.

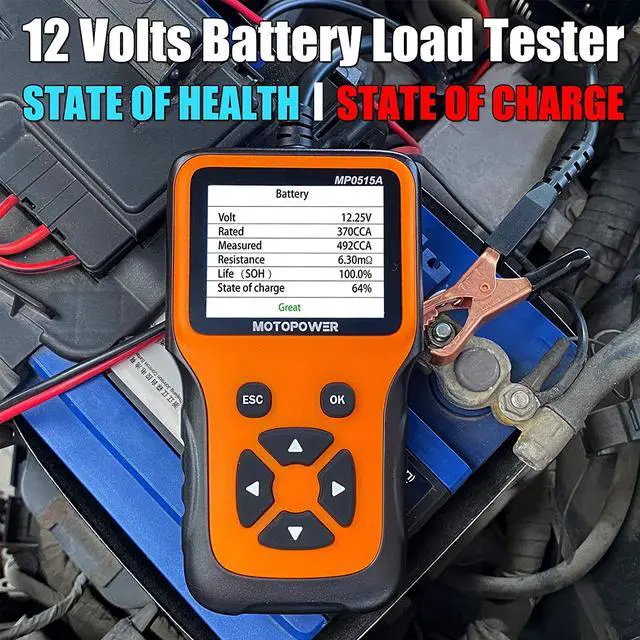

4- Get the Testing Result
Get the testing result in seconds, including voltage, Internal Resistance, State of Health and Stage of charge.

How to Test the Alternator?

Start / Cranking Voltage Test
Connect the tester with the battery and Start the engine to test the alternator's start voltage. Display the testing value and result directly.

Alternator Charging Voltage Test
Turn the headlights on for 3 seconds and then off. Keep engine speed above 2500 rpm for 3 seconds, then pressOKto test.

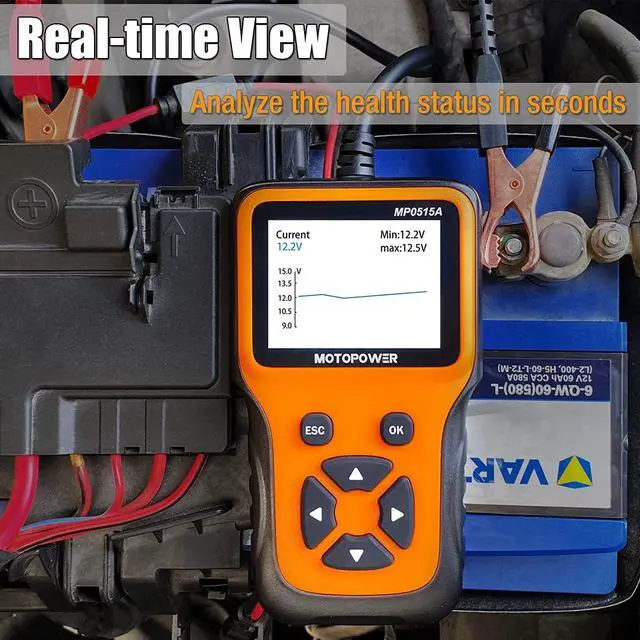

Real-time Output View
Enter the Wave option to view the real-time output voltage of the alternator or the battery output.
