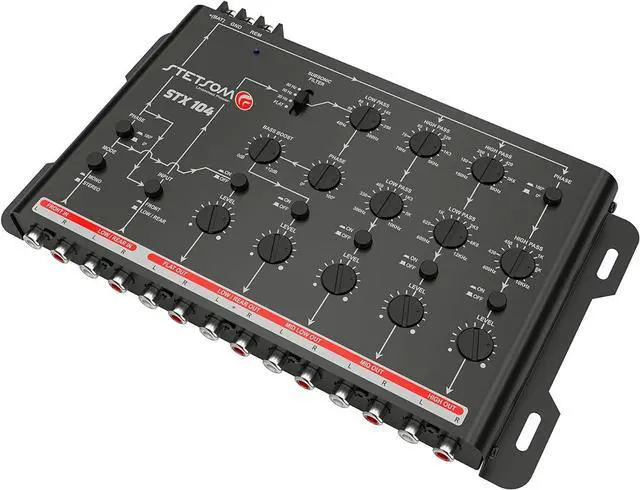

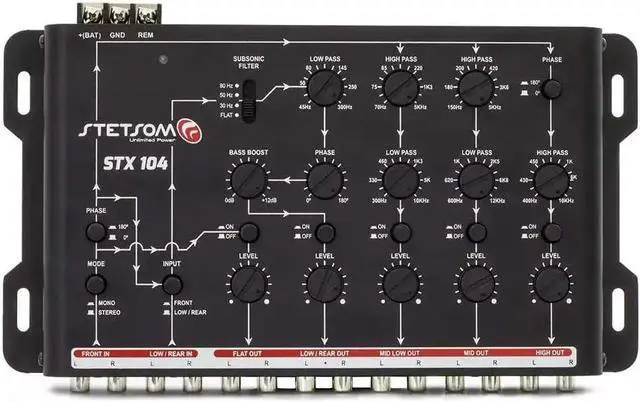

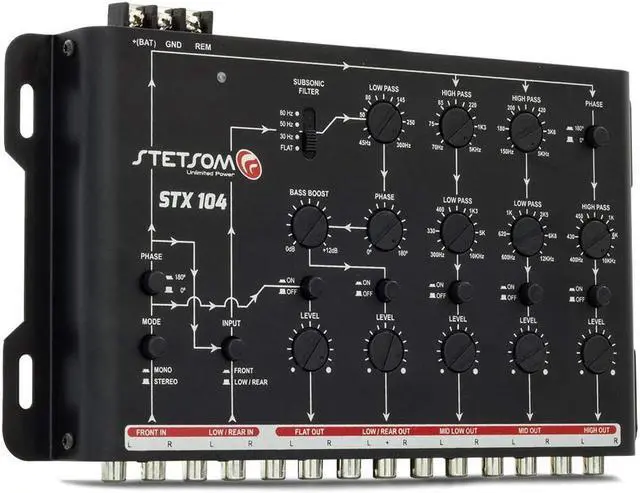

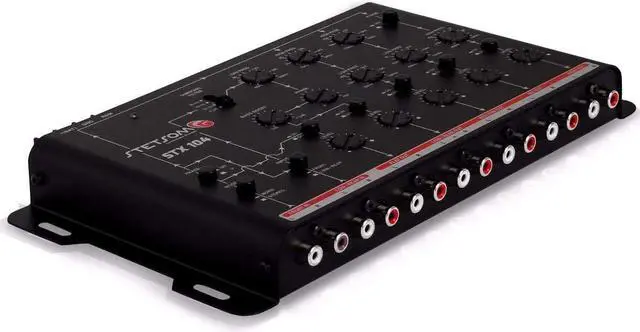

STX 104 - Crossover, 5 Way Channels, Digital Electronic Car Audio, Output Signal Processor, Car Audio Crossover, Audio Crossover, Crossover Adjustment, Audio Equalization
- Item #: 9SIVFTRKAA0326
- Mfr. Part #: WUQ8403849-329432423
- Item Dimensions LxWxH 10.39 x 6.3 x 1.3 inches
- Voltage 9 Volts
- Manufacturer Stetsom
- Mounting Type Surface Mount
+
+
Overview
Specs
Reviews
Compact
5 channels
Customizable sound adjustments
Dimensions: 1.3 x 10.4 x 6.3 inches
Weight: 1.72 lbs
Technical Specs
Via High: 400Hz - 10KHz (12 dB/8ª)
Via Mid: 150Hz - 12, 5KHz (12 dB/8ª)
Via Low: 70Hz - 10KHz (12 dB/8ª)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal to Noise: >90dB
Input Impedance: 10K OHMS
Harmonic Distortion: < 0,02% THD
Channel Separation: > 80dB
Frequency Response: 20Hz - 200Khz
Supply Voltage: 10V - 16V DC
5 channels
Customizable sound adjustments
Dimensions: 1.3 x 10.4 x 6.3 inches
Weight: 1.72 lbs
Technical Specs
Via High: 400Hz - 10KHz (12 dB/8ª)
Via Mid: 150Hz - 12, 5KHz (12 dB/8ª)
Via Low: 70Hz - 10KHz (12 dB/8ª)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal to Noise: >90dB
Input Impedance: 10K OHMS
Harmonic Distortion: < 0,02% THD
Channel Separation: > 80dB
Frequency Response: 20Hz - 200Khz
Supply Voltage: 10V - 16V DC
