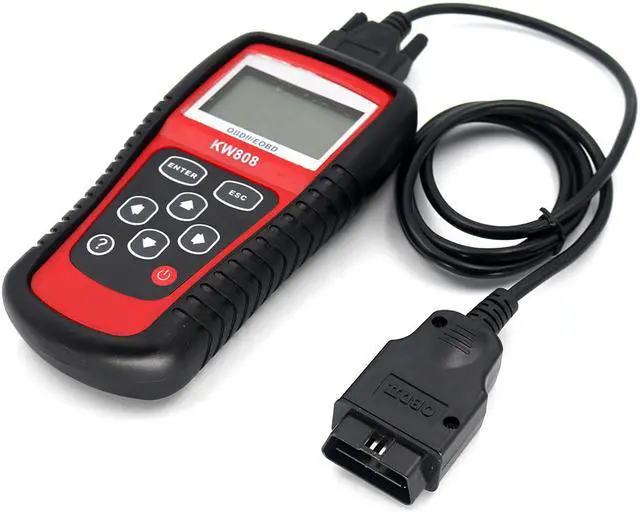

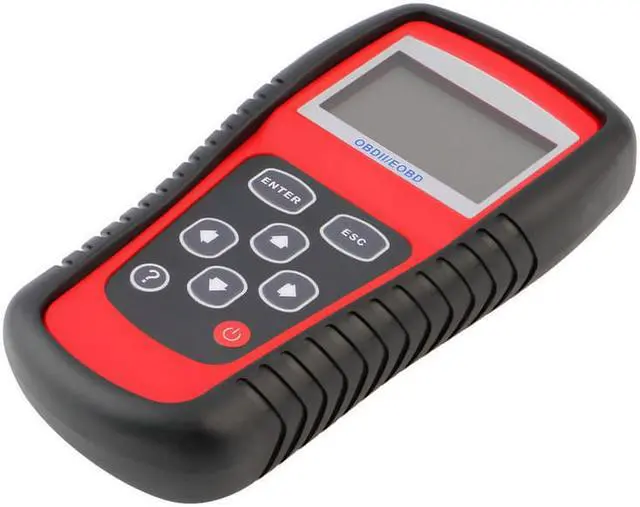

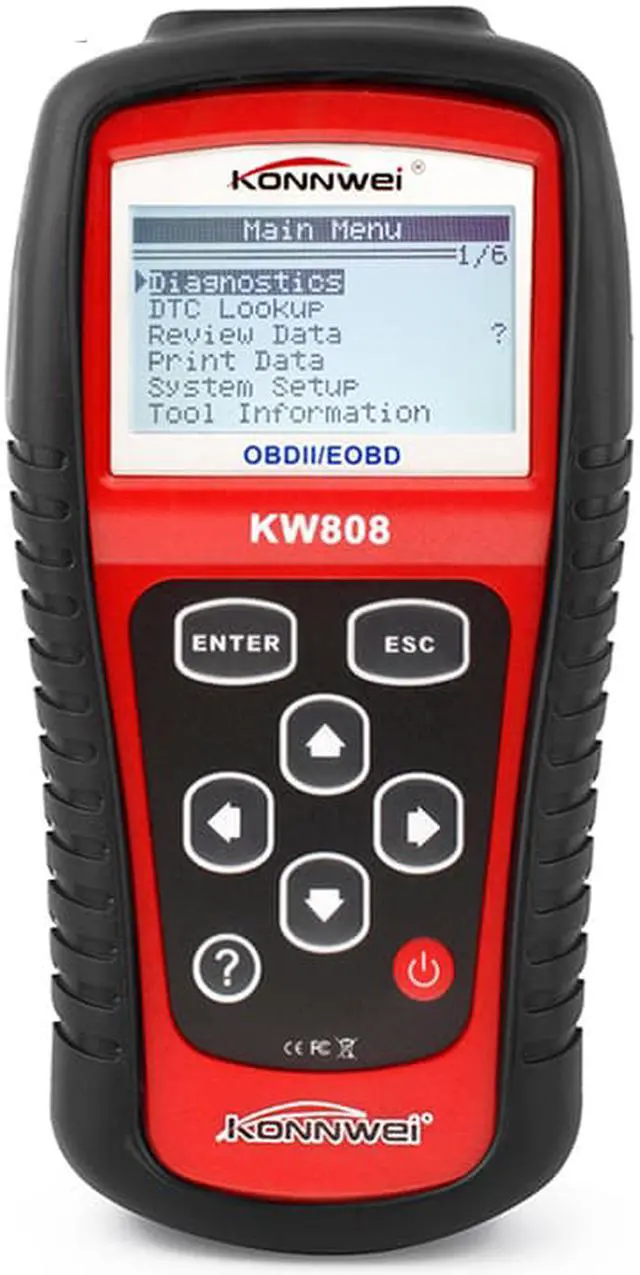

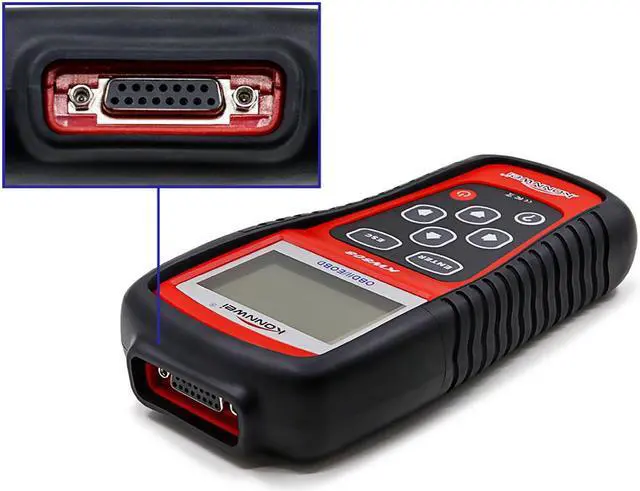

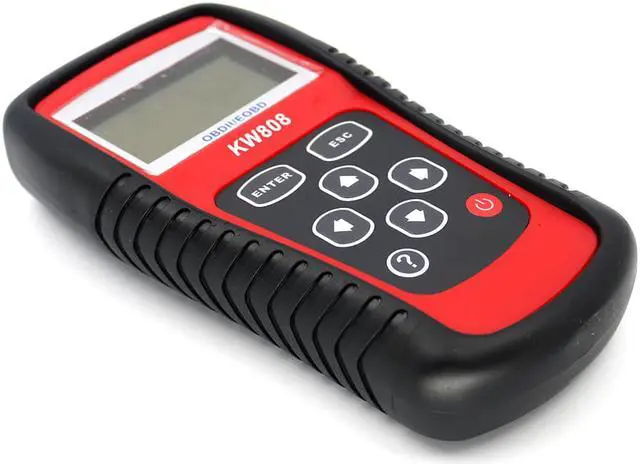

[ Authorized Distributor ] Konnwei KW808 Scan Tool OBD2 Car Diagnostics Tool EOBD KW 808 Auto Diagnostic Scanner Code Reader

Description: This scanner supports all nine OBDII test modes on all OBD2 compliant vehicles to enable technicians to accurately diagnose even the toughest problems. Sophisticated yet easy to use, this ergonomic scan tool make your vehicle service experience much more pleasant!
Functions: - Displays live O2 sensor test data. - Built-in OBD2 DTC lookup library. - Large easy-to-read backlit LCD screen. - Displays DTC definitions on unit screen. - Specially for Detect 12V Gasoline vehicles. - Display monitor and I / M readiness status ( emissions ).
- Multilingual Menu: English, Spanish, French, German, Dutch. - Easily determines the cause of the Check Engine Light ( MIL ). - Supports CAN ( Controller Area Network ) and all other current. - Memory / battery backup for off-vehicle data review and analysis. - Work on all 1996 and later OBD2 compliant US, European and Asian vehicles. - Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer specific ( P1, P3, and U1 ) codes.
Highlights: Highly reliable and accurate It is easy to use with one plug-in Easy-to-read clear backlit LCD display You may quickly find out trouble causes It is specially designed for car owners or DIY Small in size and conveniently fits in your palm Reader Scanner performs continuous DTC scan Safely communicates with the on-board computer Stand-alone unit with no need for an additional laptop computer to operate
Supports multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
Specifications:
Model: KW808
Color: Red
& Black Display: 128*64pixel
Scanner Weight: 0.5 kg
Package Weight: 0.8 kg
Material: Plastic & Rubber
Cable Length: About 56cm
Operating Temperature: -10 to 60°C
Screen: Backlit, with contrast adjustment
External power: 8 to 18V powered vehicle
Dimensions: L20*W10*H4cm/ 7.5 * 3.9 * 1.5 inch
Package Size: 25* 18.50 *7cm/ 9.84 * 7.28 * 2.76 inch

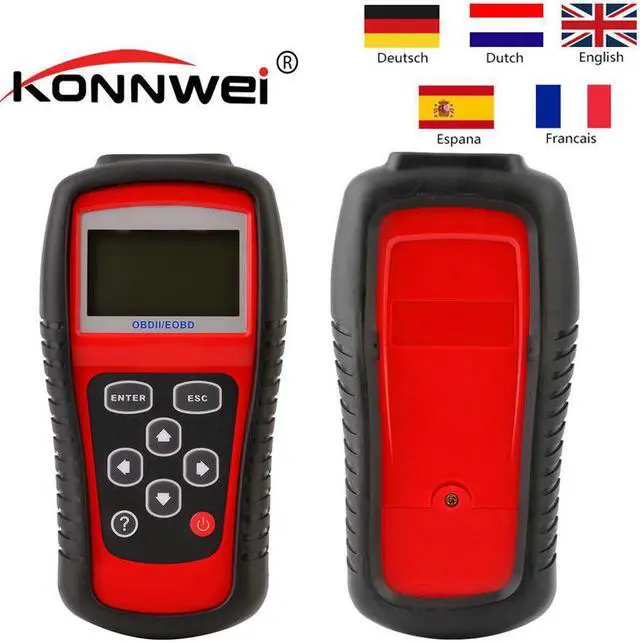

Language: English, Spanish, French, German, Dutch Konnwei KW808
Support Car:
1. Your car engine work on 12V;
2.
American: since 1996 year; European and
Australian: since 2000 year;
Asian Car: since 2005 year. ( if your car satisfy the conditions above and the ecu support standard OBD2 / EOBD protocols, it will be 100% no problem ) Konnwei KW808
Support Protocols: 1. SAE J1850 PWM ( 41.6 Kbaud) 2. SAE J1850 VPW ( 10.4 Kbaud) 3. ISO9141-2(5 baud init, 10.4K baud) 4. ISO14230-4 KWP(fast init, 10.4K baud) 5. ISO15765-4CAN(11bit ID, 500 Kbaud) 6. ISO15765-4CAN(29bit ID, 500 Kbaud) 7. ISO15765-4CAN(11bit ID, 250 Kbaud) 8. ISO15765-4CAN(29bit ID, 250 Kbaud) 9. ISO14230-4 KWP(5 baud init, 10.4K baud)

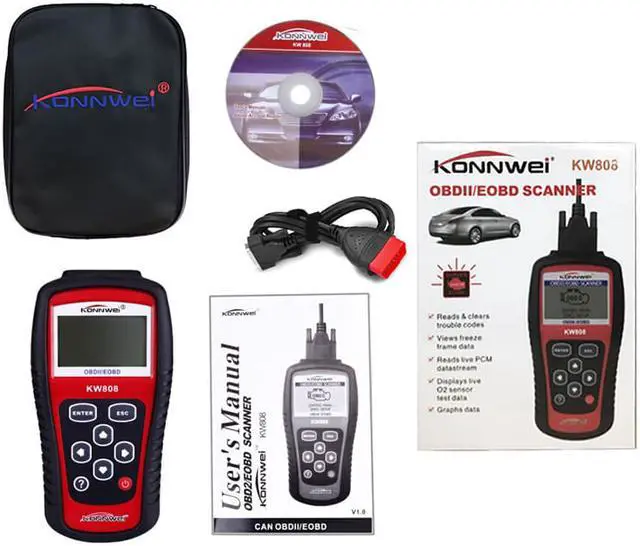

Package List: OBD2 Cable*1 CD Software*1 English Manual*1 Nylon Carry Case*1 KW808 Code Scanner*1
