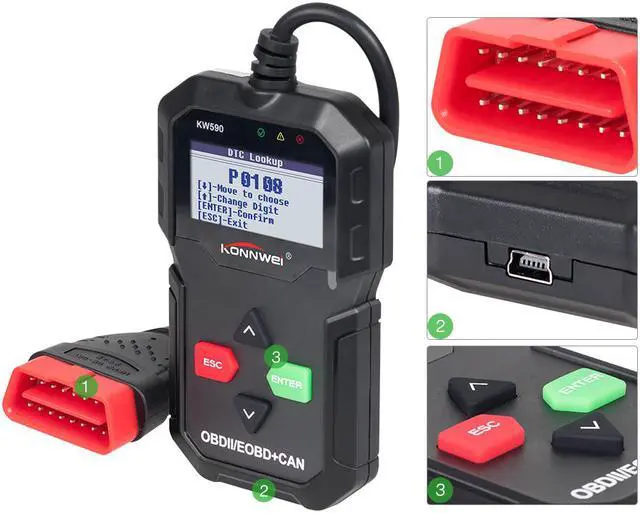

[ Authorized Distributor ] Konnwei KW590 OBD2 Car Diagnostics Tool EOBD KW 590 Auto Diagnostic Scanner Code Reader

Description: KONNWE KW590 OBD2 Scanner Features the unique patented logical navigation buttons, TFT Backlit display screen and built-in speaker. It is truly the ultimate in ease and affordability, enabling users to verify repairs, road test, check State, Emission Monitor Status and solve engine systems and drive ability problems. The car diagnostic functions of KW590 is much more higher and completely superior than other model like AD310 or NT201 with much more affordable price. Besides, KW590 is supporting one-click updates and printing the diagnostic reports from PC.
Highlights: Support printing the diagnostic report via computer.
Support Multi-language: Russian, English, Spanish, French, German, Dutch With extra small plush bag, easy storage and keeping your scan tool tidy at garage Support life time free upgrade service. Completely compatible with the official version of Windows XP to Win10. The Chip Set used in KW590 is performance much more faster, more stable and reliable. The speed of reading codes or live data is 2 -3 times faster than same level's scan tool Built-in memory, it can store diagnostic data, freeze frame and trouble codes. Support playback, you can review the stored data when you are at home with powered from PC via USB port KONNWEI KW590 functions MUCH MORE better than AD310/OM123/NT201, and it can support 10 MODE OBDII Diagnostic Function while other scan tool only works for 5-6 functions according to their diagnostic menu Main

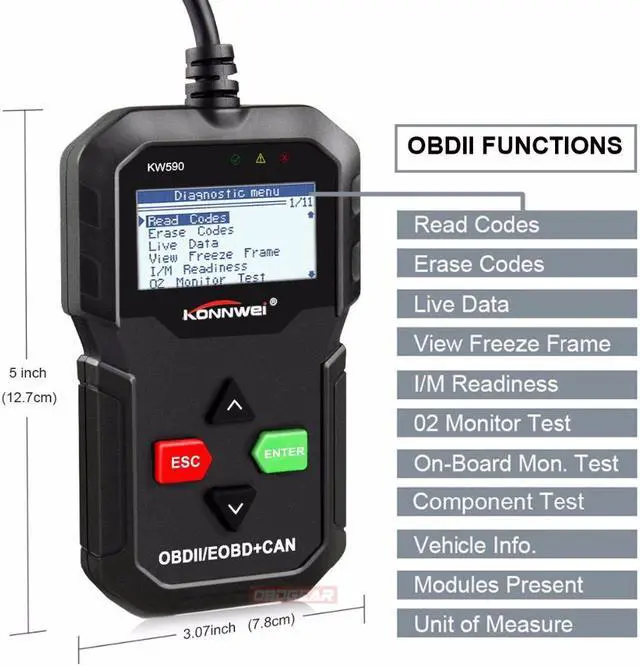

Functions & Features:
1. Extremely easy to use and highly reliable
2. Support printing the diagnostic report via PC
3. Retrieves vehicle information(VIN, CIN and CVN)
4. Views freeze frame data stored in car computer board
5. Displays monitor and I/M readiness status (emissions related)

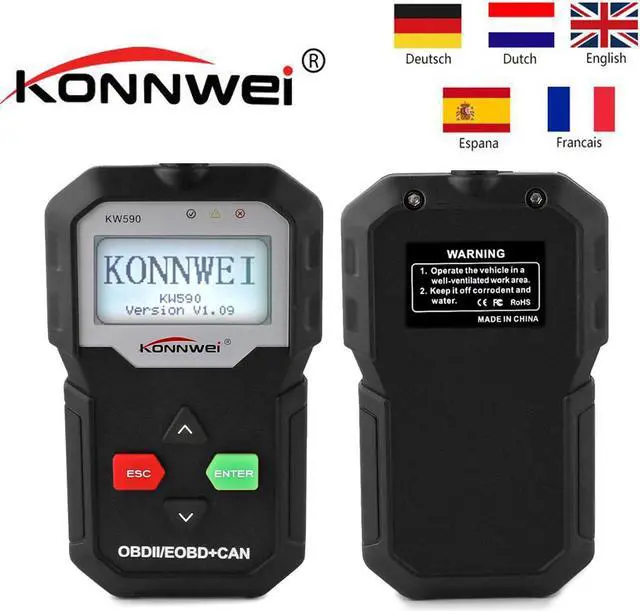

6. Multilingual menu and DTC definitions, fully support Russian
7. Displays DTC definitions on the TFT screen without checking online
8. Easily determines the cause of the Malfunction Indicator Light ( MIL)
9. Supports 10 OBD2 engine test modules on all OBD2 vehicles diagnosis.
10. Reads live PCM datastream and display in both text mode and graph mode
11. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors

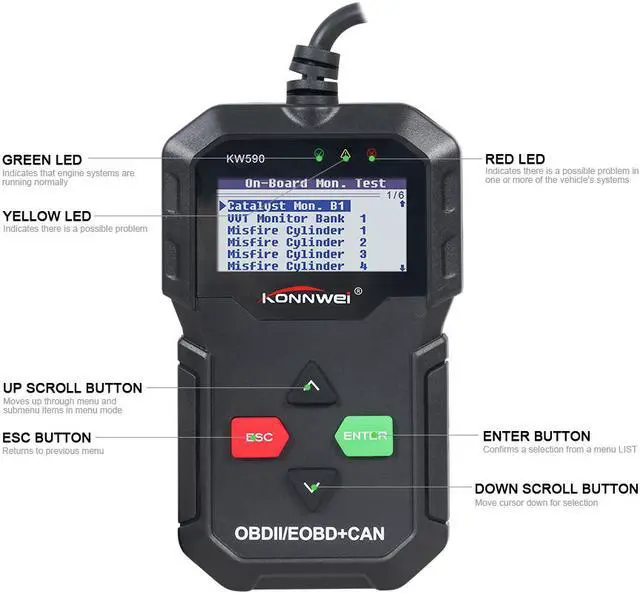

12. Features the unique designed logical nativation keyboard. (green means GO, and Red means EXIT)
13. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
14. Life time free update service by one-click, the scan tool will automatically update itself without worring.
15. Bright color coded LEDs and built in speaker provide both visual and audible indication for readiness verification

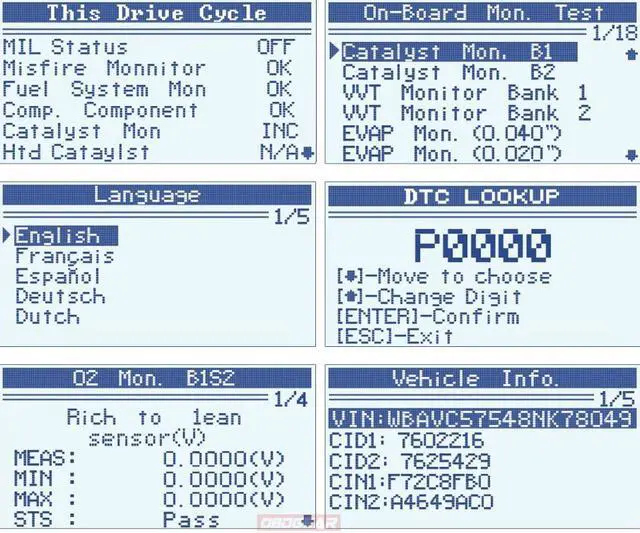

16. Read Codes; Erase Codes; Check I/M Readiness status; Live sensor Readings (Graph & Text Mode Display); Freeze Frame; Vehicles Information; Oxygen Sensor Test; On-Board Monitoring Test; EVAP Test;
Specification:
Model: KW590
Display: 128*64
Backlit Scanner Weight: 0.2 kg
Package Weight: 0.4 kg
Power: 8 to 18 V provided via vehicle
Dimensions: 127*78*20mm (5* 3.07 * 0.79 inch)
Storage Temperature: -20 to 70? (-4 to 158? )
Operating Temperature: 0 to 60? (32 to 140? )
Externel Power: 8.0 to 18.0 V power provied via vehicle battery Support Car Makers
American Car makes: Works on obd2 car from 1996 to now
European Car makes: Works on obd2 car from 2001 to now
Asian Car makes: works on obd2 car from 2008 to now How to printed by KW590 The Printing Date function allows printing out diagnostic date recored by the scan tool or customized test reports
1. Downloading the updating tool from our website: www. itoscanner. com or our official website
2. Connect the Scanner to computer with the USB cable supplied
3. Run uplink updating program in you computer
4. Use the UP/down scroll button select printed date from main menu in the scan tool, and press the Ok button

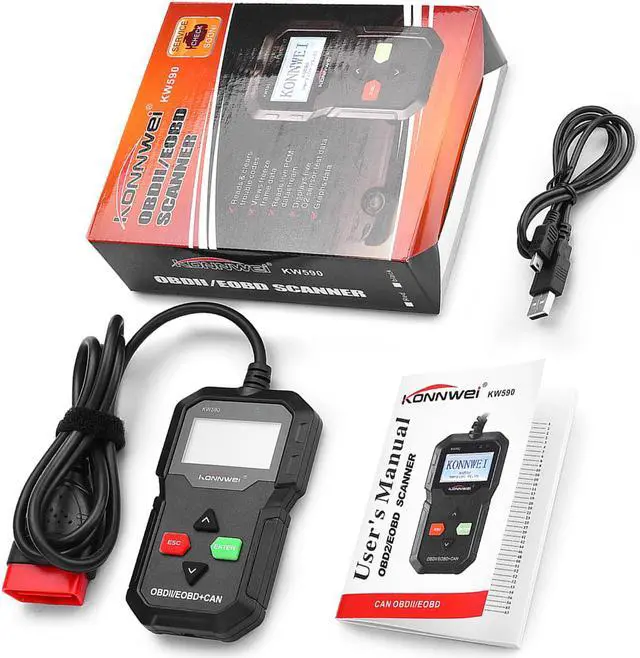

Package List: USB Cable*1 Cloth Case Bag*1 English Manual*1 KW590 Code Scanner*1
