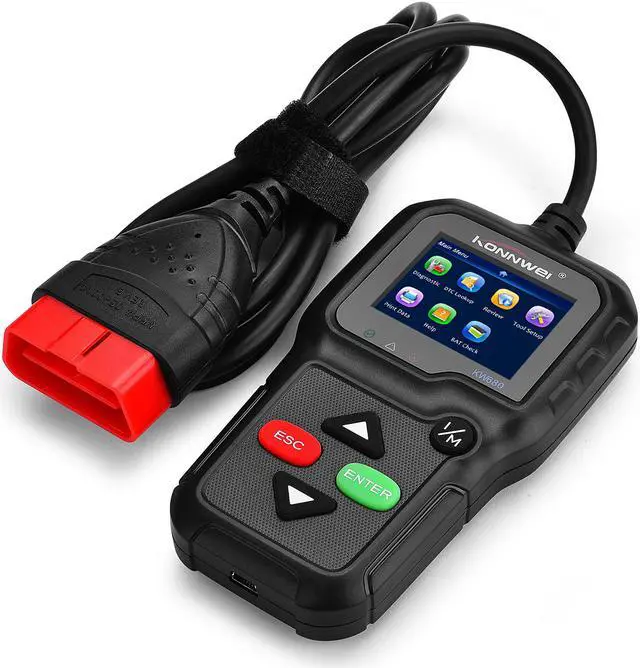

[ Authorized Distributor ] Konnwei KW680 OBD2 Code Reader KW 680 Auto OBD2 Scanner OBD2 Diagnostic Tool

Description: The KONNWEI KW680 OBD2/EOBD/CAN Auto Diagnostic Scanner supports all 10 OBD2 test modes on all OBD2 compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW680 is truly the ultimate in power and affordability, allowing users to do their jobs faster. High
Lights:
1. Specially for Detect 12V Gasoline vehicles.
2. Mini Multifunction OBD2 Automotive Scanner with good price
3. Internet upgradable via usb port, adapted to Windows XP to Windows 7
4. Data printable through USB cable, allows modify and print-out storaged data
5.

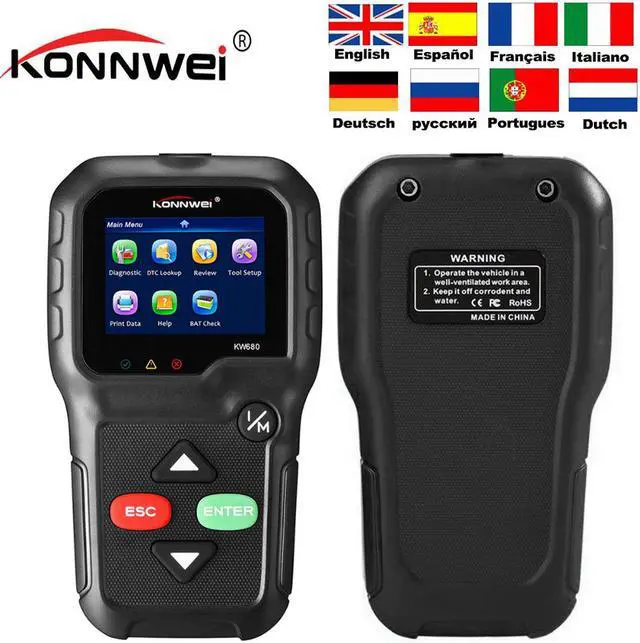

Multi-Languages: English, Spanish, Portuguese, French, Russian, German, Dutch, Italian
6. Featured battery real-time monitoring during diagnostics, avoid un-expected issue happened
7. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

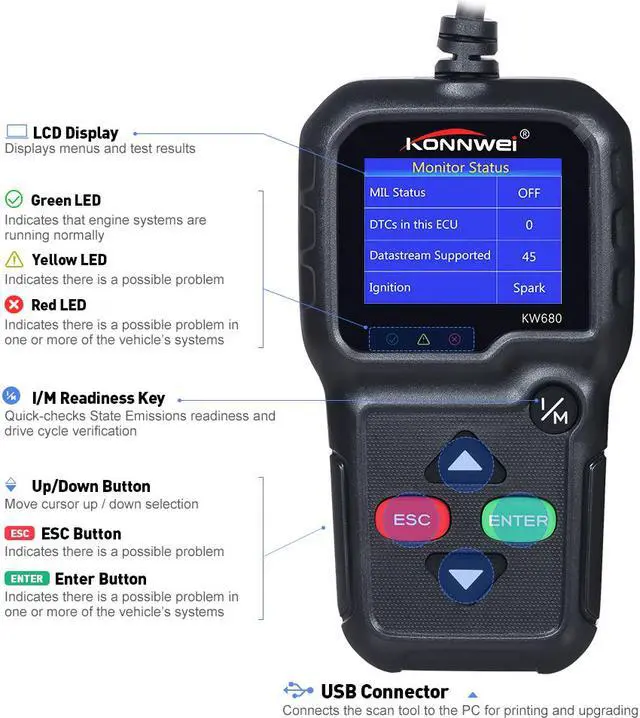

8. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.
9. Brand New design Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for your car repairing.
10. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.

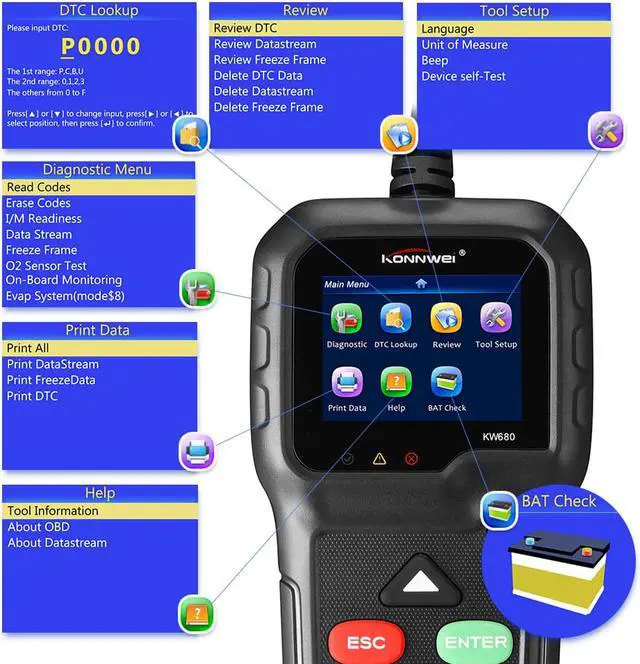

Functions:
1. Works on Most 1996 and newer vehicles (OBDII & CAN) - domestic and import

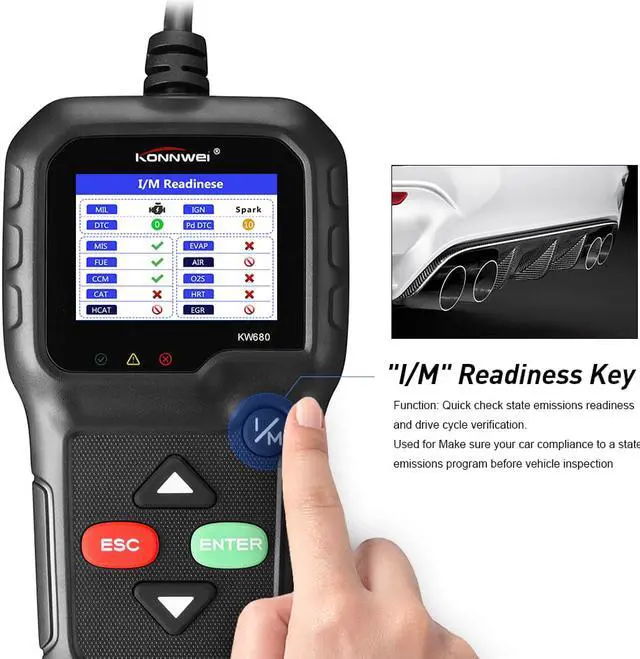

2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light (MIL)
6. Turns off Check Engine Light (MIL), clears codes and resets monitors
7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data 12. EVAP System test data
13. Live sensor data in text mode and graph mode (1996 and newer vehicles)
14. Reads, stores and playbacks live sensor data
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Battery Voltage real time monitoring.
17. Built-in DTC look-up library and display definition.
18. Retrieves vehicle information (VIN, CIN and CVN)
19. Internet updateable and upgradeable
20. Prints data via PC Specification
Display: TFT color screen (320*240)
Power: 8 to 18 V provided via vehicle
Operating Temperature: 0 to 60? (32 to 140? )
Storage Temperature: - 20 to 70? (-4 to 158? )
Weight&Size: 0.45KG /124*70*20mm ( 4.88 * 2.76 * 0.79 in)
Supported Protocols: J1859- 41.6, J1850- 10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898) Support Car Makers
Asian Car: works on OBD2 car from 2008 to now
American Car: Works on OBD2 car from 1996 to now
European Car: Works on OBD2 car from 2001 to now Supports Free Update
1. Please plug the USB to you pc and connected the konnwei kw680. Meanwhile press any button of KW680. (Notice: Please turn off anti-virus software when installing, otherwise may be unable to install the driver properly)
2. Please search this webiste www. itosaanner download this software, and click checked update
3. Wait for the update process finished, the scanner KW680 will be ready to go! KW680 Prints out data to PC - After install the KONNWEI program on PC, connect the scanner to PC with USB cable. - Open software "Konnwei", Select "Print" option. -
Operation on scanner: go to main menu, select " Print Data"; Select the data option that you want to print to PC

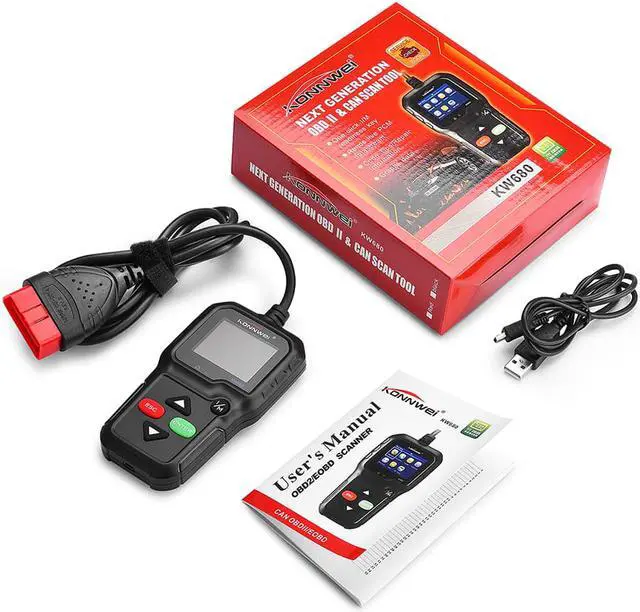

Package List: USB Cable*1 User Manual*1 KW680 Code Scanner*1
