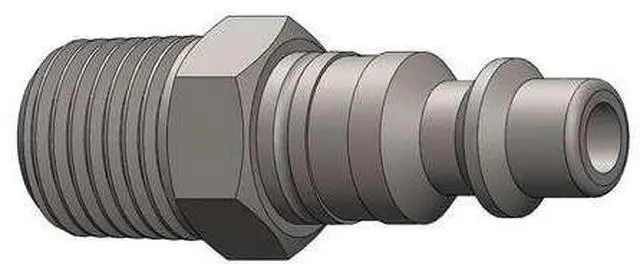

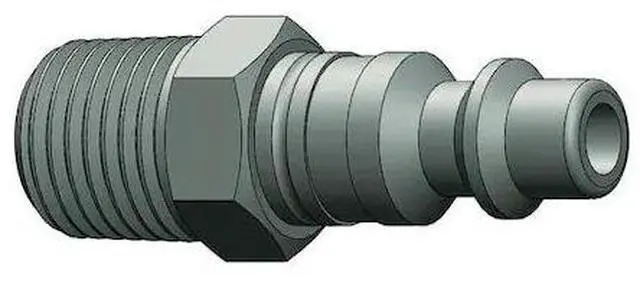

DIXON VALVE & COUPLING D2M3 Male to Industrial Plug,(M)NPT,1/4,Steel

The DIXON - D2M3 is a quick connect hose coupling intended for connection and disconnection without tools on the end of a hose or pipe. It features an industrial-style male plug with a 1/4 in coupling size and 3/8 in hose fitting size, compatible with pneumatic, hydraulic, and general-purpose fluid lines. The coupling uses a sleeve locking mechanism and a NPT threaded connection type, providing a sealed interface. It is constructed from steel with a zinc-plated finish and includes nitrile seals that is rated for operation within the temperature range of -40°F to 250°F. The fitting has a maximum flow rate of 764.55 liters per minute.

Key Features:

• - Material: Steel with zinc-plated finish for external protection
• - Seal Material: Nitrile, rated for operation within the temperature range of -40°F to 250°F
• - Connection Type: NPT thread, 3/8"-18 size
• - Body/Coupling Size: 1/4 in coupling, 3/8 in hose fitting size
• - Hose I.D. compatibility: 3/8 in
• - Coupling Component: Male plug with sleeve locking mechanism
• - Maximum Working Pressure: 500 psi at 70°F
• - Maximum Flow Rate: 764.55 lpm
• - Overall Length: 1.75 in
• - Maximum Outside Diameter: 7/8 in
• - Application: On end of hose or pipe, industrial interchange standard
• - Includes Valve: No
