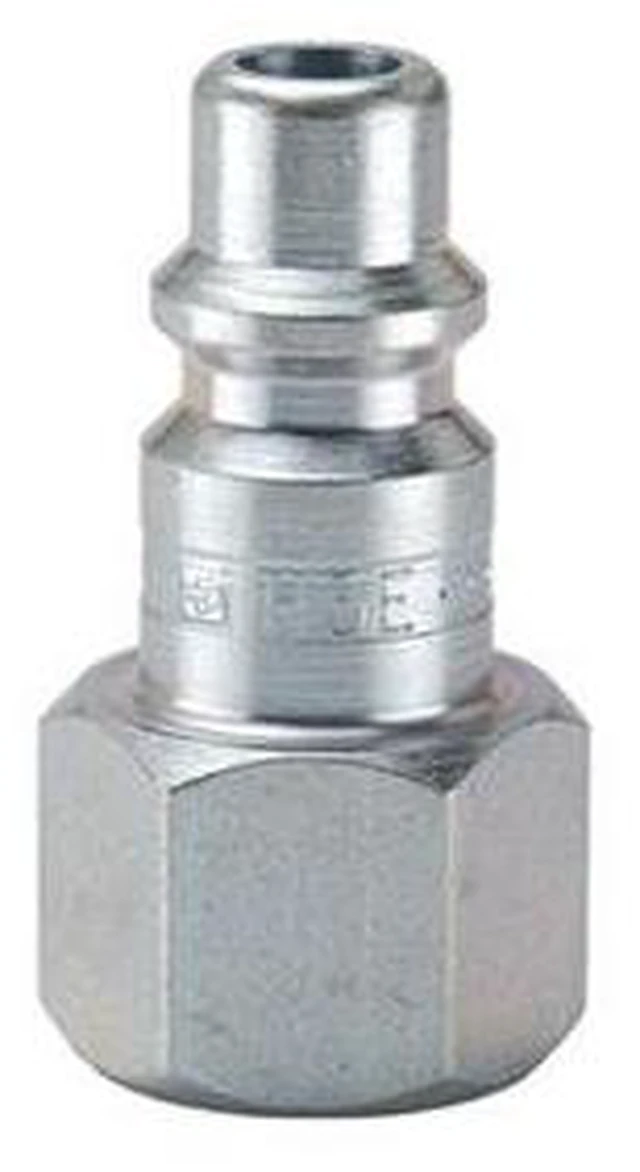

PARKER H3C Coupler Plug,Steel,FNPT,1/4 In. Pipe

The PARKER - H3C is a quick connect hose coupling designed for pneumatic applications. It facilitates rapid, tool-free attachment and detachment of hoses or equipment through a push/pull or twist locking mechanism. Manufactured from steel with a trivalent chrome finish, this plug-style coupling features a female 1/4 inch hose fitting and NPT connection type. It is intended to form a sealed connection when properly installed and used within the specified pressure and temperature ratings and maximum rated flow: 707.92 lpm; maximum rated working pressure: 300 psi (at 70°F). The fitting operates within a temperature range of -40°F to 250°F and conforms to the Industrial interchange standard.

Key Features:

• - Application: Pneumatic use
• - Coupling component: Plug
• - Body size: 1/4 in
• - Hose fitting gender: Female
• - Hose fitting size: 1/4 in
• - Connection type: NPT
• - Maximum flow rate: 707.92 lpm
• - Maximum working pressure @ 70°F: 300 psi
• - Operating temperature range: -40°F to 250°F
• - Finish: Trivalent Chrome
• - Material: Steel
• - Overall length: 1.56 in
• - Maximum outside diameter: 3/4 in
• - Thread size: 1/4"-18
• - Interchange type: Industrial
• - Barbed: No
• - Includes valve: No
