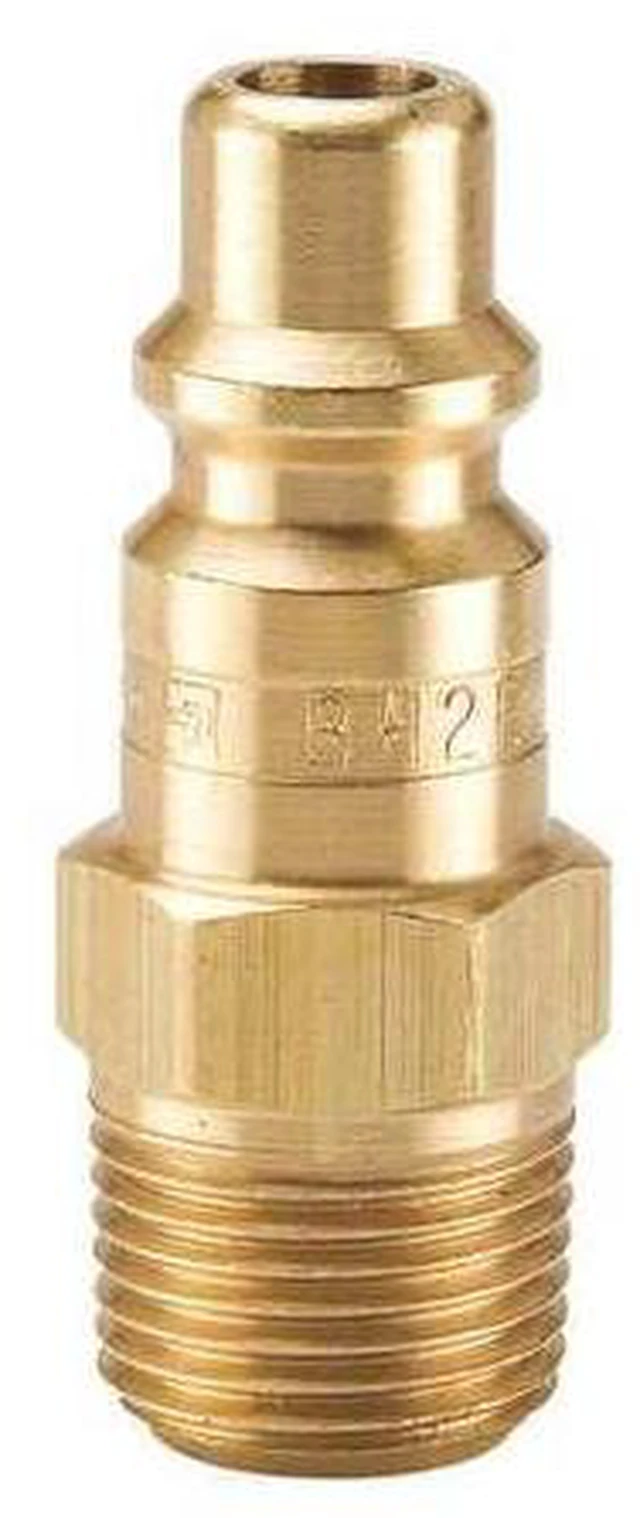

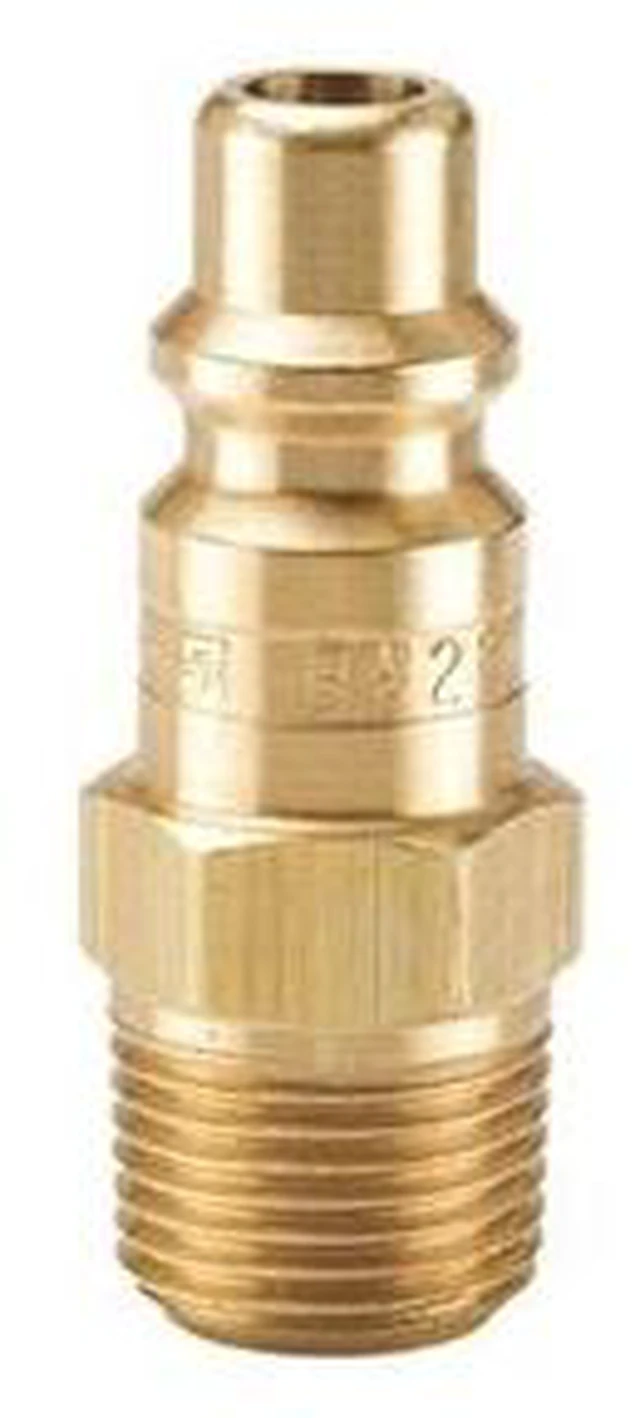

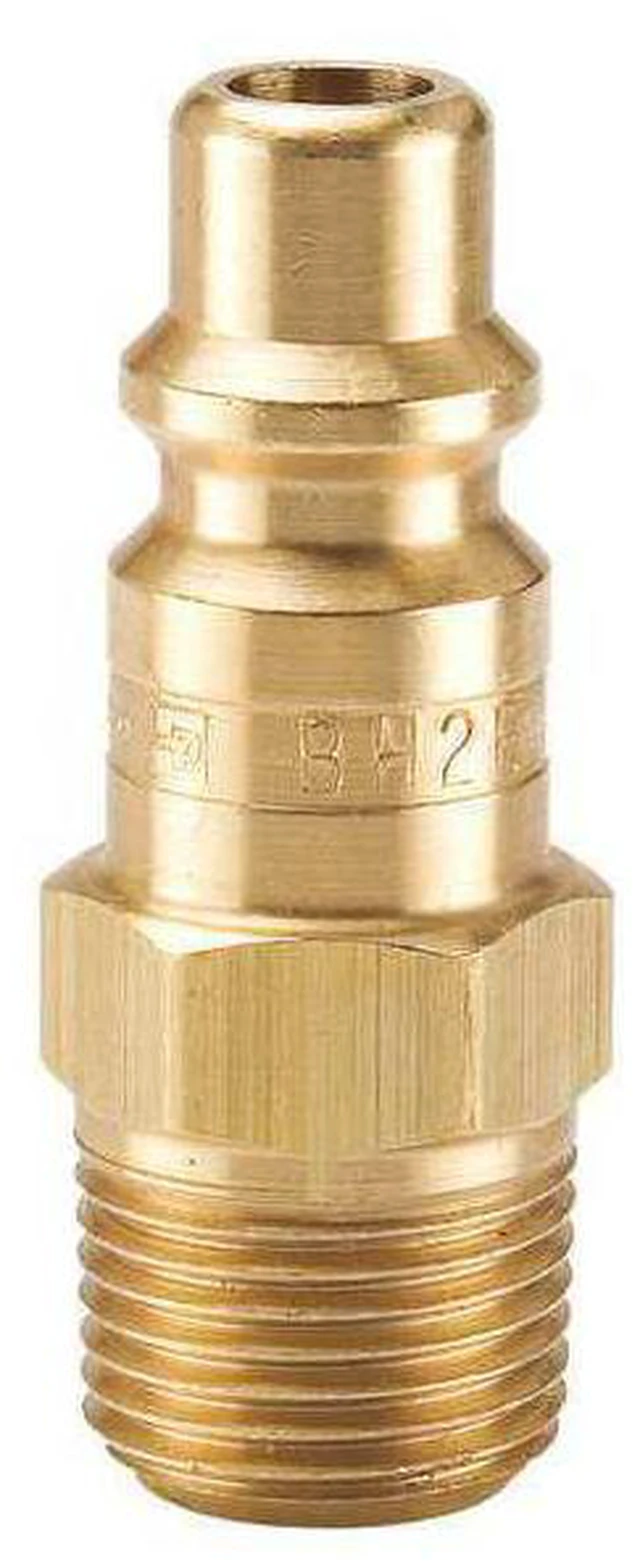

PARKER BH2F Coupler Plug,Brass,1/2 In. Pipe,110 cfm

The PARKER - BH2F is a quick connect hose coupling for pneumatic use. It enables rapid, tool-free connection and disconnection of hoses and equipment via a male plug that [omit from description] mates securely with a compatible coupler. Constructed from brass with nitrile seals, this coupling is intended to form a connection with nitrile seals for pneumatic air line use (maximum working pressure: 300 psi @ 70°F). The fitting has a nominal 1/2 inch hose size and thread size of 1/2"-14 NPT, with an overall length of 2.31 inches. Its temperature range spans from -40°F to 250°F, making it suitable for various pneumatic line conditions.

Key Features:

• - Application: Pneumatic systems
• - Coupling Component: Male plug
• - Body and hose fitting size: 1/2 inch nominal diameter
• - Connection Type: 1/2"-14 NPT thread, male hose fitting
• - Material: Brass construction
• - Seal Material: Nitrile
• - Maximum Working Pressure: rated maximum working pressure of 300 psi @ 70°F
• - Maximum Flow Rate: 3,114.85 L/min (as specified)
• - Maximum Outside Diameter: 1 1/16 inches
• - Overall Length: 2 5/16 inches
• - Temperature Range: -40°F to 250°F
• - Interchange Type: Industrial standard
• - Does not include a valve
• - No barbed hose tail
