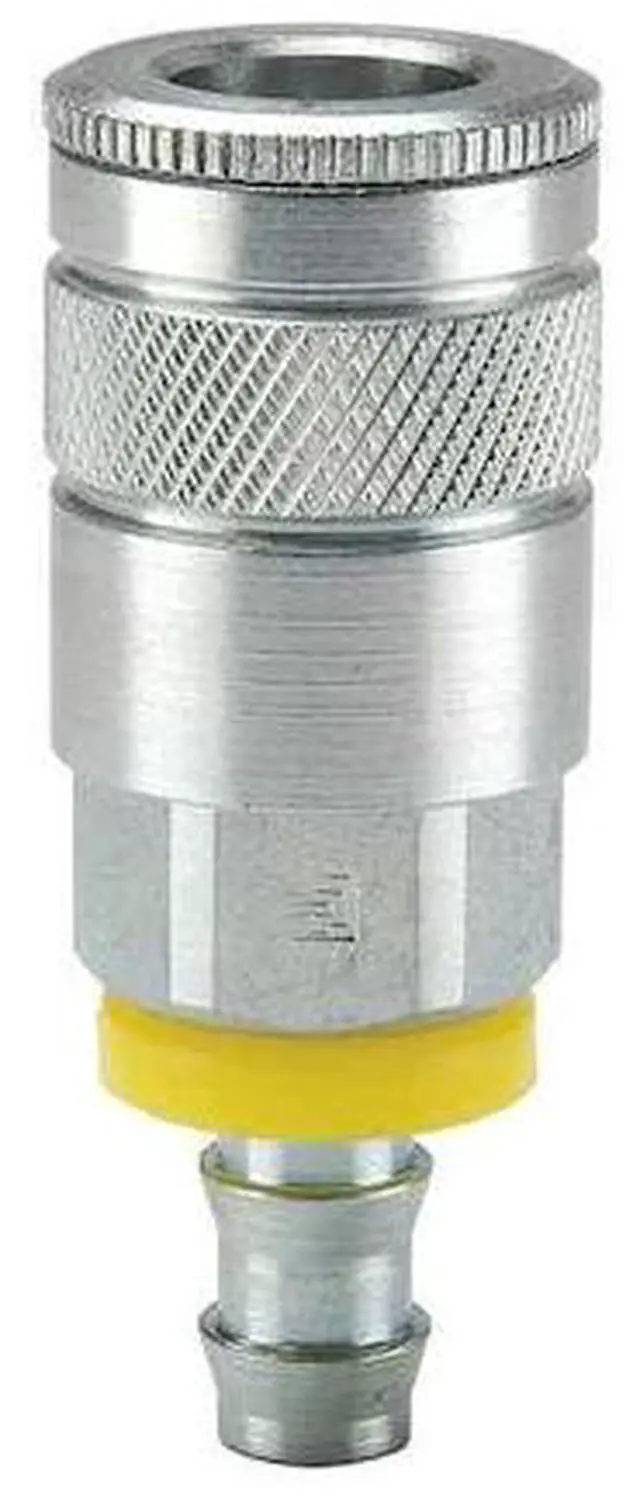

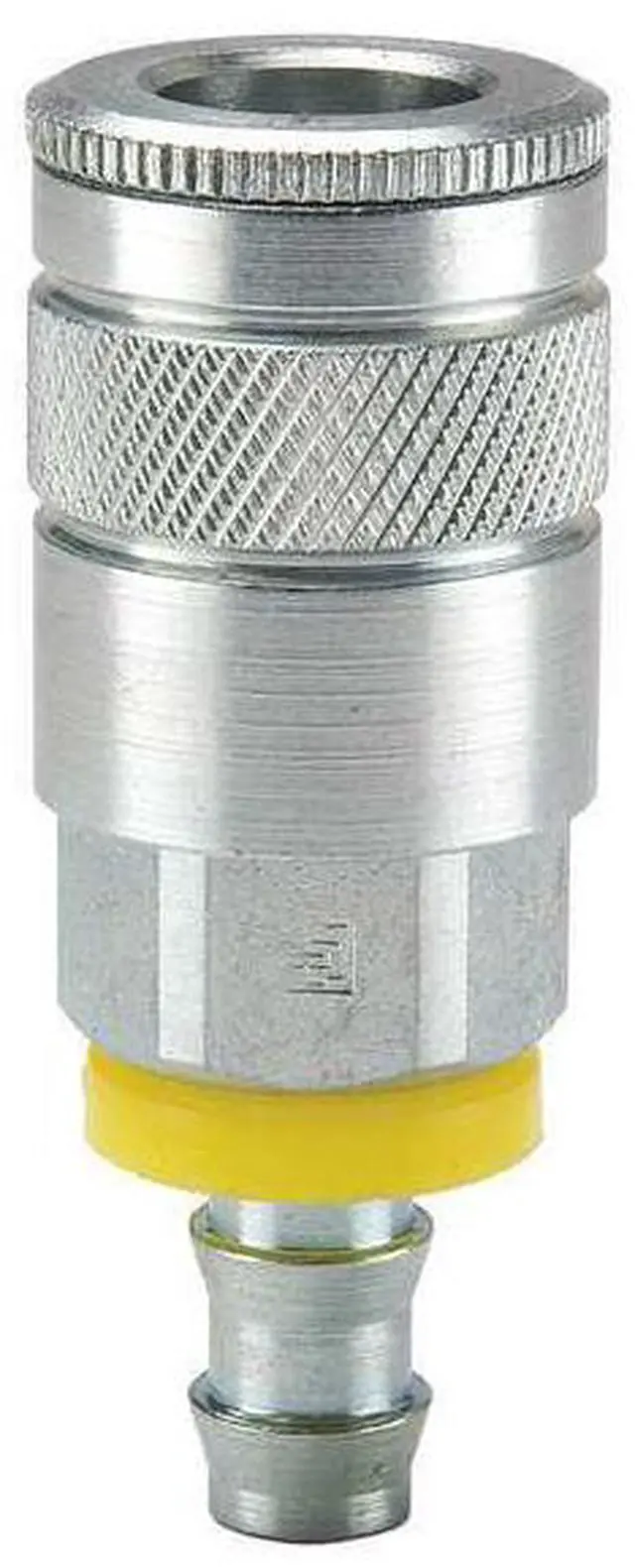

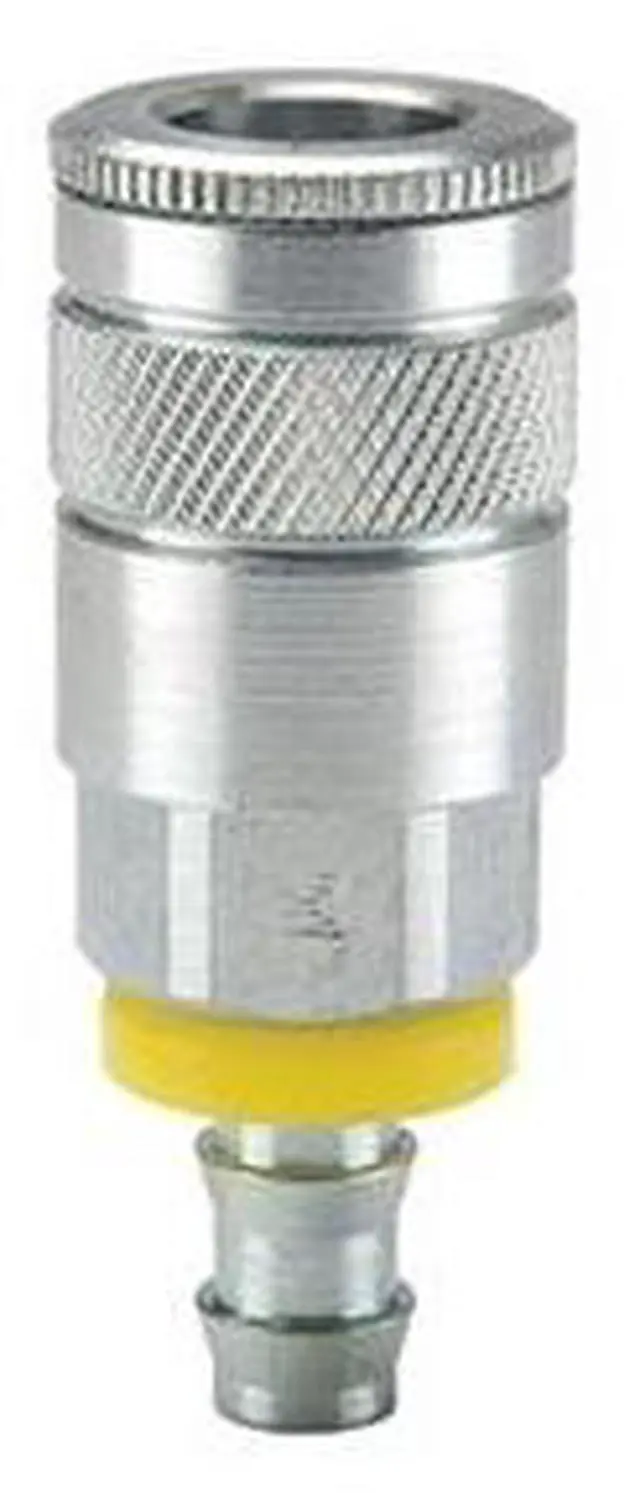

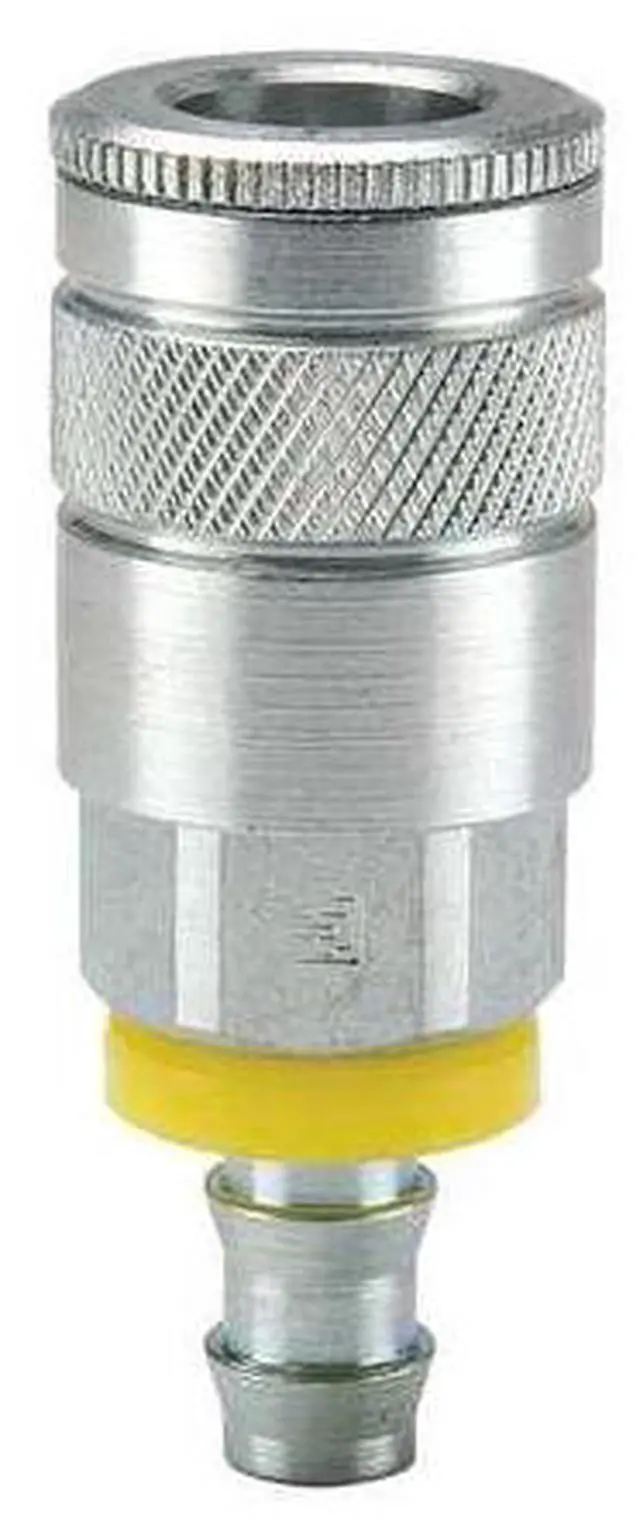

PARKER 16-6BP Coupler Body,Steel,Push On,110 cfm

The PARKER - 16-6BP is a quick connect hose coupling designed for pneumatic applications. It provides a sleeve locking mechanism for connection and disconnection without tools. The coupling is compatible with 1/2 inch hose inner diameter and It has a barbed hose tail for attachment to compatible 1/2 in hose (hose inner diameter). It includes a tubular valve for controlling airflow and is constructed from steel with a trivalent chrome finish. Its sealing elements are made of nitrile. Temperature range (specified): -40°F to 250°F.

Key Features:

• - Application: Pneumatic
• - Connection Type: Hose Barb with Male fitting gender
• - Barb Size and Hose Fitting Size: 1/2 in
• - Coupling Size and Body Size: 1/2 in
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Material: Steel with Trivalent Chrome finish
• - Includes Valve Type: Tubular
• - Max. Flow Rate: 3,114.85 lpm
• - Seal Material: Nitrile
• - Overall Length: 3.44 in
• - Max. Outside Diameter: 1.187 in
• - Temperature Range: -40°F to 250°F
