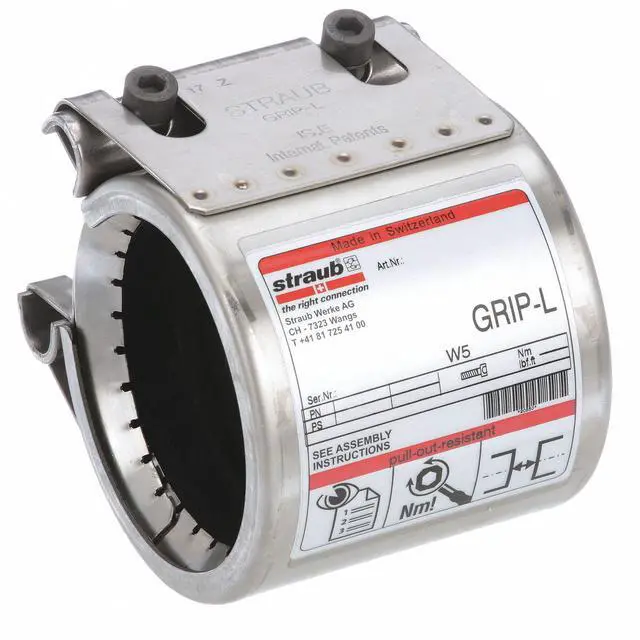

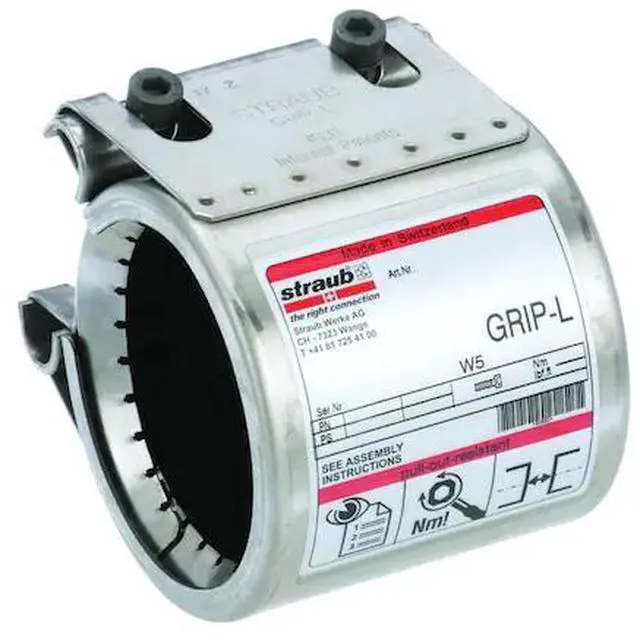

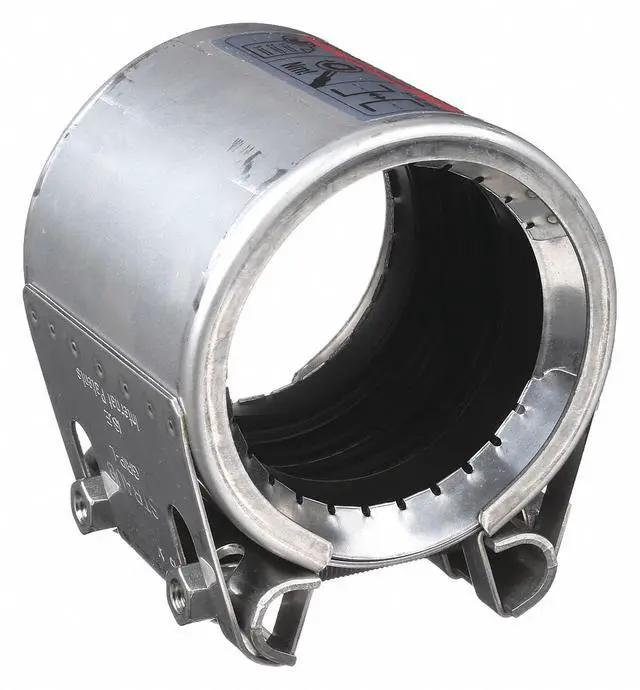

STRAUB STR20650 3" 316 SS Grip L Coupling

The STRAUB - G20650-SI is a stainless steel Grip L pipe coupling designed to join two pipes in a straight line, providing a continuous flow path. Manufactured from 316 stainless steel with a polished finish, this grooved-style mechanical coupling features a bolted housing and an EPDM sealing gasket for gasket-sealed connections designed to operate within the specified temperature and pressure ranges (temperature -4 to 212 °F; maximum pressure 232 psi). Allows axial movement to accommodate misalignment within installation configuration. The coupling includes two 6mm hex bolts made of 316 stainless steel and comes with a standard seal.

Key Features:

• - Material: 316 stainless steel pipe fitting and bolts
• - Length: 3-45/64 inches overall
• - Nominal pipe size: 3 inches
• - Seal material: EPDM included
• - Finish: Polished surface
• - Maximum operating pressure: 232 psi
• - Temperature range: -4 to 212 degrees Fahrenheit
• - Number of bolts: 2 with 6mm hex heads
• - Vacuum rating: 28 inches
• - Standards: ASTM 1476, CL2 or CL3, TY2
• - Low Lead Certified and compliant
