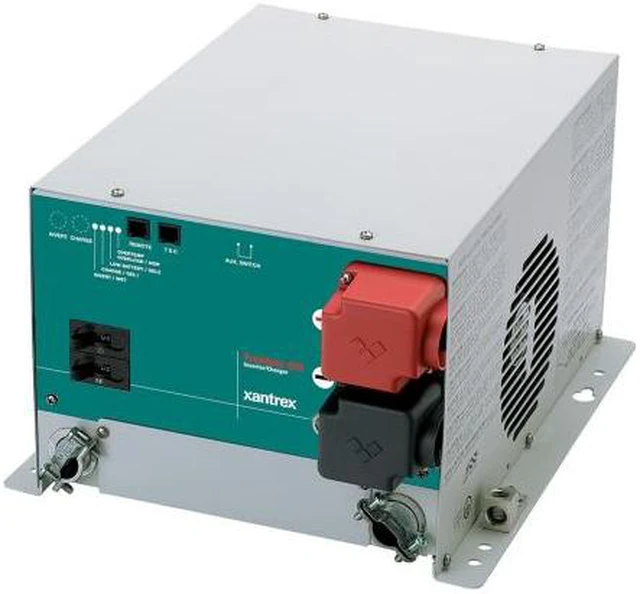

Xantrex Freedom 458 20-12 Inverter/Charger - Single Input/Dual Output (81-2022-12)

Freedom 458 Inverter/Charger

AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.

For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.

Product Features
MSW AC power inverter with high surge capability
Automatic 3-stage battery charger
Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Power sharing prevents source AC input circuit breaker from tripping
Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels
Includes battery temperature sensor
30 month warranty

Protection Features
Over voltage and under voltage protection
Over-temperature protection
Overload protection
Short circuit protection

Electrical Specifications - Inverter
Output power (continuous): 2000W
Surge power (AC amps): 50A
Output frequency regulation: 60Hz
Inverter voltage regulation: 120V +/-5% true RMS
Output wave form: Modified sine wave
Efficiency (full load): 85%
Peak efficiency: 92%
No load current draw (idle mode): 0.12A
AC output connections: Single - 20/15 Circuit Breakers
AC input connections: Single
AC transfer switch: 30A

Electrical Specifications - Charger
Charge rate: 100A DC
AC input voltage range: 90 130 VAC
Battery voltage (nominal): 12 VDC
Battery voltage range: 10.0 15.5 VDC
Low battery cut-out: 10.0 VDC
AC input (max. charge mode): 21A AC
Bulk charge voltage: 14.3 VDC***
Float charge voltage: 13.4 VDC***
Equalize charge voltage: 16.3 VDC
Charge control: 3-stage
Battery type settings: Wet / Gel 1 / Gel 2 / AGM
Equalization: Yes
Temperature sensitive charging: Yes

***Default value varies with battery typ and temperature
