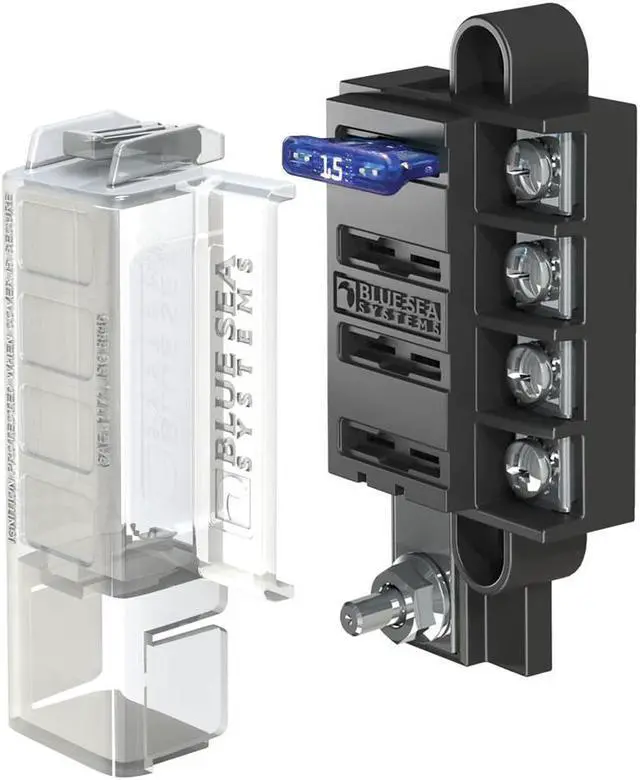

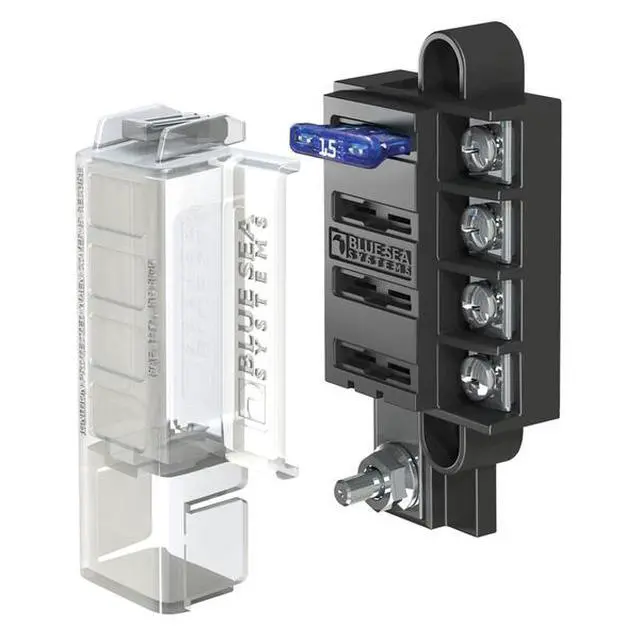

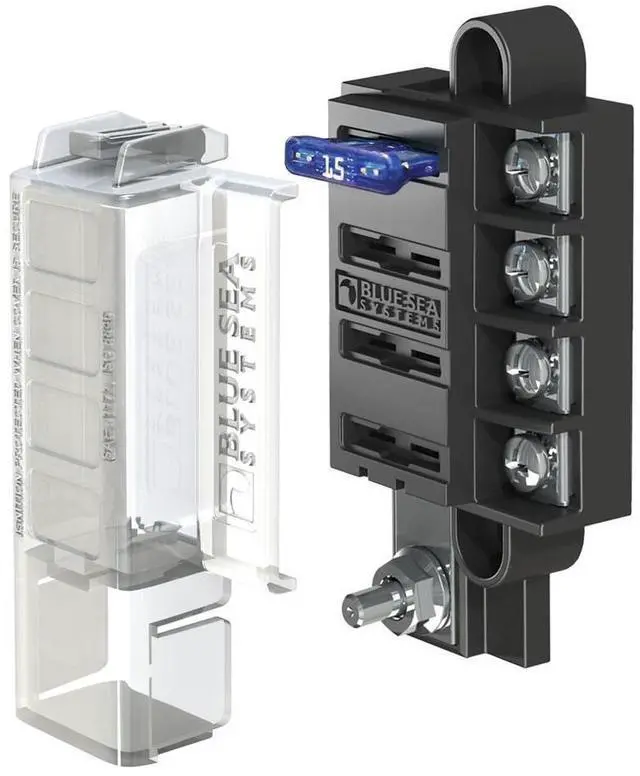

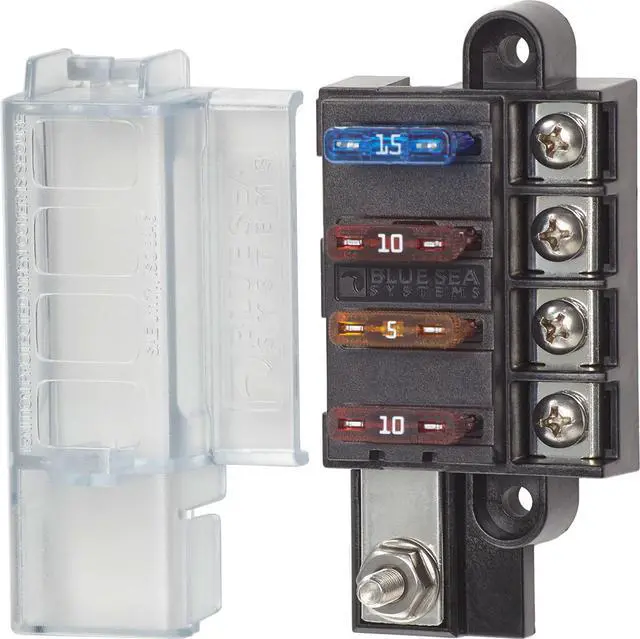

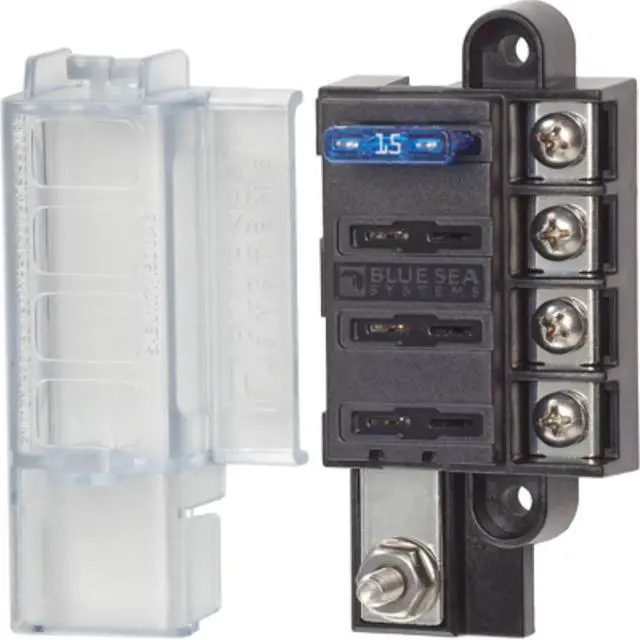

BLUE SEA 5045 ST BLADE COMPACT FUSE BLOCK 4 CIRCUIT W/COVER
+
+
Overview
Specs
Reviews
ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.Compact common source fuse blockAccepts ATO® and ATC® fast acting blade fusesSingle side entry wiringIgnition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartmentInsulating cover meets ABYC/USCG insulation requirementsTin-plated copper buses and fuse clipsAccepts ring or snap fork type terminalsSmall format standard and custom labels availableSpecificationsCircuits:4Maximum Amperage: 100A per block / 30A per circuitMaximum Voltage:32V DCMounting:#8 Screw (M4)Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
