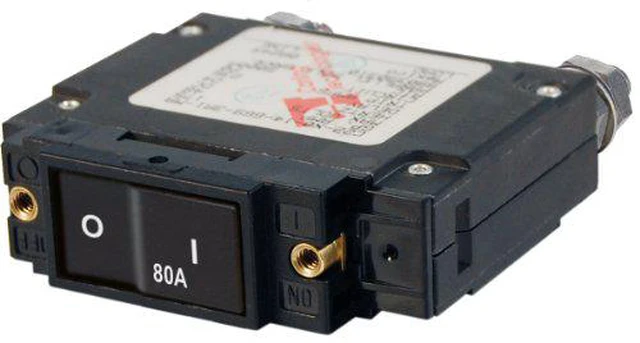

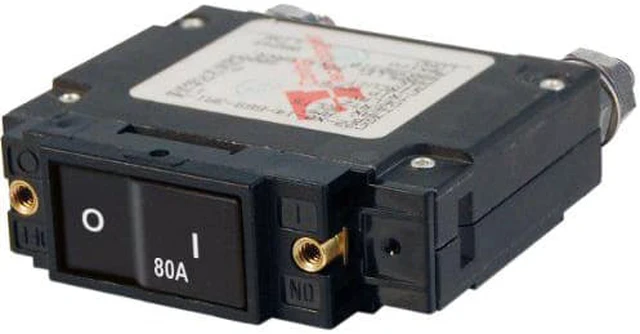

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A [7548]

C-Series Flat Rocker Circuit Breaker -
Single Pole - 80AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switchingColor actuator indicates "OFF" positionProvides overcurrent protection for inverters, bow thrusters, and windlassesCombines switching and circuit protection into a single device"Trip Free" - cannot be held closed after tripIgnition protectedsafe for installation aboard gasoline powered boatsSpecifications:
Amperage: 80A AC / 80A
DCActuator Style: Flat
RockerPoles: 1Maximum
Voltage: 240V AC / 48V
DCCircuit Breaker Type: Magnetic Hydraulic - trip freeTerminal
Stud Torque: 35 in-lb ( 3.95
Nm)Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DCMinimum
Operating Temperature: -40° CMaximum
Operating Temperature: 85°
CMounting Screw: #6-32
Stainless SteelMounting Screw Torque: 6 in-lb ( 0.68
Nm)Switching Cycles: 10000Terminal
Stud: 1/4-20
Tin-Plated BrassWeight: 0.38 lb ( 0.17 kg)
