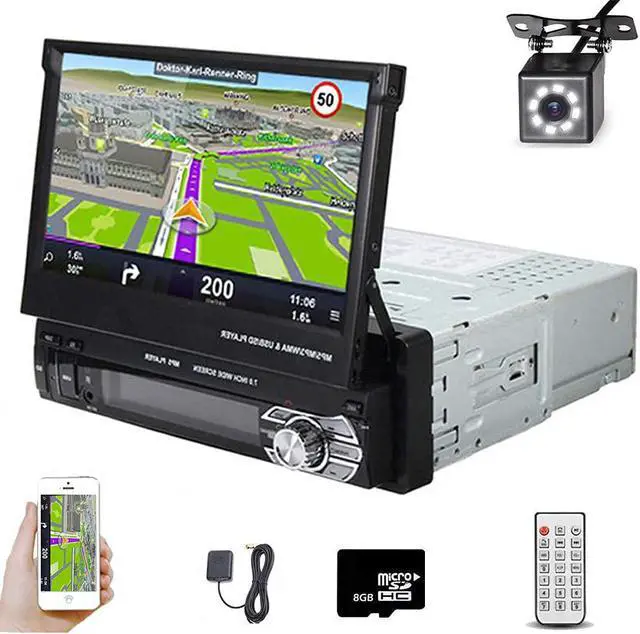

Car Stereo in Dash Single DIN 7 Inch HD Flip Out Touch Screen Radio GPS Head Unit Support Bluetooth Hands-Free GPS Navigation Mirror Link FM USB SD MP5 with Backup Camera Built-in Microphone

UNITOPSCI Single Din Car Stereo FM Radio With Bluetooth Touch Screen Car Radio Support GPS

Single DIN In Dash Car Stereo Head Unit with 7" Retractable TouchScreen Car Audio Video Receiver GPS Navigation Bluetooth FM USB SD Rear View Camera
7-inch high definition touch screen, dynamic menu interface.

Support SD card, high-speed USB2.0 interface is compatible with a variety of U disk, removable hard drive, hot-swappable.

Card-type full-function remote control. Front Audio Aux-in.

Support shuffle, repeat all, repeat single, repeat directory.

Power supply voltage: DC12V

Max Current Consumption: 15A

Max Output Power: 4*55W

Support LRC lyrics and ID3 display

Use 24Bit DAC, precision restore fidelity sound quality;

Support APE, FLAC, WAV, DIS lossless audio formats, support for high rate!

Support 24Bit 96KHz WAV format

Audio playback support: DIS, MP3, WMA, ACC, OGG, WAV, RA, AC3, MP2, AMR, etc.

Video playback support: AVI, MP4, FLV, PMP, RM, RMVB, MPG format.

Support picture browsing (JPEG format)

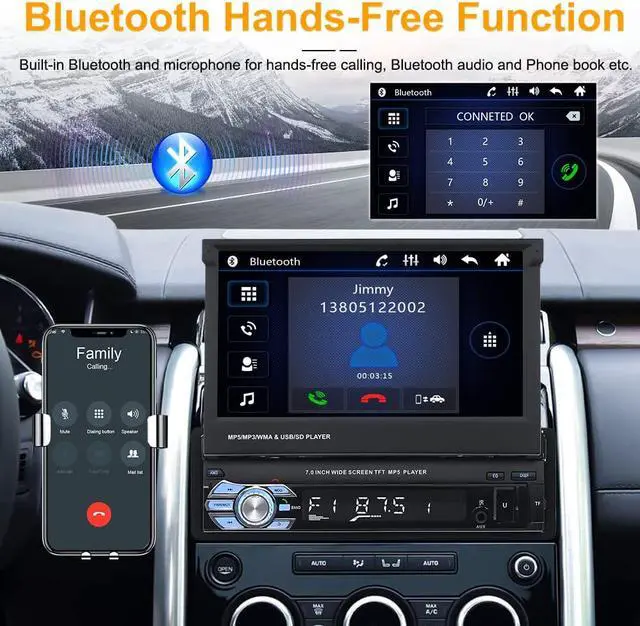

This Car Radio Supports Bluetooth Function
Built-in bluetooth, built-in microphone for making hands-free calls.

Support Bluetooth music play, auto loading phone books.

Make calls and be hands-free with no distraction

Support GPS Navigation Function

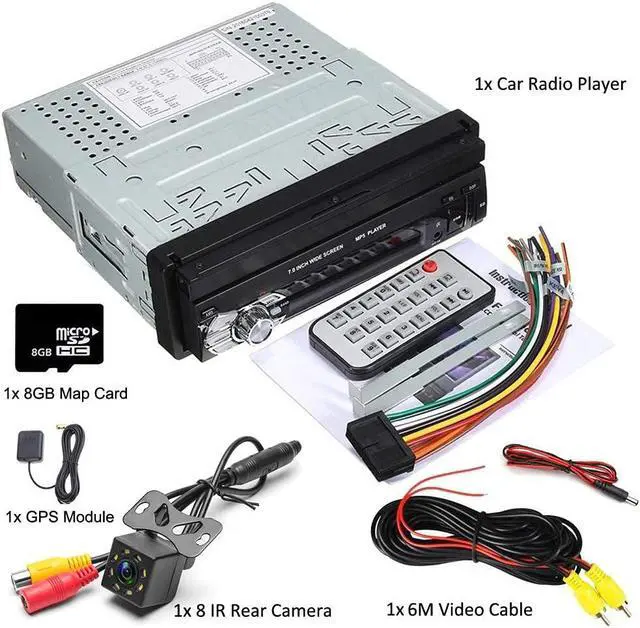

A gift for you: The radio player comes with a 8GB map card.

Preinstalled the North American map(America, Canada), supported offline map to navigation only in the North American.

Customers need to update the maps by themselves if needed.

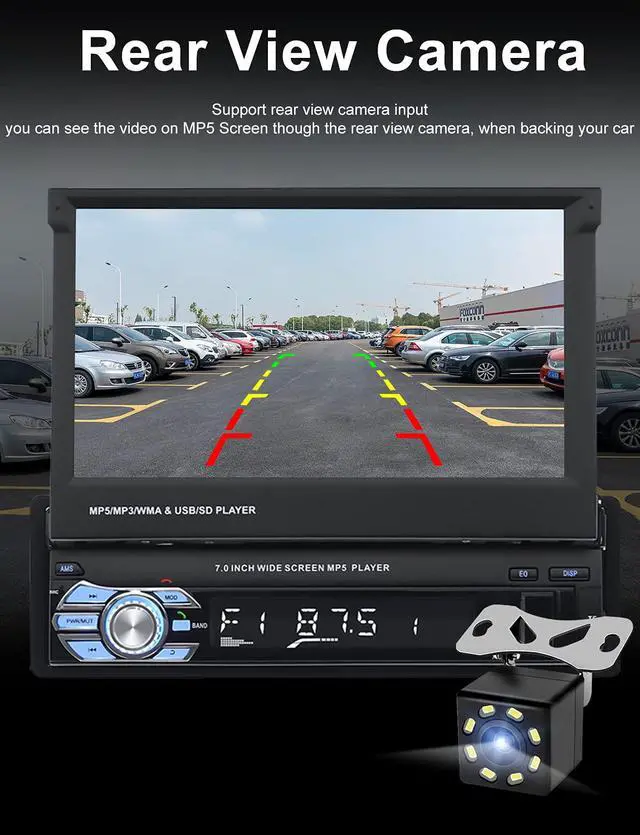

Support Rear View Camera Input
The car stereo comes with a backup camera.

When your car at reverse gear, automatically switch reversing image on screen, can protect your parking and reversing safety.

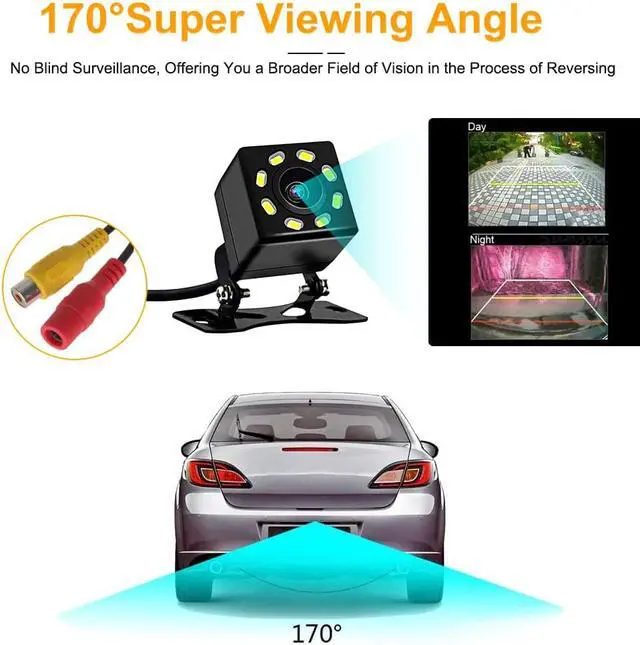

IP 67 waterproof, 170° wide angle color lens shooting of rear view camera.

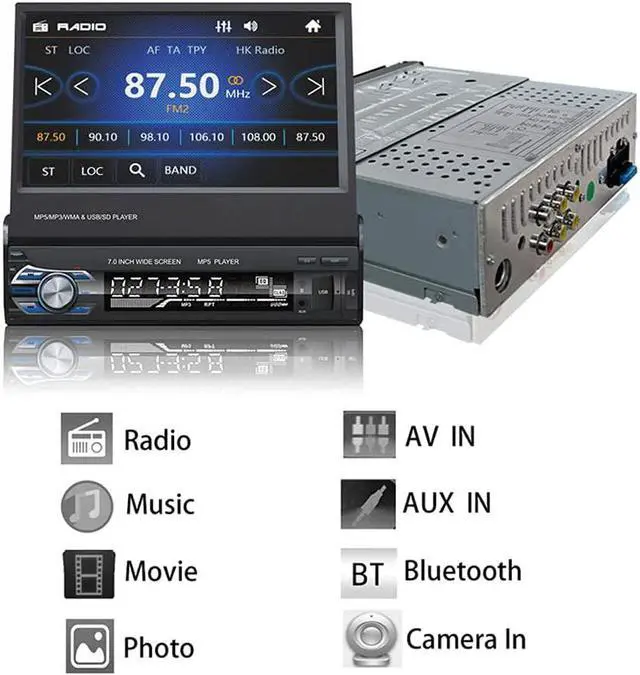

Only FM Radio Receiver
This FM radio band : FM1 FM2 FM3, you can store 18 stations.

Frequency range: 87.5-108MHz

Sensitivity: 10 dBu

I.F Frequency: 10.7 MHz

Frequency Response: 80Hz-12k Hz(+/-3dB)

Stereo Separation: >25dB

S/N Radio: >50dB

It doesn't have AM band.

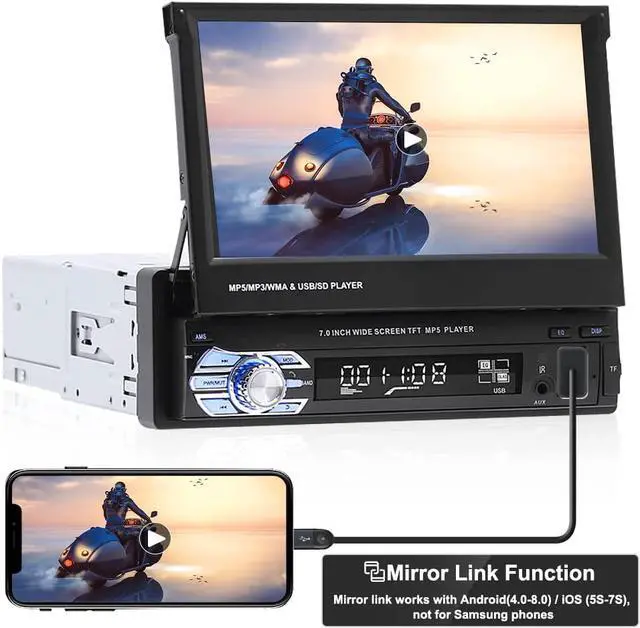

Support Mirror Link for Smart Phone
The screen of your smart phone can be mirrored on units screen.

It is compatible with Android phone(4.0-7.1), IOS version phone (5s-7s) via USB cable.

Friendly Tips: Please use your phone original USB cable to mirror link. This function doesn't support iPhone x and Samsung mobile phones.

Support Steering Wheel Control Function
Support steering wheel control, please go to "settings", "Wheel Controls" programme the buttons to active the steering function.

Located under the steering wheel, convenient for your long range control, protect your driving safety.

Friendly Tip: this functions can not work with the cars need a canbus.

More Details of the Single Din Car Radio

Important Use & Installation Tips
1. The car stereo fits in universal single din size of car dashboard, please confirm the size of your car radio on car and the wire harness before ordering.

2. The car stereo with working voltage of DC 12 V, please use the suitable voltage during installation or use.

3. You will receive an manual within 24 hours after order placement. Please check your mailbox or your Amazon message box.

4. If you don't have experience on wiring and installing the car stereo, please ask expert to complete this operation.

5. Troubleshooting: Before install the car stereo to your car (especially when you want to hire an expensive professional), please make a simple test. Please combine red and yellow line from power harness to a constant (+) 12V power source, black to (-)12V negative power source, then open the car radio. If the car radio can be opened, it will work when you install it onto your car, unless your wire connection is wrong or some wrong operation had blown the fuse.
