11.5ft Mini USB Dash Cam Hardwire Kit with 12V-24V to 5V Fuse Holders, Low Voltage Battery Drain Protection, Compatible with Apeman, Rexing, Toguard, Vantrue N2 Pro, N2, T2, N1 Pro, X4 Cameras

24/7 Parking Surveillance

Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.

Directly to the ignition wire for power only so it can turn on and off with the ignition.


Compatible 12 – 24V Vehicles

This hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.


Low Voltage Protection

Smart low voltage protection automatically shut off the power to your dash cam when the battery voltage drops to 11.6V(12V cars) or 23.2V(24V cars), thus preventing it draining the battery.

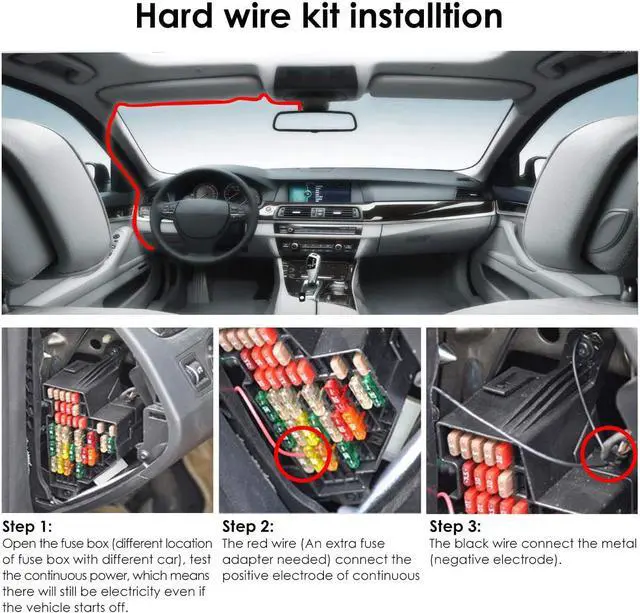

Find the Correct Fuse Slot

Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on.

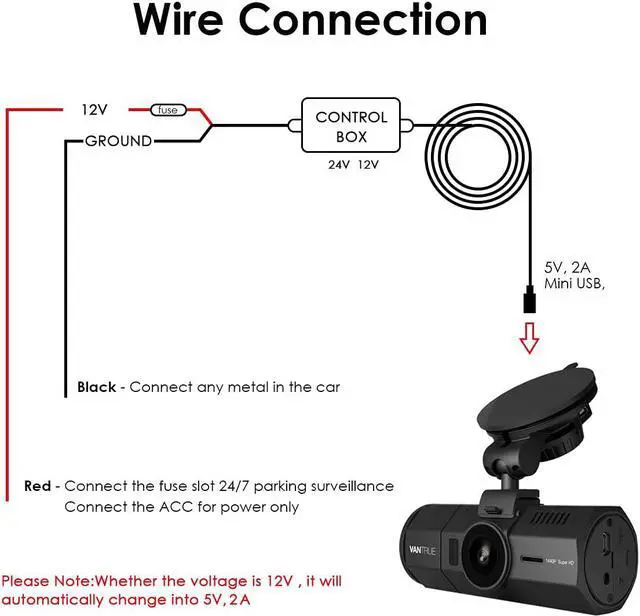

Connect the Red Wire

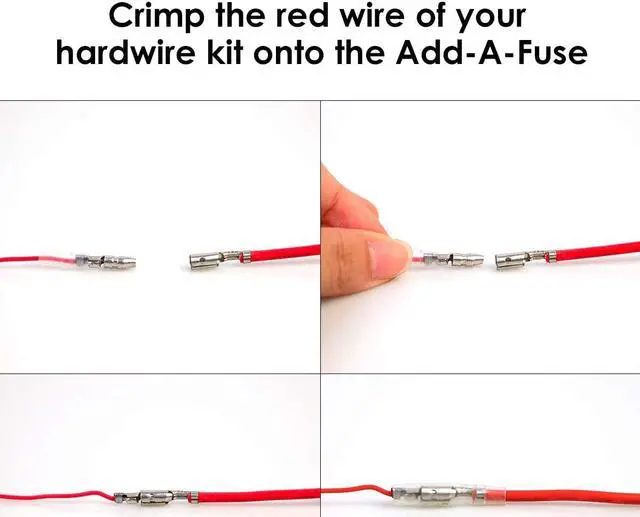

Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the add-a-circuit into the fuse box in the correct orientation.


Ground the Hardwiring Kit

Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.


Key Features

Compatible with 12-24Vdc for car or truck installations.

Perfect for 24/7 Parking Surveillance.

Low voltage protection protects against battery dying.

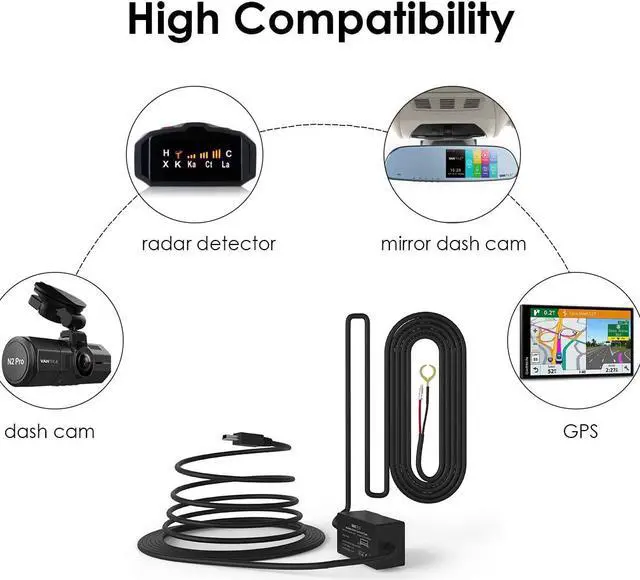

Compatible with Apeman, Rexing, Toguard, Vantrue N2 Pro, N2, N1 Pro, T2, X4, X3, X1 and all the other mini usb dash cams!

Keep 12V or 24V outlet free, charge your phone at the same time.

Less static when you’re listening to the radio. Less Complicated Install with the installation video.

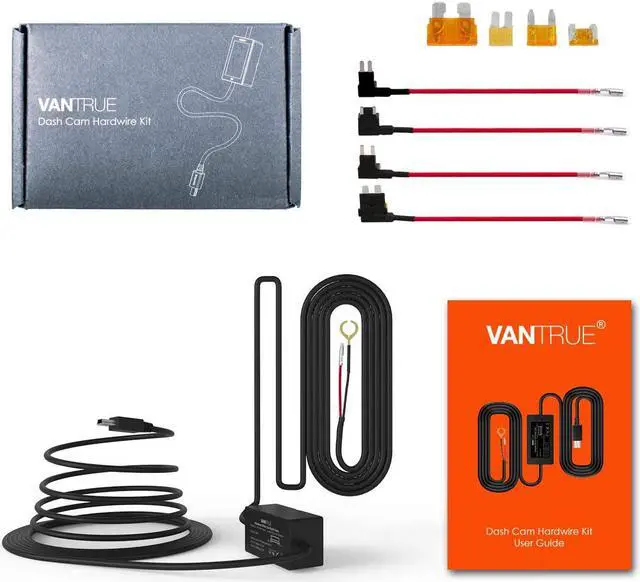

What’s in the box

Vantrue 11.5ft Mini USB Dash Cam Hardwire Kit with User Manual

Mini/LP ACN Add-A-Circuit Fuse Holder

Mini ACS Add-A-Circuit Fuse Holder

ATO ACU Add-A-Circuit Fuse Holder

Micro2 Add-A-Circuit Fuse Holder


Technical Details

Connector: Mini USB Connector

Input Voltage: DC 12V-24V

Output Voltage: 5V

Output Current: 2A

Working Temperature: -22°F to 167°F (-30°C to 75°C)

Cable Length: 11.5ft

Low Voltage Protection: 11.6V for 12V vehicle; 23.2V for 24V vehicle.
