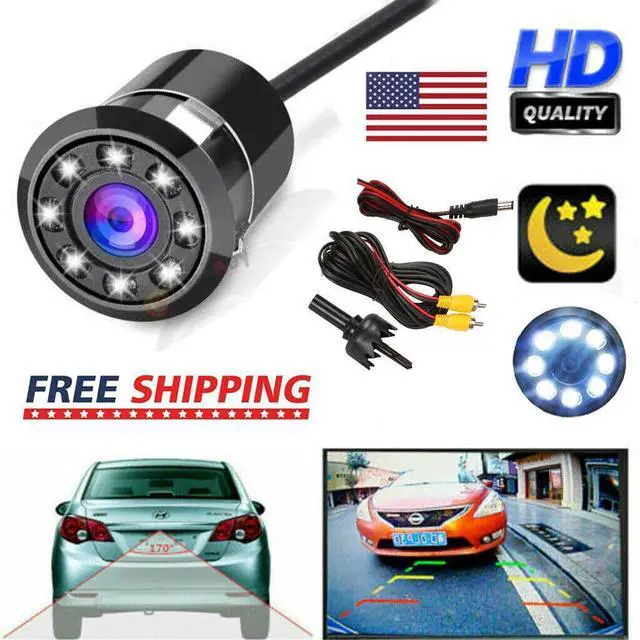

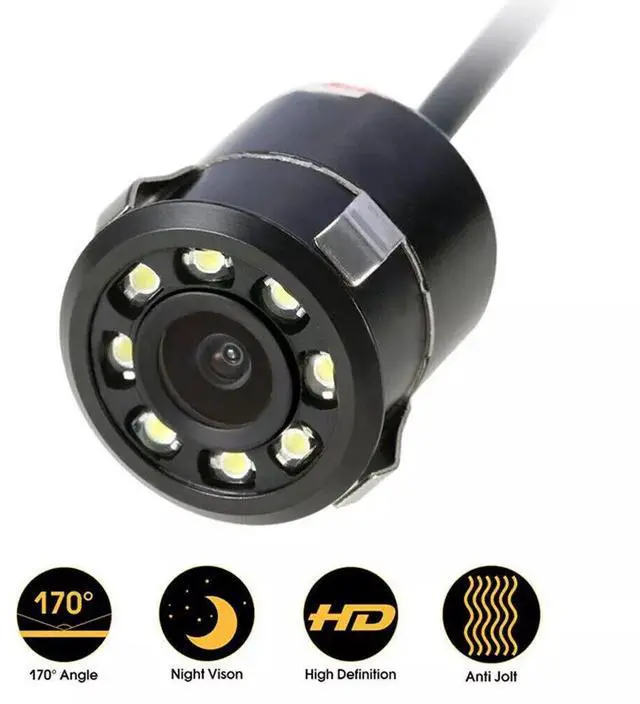

170° CMOS Car Rear View Backup Camera Reverse 8 LED Night Vision Waterproof

Features:

1. with 8 LED Lamp, will be very clearly even at night
2. compatible with DVD automobile navigation
3.170 degree wide angle, find the potential reverse in reality, such as a kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.
4. with CCD core, the video and picture will be more clear
5. waterproof, shockproof and dust proof
6. good quality and longer service time.

Specifications

:

--Image Sensors: PC1030 1/4 Inch Color CMOS
--Sensor Area: 4.08 x 3.12 mm
--Effective Pixels: 648 x 488 Pixels

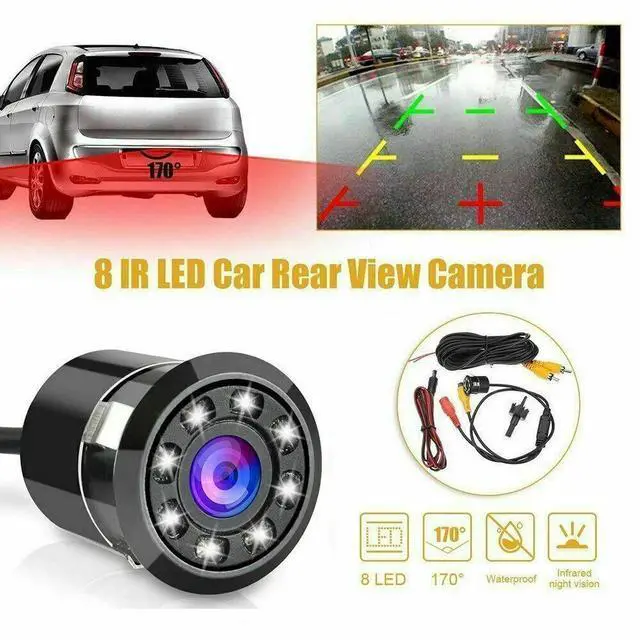

--LED Quantity: 8 IR LED

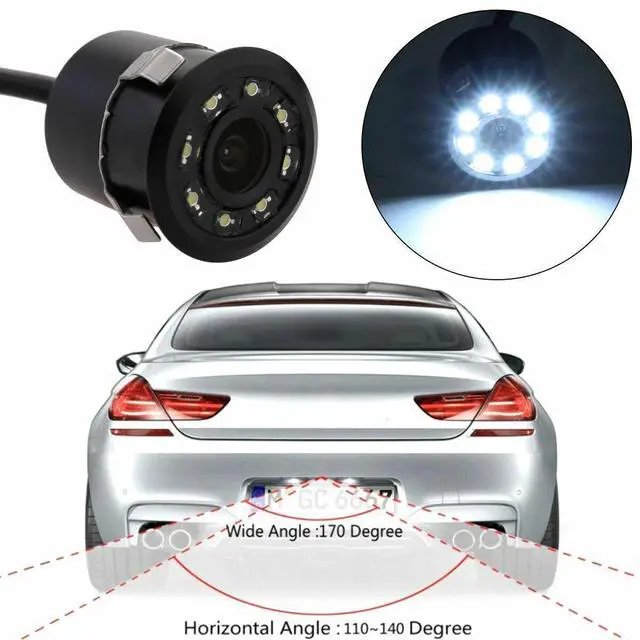

--Lens Angle: 170 / 135 degrees
--Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation
--Video System: PAL/NTSC(Automatic throw-over)
--Minimum Illumination: 0.2L ux (0Lux with IR on)
--Scanning System: 2:1 Interlace
--Resolution: 420TV lines
--Electronic Shutter: 1/60 (NTSC) / 1/50 (PAL) ~1/1000s
--Gamma Coefficient: 0.45
--S/N Ratio: > 45.6 db
--Dynamic Range: > 63.5 db
--Waterproof Class: IP 68
--Operation Temperature: -20~ +75
--Storage Temperature: -40~+85
--Video Output: RCA connector, 1.0 vp-p, 75Ohm
--Working Power: DC12V
--Current Consumption: 60mA
--Video cable length: Approx 6 m/ 236.2 inch
--Power supply cable length: Approx 1.2 m/ 47.2 inch
--Drill Hole Diameter: Approx 18.5 mm/ 0.73 inch
--Camera Dimension: Approx 25*21* 18.5 mm/ 0.98 * 0.83 * 0.73 inch

Installation:

1) Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
2) Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
3) Connect the video cable of the camera to the extension cord.
4) Connect the extension cable to the car monitor.
5) You will see the images when your car is in reverse shift.

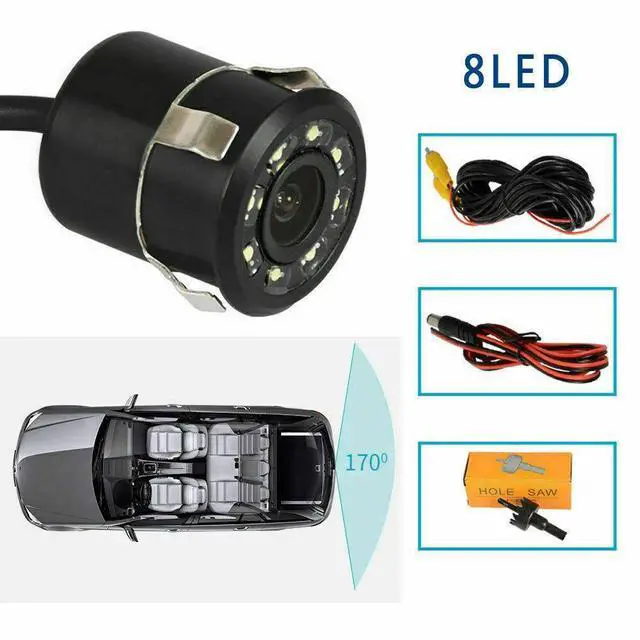

Package Included:

--Drill Hole Style Car Rear View Camera
--Video Cable
--Power Cable
--Hole Saw
