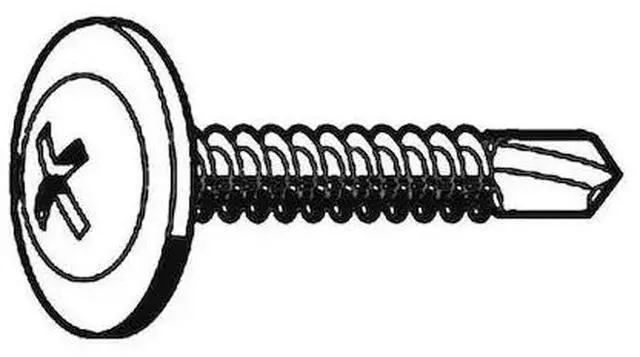

ZORO SELECT U29580.016.0125 Self-Drilling Screw, #8 x 1-1/4 in, Zinc Plated

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

The ZORO SELECT - U29580.016.0125 is a self-drilling screw designed for steel-to-steel applications. These screws are equipped with a drill point at the end, allowing them to be driven directly into materials without the need for pre-drilled holes. They are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly.

• Application: Intended for use in steel-to-steel fastening tasks.
• CAD Available: A Computer-Aided Design (CAD) file is available for accurate project planning.
• Drive & Size: Requires a Phillips #2 drive tool for installation or removal.
• Fastener Length: Measures 1-1/4 inches in length, determining its penetration depth and securing capacity.
• Finish: Zinc Plated finish is intended to improve durability, corrosion resistance, and functional properties such as grip or reduced friction during installation.

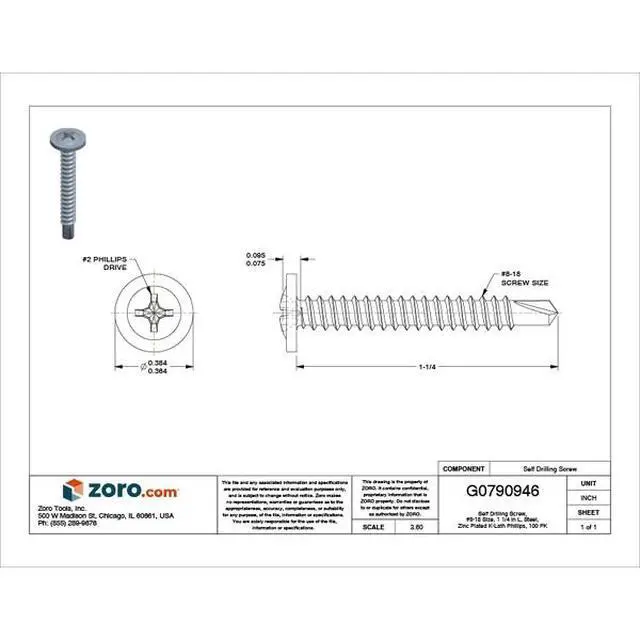

• Head Type & Dimensions: Features a wafer head type with a diameter of 0.380 inches which may aid in load distribution in applications.
• Material & Maximum Drilling Thickness: Made from steel with maximum drilling thickness of 0.136 inches suggesting potential strength and suitability for certain industrial applications
• Screw Size & Thread Style: The #8 screw size represents width and thread count; fully threaded style is intended to promote secure fastening along the entire length of the screw
• TIP Type & Standards Compliance : Equipped with BSD tip type that could be suitable for various industrial applications; adheres to SAE J78 standards indicating compliance with established technical specifications
