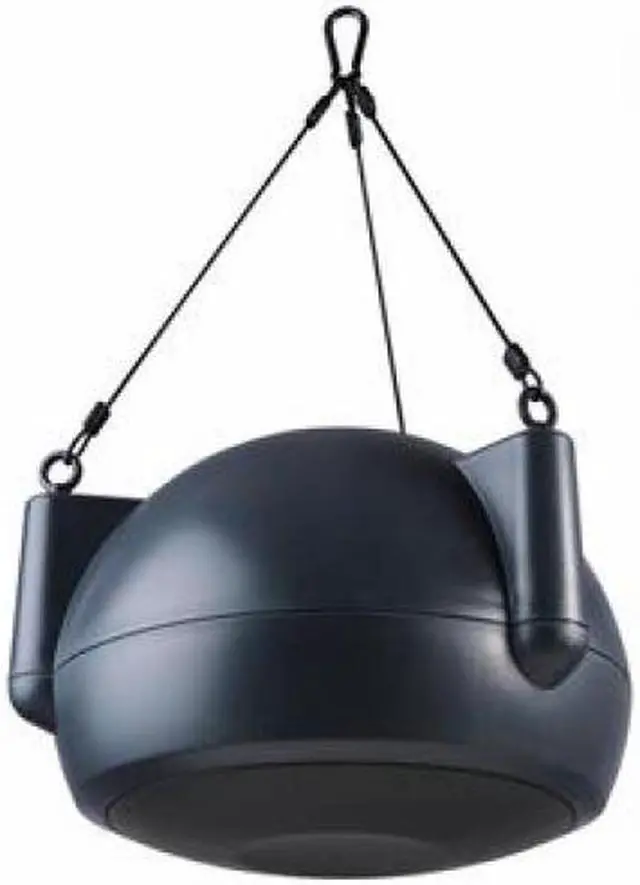

BOGEN BG-OPS1B Orbit Pendant Speaker - Black

BOGEN BG-OPS1B Orbit Pendant Speaker - Black
MPN: BG-OPS1B
UPC: 765368100396

Bogen orbit pendant speaker
The ideal choice for high ceiling and open space environments
Features NEA
Rs MLS and MDT technologies (see below), which improve sound quality and increase operating reliability
The low-distortion speaker design, featuring NEA
Rs spiderless driver and one-piece metal-alloy cone structure, delivers superb
articulation and the highest intelligibility for both music and speech
Unique MDT (Metal Diaphragm Technology): solid, one-piece cone structure eliminates the traditional dust cap, extremely stable cone structure over extended periods, fast transmission of sound through the diaphragm means low energy storage, special hard anodizing process creates a ceramic surface for increased stiffness, super-efficient thermal path for cooling the voice coil (not
paper or plastic), high rigidity and low mass versus typical paper or plastic cones
MLS (Magnetic Liquid Suspension): magnetic liquid (Ferrofluid) injected into magnet gap, constant lubrication of the gap prevents oxidation from occurring, voice coil is most efficiently cooled by fluid path rather than air, lower distortion via stronger centering forces on voice coil, increased reliability, particularly in high power daily use systems, wide dispersion coaxial driver for broad, even 140 degree coverage, stable, high definition metal-alloy cone
High-efficiency drivers deliver superior performance
Extremely good off-axis response
Computer-matched venting system for full bass output
High power handling capability for foreground sound
Selectable power taps via front-mounted control
16-ohm input for non-transformer multi-speaker systems
Easy wiring with snap-on connector
Connector provides loop-through to next speaker
Easy to use cable suspension system that includes three suspension cables with attached forged eyebolts
Threaded brass insert point for optional safety cable eye bolt
Low-resonance cabinet structure
Off-white or dark gray textured finish; easily painted to match theme decors
Attractive, contemporary, sturdy steel grille assembly with fine perforations
Accessory 10-foot long cable kit for use as main drop cable or safety cable (Model CK10 sold separately)
Frequency response: (-10 dB)* 45 Hz to 19 kHz
LF Driver 6-1/2" MDT metal-alloy cone (MLS voice coil centering system)
HF Driver 20mm (3/4") polycarbonate dome
Sensitivity: (1W/1M) 89.5 dBspl (Average 100 Hz - 10 kHz)
Impedance ratings: low (16 ohms) / high (70V/100V)
Power input (max. ) 100W @ 16 ohms; 32W @ 70V/100V
Power settings (in watts):
70V: 32, 16, 8, 4, 2, 1
/ 100V: 32, 16, 8, 4, 2
Enclosure material fire-rated (94VO) ABS
Grille material powder-coated perforated metal
Terminations: 4 terminal snap-lock input connector
Product weight: 10lbs
Speaker dimensions: 15" dia. x 9-1/4" D
Includes: (3) suspension cables; (3) forged eye bolts; (3) nuts; (1) quick-snap clip; (1) snap-lock input connector
Black
BGOPS1
