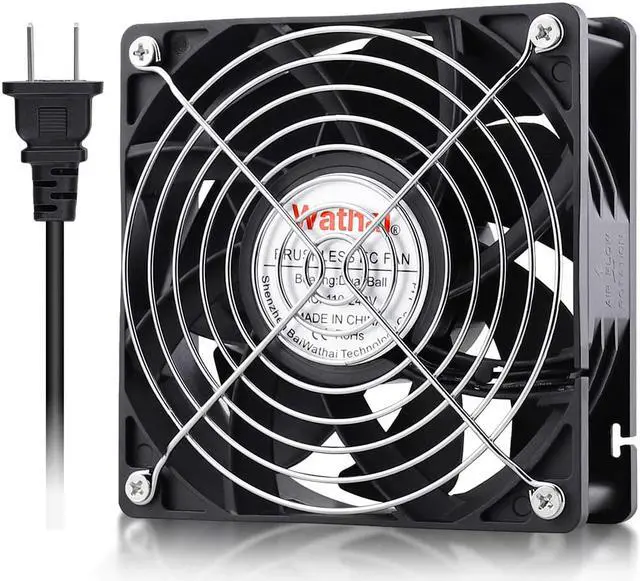

EC Industrial Case Fan 120mm x 38mm Ball Bearing AC 110V 115V 120V 220V 240V Brushless Cooling Fan
- Item #: 9SIV36AKE32723
- Mfr. Part #: SL-TGB91-1
- UNSPSC: 40101604

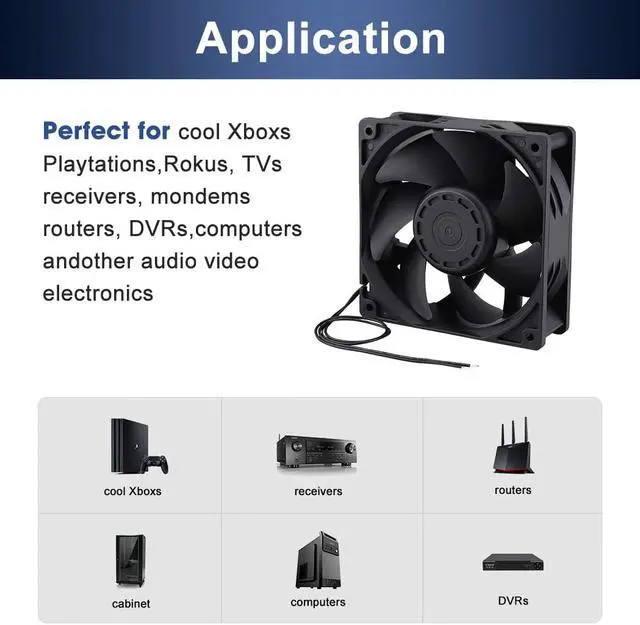

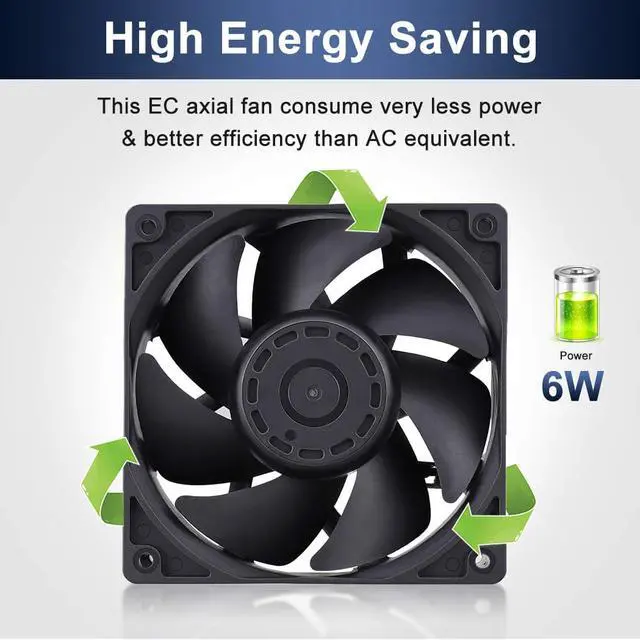

- This EC axial fan consume very less power & better efficiency than AC equivalent. Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
- Warranty: One-year quality assurance. Please contact us If the product has any quality problems, it will be replaced within one year.

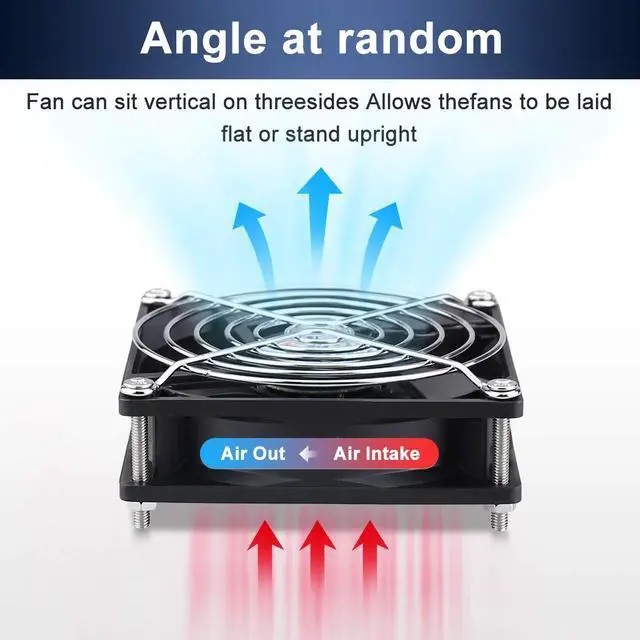

- Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright

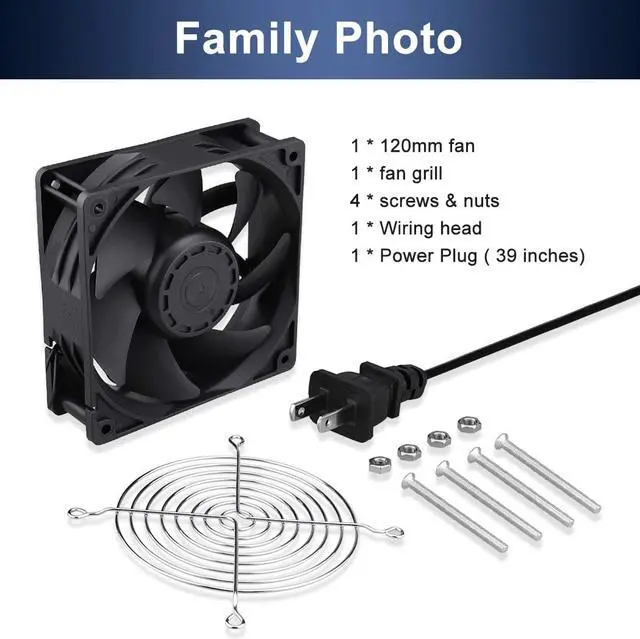

- Package include: 1 Piece fan include fan grill and mounting screws & nuts; 2* leadwires(about 38 inches); 1* Power Plug

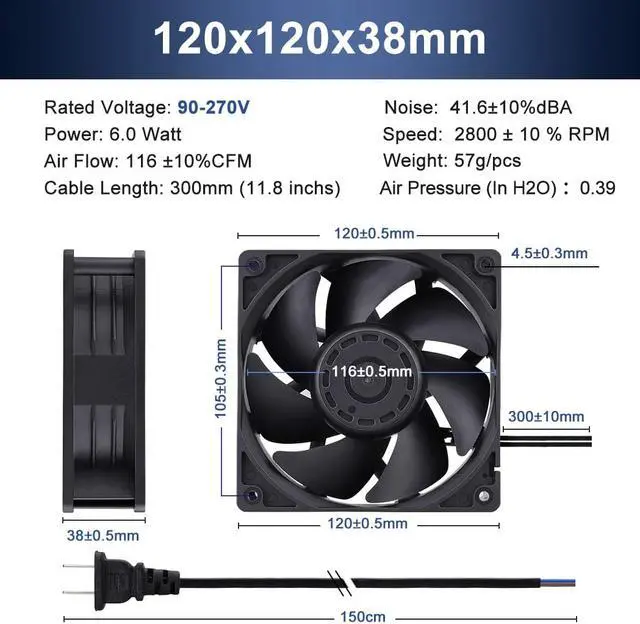

- 120 x 120 x 38 mm ( 4.72 x 4.72 x 1.5 in. ) | Rated Voltage :90V to 270V | Airflow: 116 ±10%CFM | Power: 6.0W | Speed: 2800 RPM
+
+
Overview
Specs
Reviews
Product description
EC Fan What is EC technology?
EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds; the motor runs on a DC voltage, but with a normal AC supply.
EC motors have several benefits. Because EC motors have no brushes, they do not spark or have a short life due to brushes. Other advantages include the fact that they do not waste power because the electronics control the stator; they provide better performance and controllability, and they run cooler than induction motors; In terms of size, small motors can achieve the same output as traditional DC or AC motors.
Power distribution is much cleaner with an EC motor. Brushless DC motors depend on a separate DC power supply. And an AC motors power supply usually adds extra cost and complexity. EC motors can connect directly to AC main power supply with their integrated electronics. They do not completely depend on voltage or frequency; hence, small changes in voltage do not affect motor output.
The EC fan is more windy than the AC fan, more energy efficient, and can work in the 70V - 270V voltage range, such as work under on 110V, 115,120V, 220V, 240V ,the fan speed are the same.
Product detail
Durable plastic material
The EC fan can work in the 70V - 270V voltage range, such as work under on 110V, 120V, 220V, 240V ,the fan speed are the same.

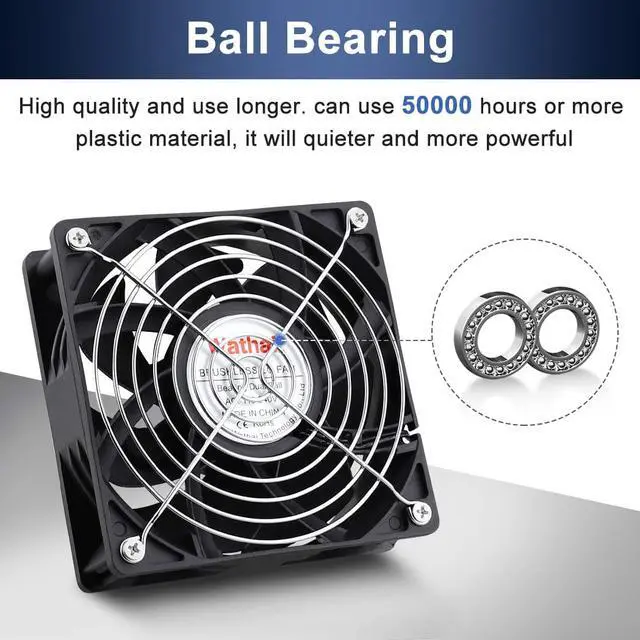

Dual-Ball Motors
Dual-ball bearings rated at up to 67,000 hours allows the fans to be mounted flat or upright.
Fan Filter
Protect your fingers, and keep fan blade without damage ; wear-resistant and not easy to break.
Components
Plug :The power plug needs to be connected to the fan cable, and then into it a wall outlet to start the fan . 59 inch.
Wiring head :Connect fan cable and extension cable.
EC Fan What is EC technology?
EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds; the motor runs on a DC voltage, but with a normal AC supply.
EC motors have several benefits. Because EC motors have no brushes, they do not spark or have a short life due to brushes. Other advantages include the fact that they do not waste power because the electronics control the stator; they provide better performance and controllability, and they run cooler than induction motors; In terms of size, small motors can achieve the same output as traditional DC or AC motors.
Power distribution is much cleaner with an EC motor. Brushless DC motors depend on a separate DC power supply. And an AC motors power supply usually adds extra cost and complexity. EC motors can connect directly to AC main power supply with their integrated electronics. They do not completely depend on voltage or frequency; hence, small changes in voltage do not affect motor output.
The EC fan is more windy than the AC fan, more energy efficient, and can work in the 70V - 270V voltage range, such as work under on 110V, 115,120V, 220V, 240V ,the fan speed are the same.
Product detail
Durable plastic material
The EC fan can work in the 70V - 270V voltage range, such as work under on 110V, 120V, 220V, 240V ,the fan speed are the same.
Dual-Ball Motors
Dual-ball bearings rated at up to 67,000 hours allows the fans to be mounted flat or upright.
Fan Filter
Protect your fingers, and keep fan blade without damage ; wear-resistant and not easy to break.
Components
Plug :The power plug needs to be connected to the fan cable, and then into it a wall outlet to start the fan . 59 inch.
Wiring head :Connect fan cable and extension cable.
