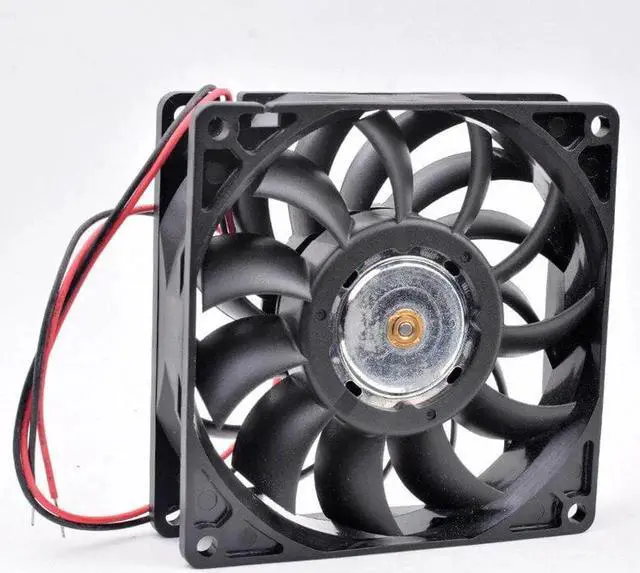

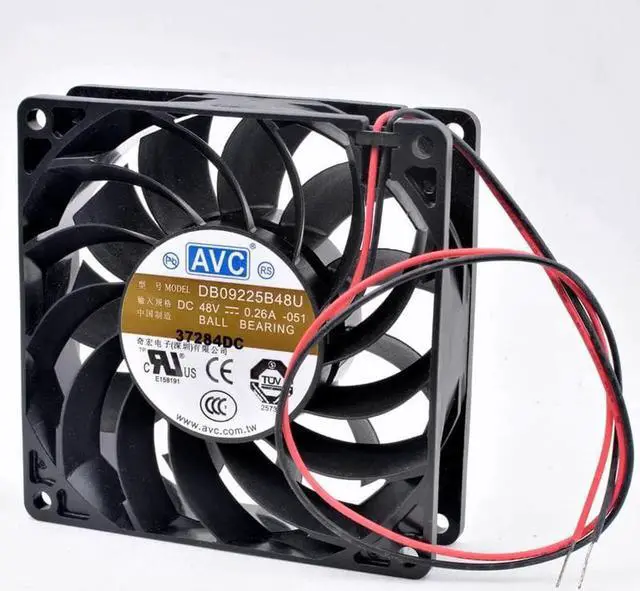

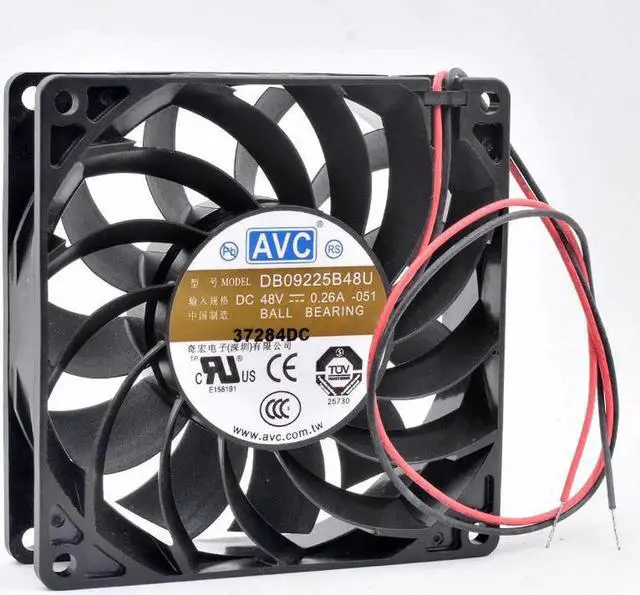

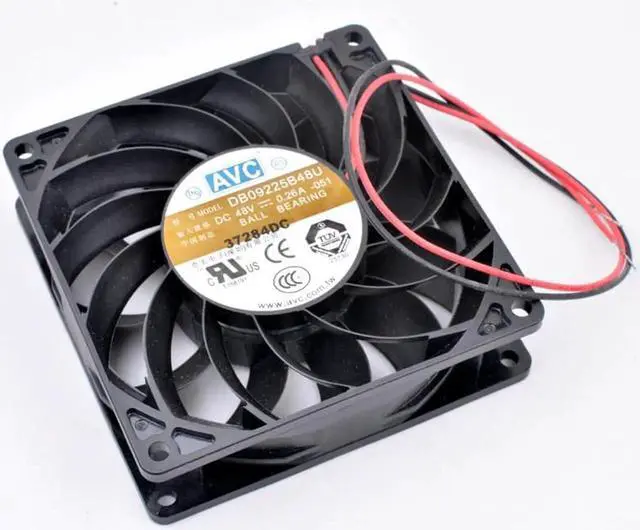

DB09225B48U 9cm 92mm fan 92x92x25mm DC48V 0.26A Cooling fan for server inverter
- Item #: 9SIVN2JKNZ0041
- Mfr. Part #: ll-2580
- UNSPSC: 40101604
- [Size] 92*92*25mm (frame side length*side length*thickness)
- Input voltage48V
- Voltage Range28V-53V
- Input current0.26A
- Power8.16W
- [Speed] 3700 RPM (revolutions per minute)
- [Maximum air volume] 81.97 CFM (cubic feet per minute) = 2.321 m3/min (cubic meters per minute)
- [Maximum wind pressure] 0.319 inH2O (inch/water column) = 8.11mmH2O (mm/water column)
- Noise48.2 d-BA (decibel)
- [Motor bearing type] Axial fan
+
+
Overview
Specs
Reviews
[Size] 92*92*25mm (frame side length*side length*thickness)
Input voltage48V
Voltage Range28V-53V
Input current 0.26A
Power 8.16W
[Speed] 3700 RPM (revolutions per minute)
[Maximum air volume] 81.97 CFM (cubic feet per minute) = 2.321 m3/min (cubic meters per minute)
[Maximum wind pressure] 0.319 inH2O (inch/water column) = 8.11 mmH2O (mm/water column)
Noise 48.2 d-BA (decibel)
[Motor bearing type] Axial fan
