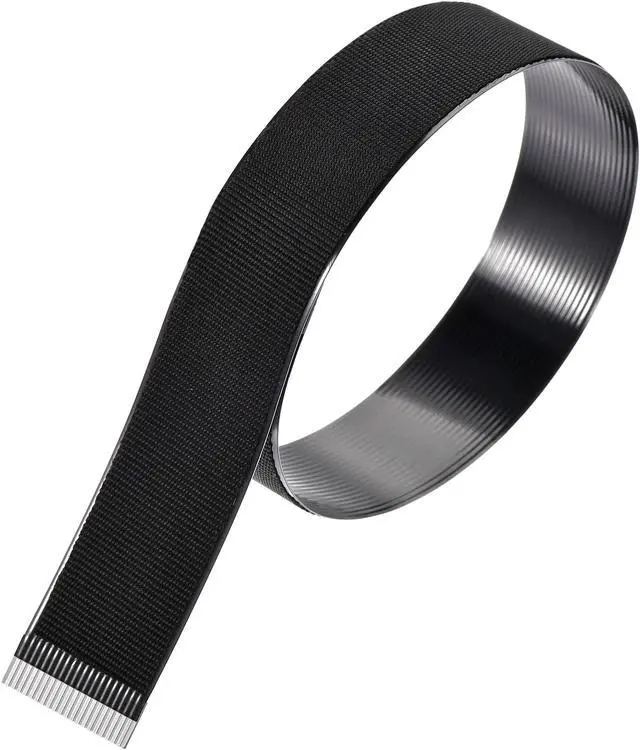

FPV FFC Cable 20 Pin 0.5mm Pitch 15cm Length B Type Flat Ribbon Cable 2pcs
- Item #: 9SIV0KKE8N3566
- Mfr. Part #: a20091100ux0336
- [ PARAMETER ]Model: dedicated flat cable; Type: B Type, Pin on the Opposite Side; 0.5mm Pitch; 20 Pin; Overall Size: 150mm x 10mm / 5.9" x 0.39"(L*W).
- [ FEATURE ] The flat flexible cable (FFC) is an accessory, it is designed for connecting your board of the video device.

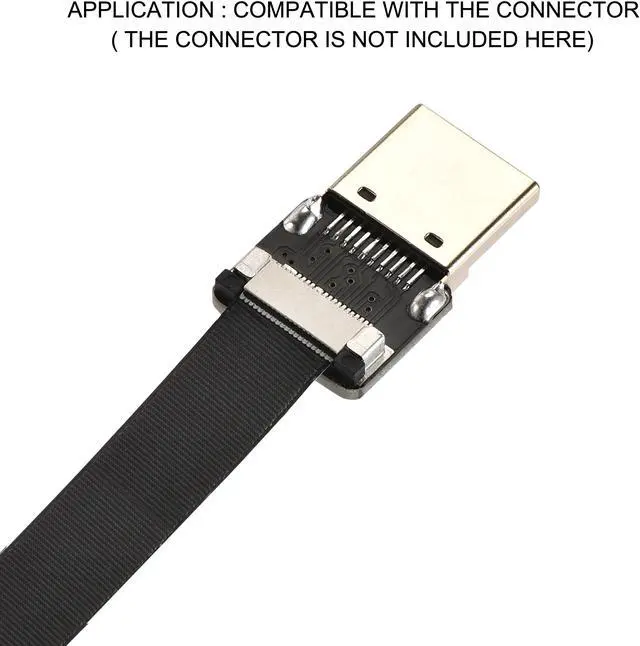

- [ APPLICATION ] It is typically matched to brushless gimbal, steering gimbal, handheld gimbal, monitoring, etc...And it is widely used for RPi Camera, FPV, monitor and other DIY audio, video equipment, etc..

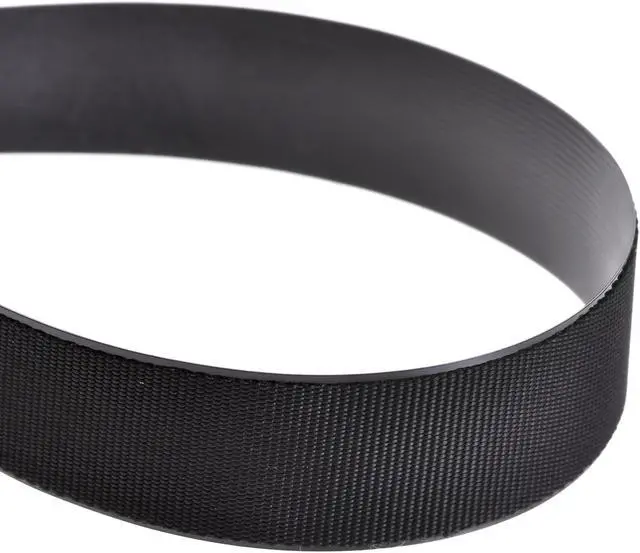

- [ ADVANTAGE ] The each end cable is reinforced with a stiffener to make insertion easier or to provide strain relief.It is a super lightweight cable for your DIY project.
- [ NOTE ] The flat cable suit for transfer the pictures of 1080p. It does NOT transfer a 4k resolution picture.
+
+
Overview
Specs
Reviews
Description: The flat flexible cable (FFC) is an accessory, it is designed for connecting your board of the video device. The ribbon cable suit for transfer the pictures of 1080p. "B Type" flat cable means --- the contacting side of the 2 top pin is on the opposite side(One towards to up, the other towards to down). The each end cable is reinforced with a stiffener to make insertion easier or to provide strain relief. It is a super lightweight cable for your DIY project.
Note: The flat cable does NOT transfer a 4k resolution picture.
Application: The flat cable is widely used for RPi Camera, FPV, monitor and other DIY audio, video equipment, etc... It is typically matched to brushless gimbal, steering gimbal, handheld gimbal, monitoring, etc... The FFC (Flexible Flat Cable) usually refers to the extremely thin flat cable often found in high density electronic applications like laptops and cell phones.

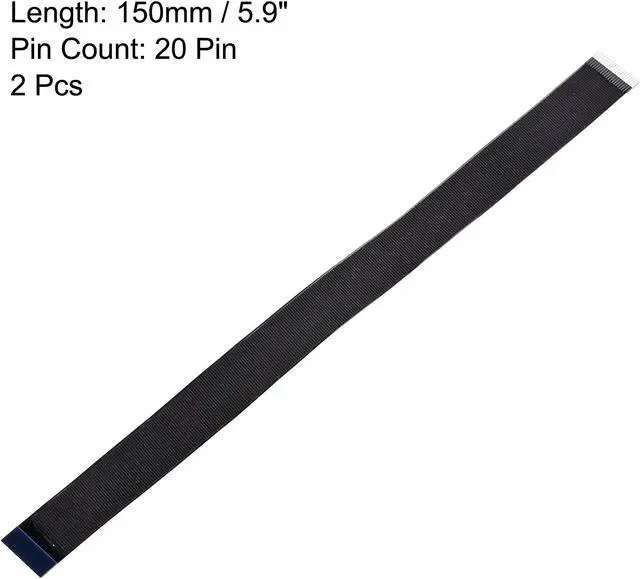

Specification:
Type: B Type, Pin on the
Opposite SidePin Count: 20
PinPitch: 0.5
mmLength: 150mm / 5.9 inchMain
Color: BlackOverall
Size: 150mm x 10mm / 5.9" x 0.39" (L*W)
Package Content: 2 x Flexible Flat Cable
Note: The flat cable does NOT transfer a 4k resolution picture.
Application: The flat cable is widely used for RPi Camera, FPV, monitor and other DIY audio, video equipment, etc... It is typically matched to brushless gimbal, steering gimbal, handheld gimbal, monitoring, etc... The FFC (Flexible Flat Cable) usually refers to the extremely thin flat cable often found in high density electronic applications like laptops and cell phones.
Specification:
Type: B Type, Pin on the
Opposite SidePin Count: 20
PinPitch: 0.5
mmLength: 150mm / 5.9 inchMain
Color: BlackOverall
Size: 150mm x 10mm / 5.9" x 0.39" (L*W)
Package Content: 2 x Flexible Flat Cable
