Mini ARGB PC Fans Controller Kit for Rainbow Case Fans, PC Rainbow LED Strip, Computer ARGB Fans (3-Pin, 14 Key Remote, SATA Power, B Series)

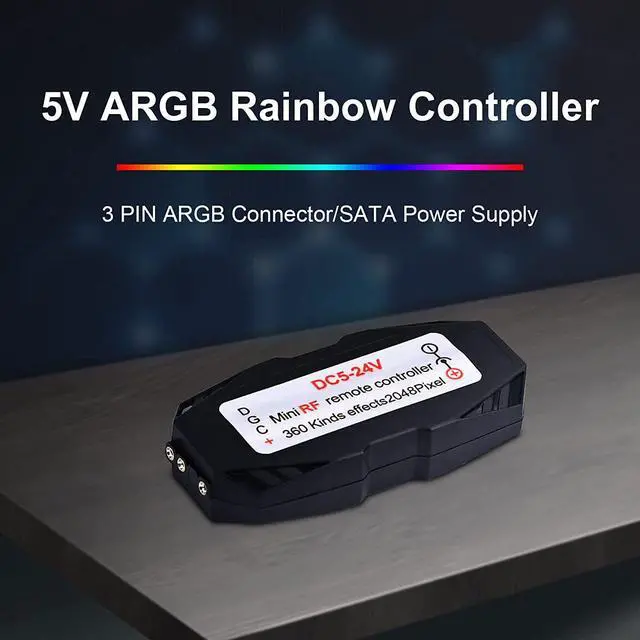

DS Mini Rainbow RGB Controller Kit.

LEDdess the mini Rainbow RGB Controller have provided SATA cable, can support All of PSU model. Furthermore, users can use the included RF remote control to easily select preferred Rainbow RGB lighting effects, colors and color change speed; no software or APP is required. So there is no need to worry because the motherboard does not have a lighting control system, DS mini 3pin controller helps you solve this problem.


3PIN Receiving Controller

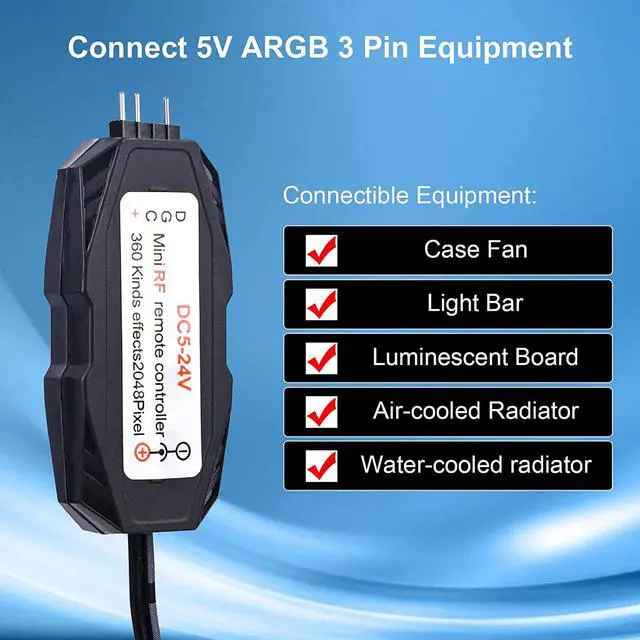

Can control ARGB Fan or ARGB Light Strip or ARGB Device with 3PIN-ADD-Header.

Note:

1. Can't connect to the motherboard;

2. Make sure your fan connector is 3PIN-ADD-Header.

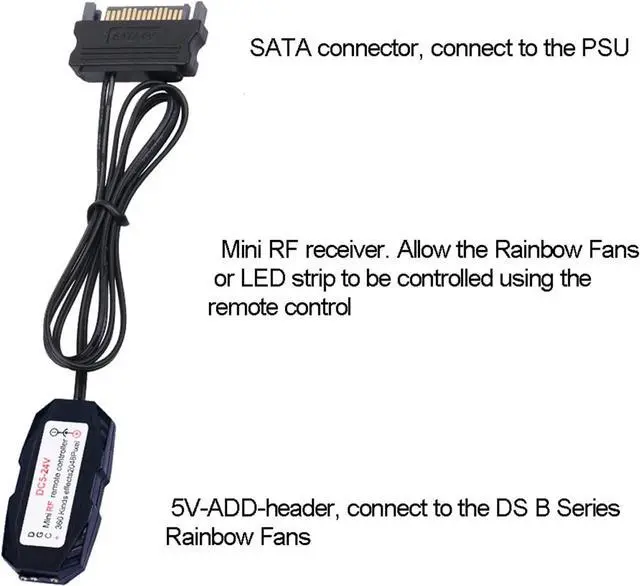

SATA Input Connector

Input SATA connector, Support All of the PSU Models.

Note:

SATA connector has three sets of voltage: 5V, 12V, 3V;

This product only supports 5V voltage. When you use Molex to SATA cable, please use 4pin Molex connector.

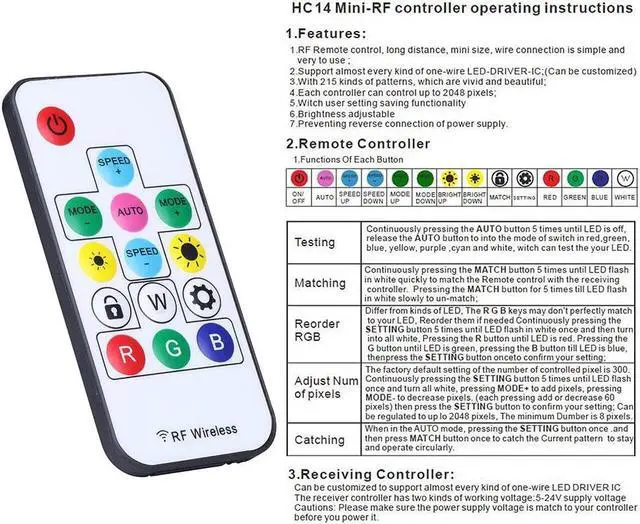

14KEY Remote

1. With 215 kinds of patterns and 7 static light colors, which are vivid and beautiful;

2. Each controller can control up to 2048 pixels;

3. Witch user setting saving functionality;

4. Brightness adjustable;

5. Modes adjustable.

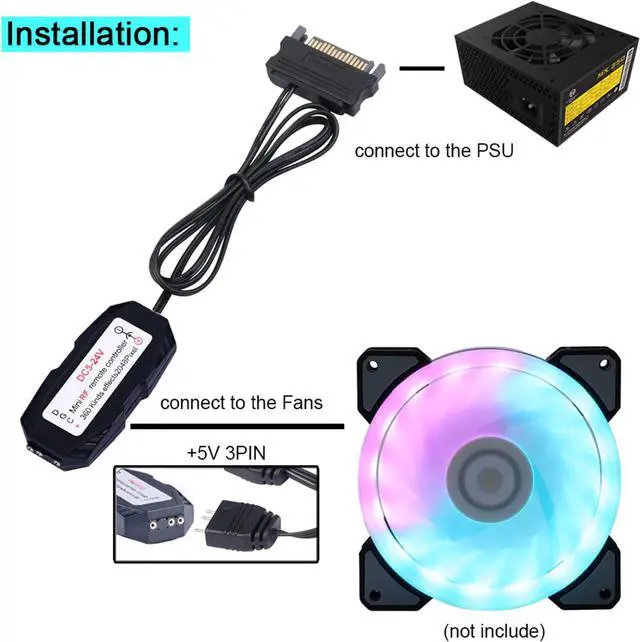

Installation:

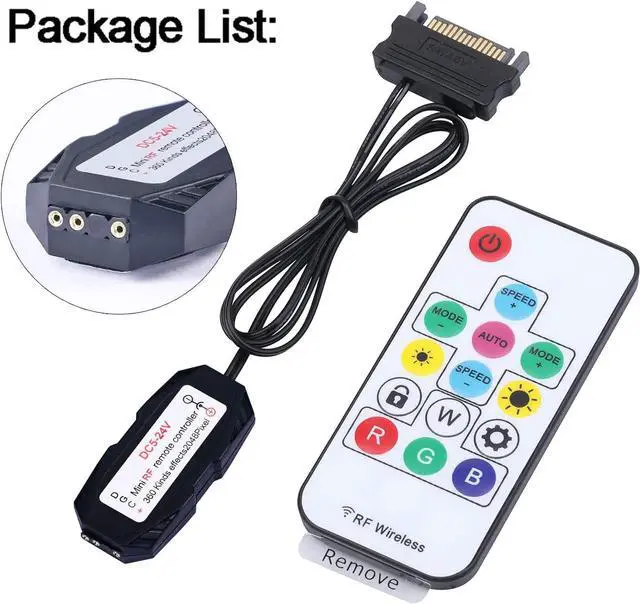

Make sure that you have all the parts mentioned in the package list.

Connect the SATA connector to PC power supply and other one connect to DS B Series Rainbow Fans the 3pin-ADD-header or other product have 3pin-ADD-header.(Notice: RF receiver on the control box show be seen so that you can use remote controller change light colors.)
