2U 19 Inch DIN Rail Chassis Bracket, Depth Adjustable Aluminum Rackmount Kit & Rails for 35mm DIN-Rail Devices, Ethernet Switch & Media Converter Shelf

The 19'' Rack Mount DIN Rail Kit comes with a 35mm ( 1.38 ) DIN-Rail track and M6 Cage nuts and screws for easy installation in your cabinet

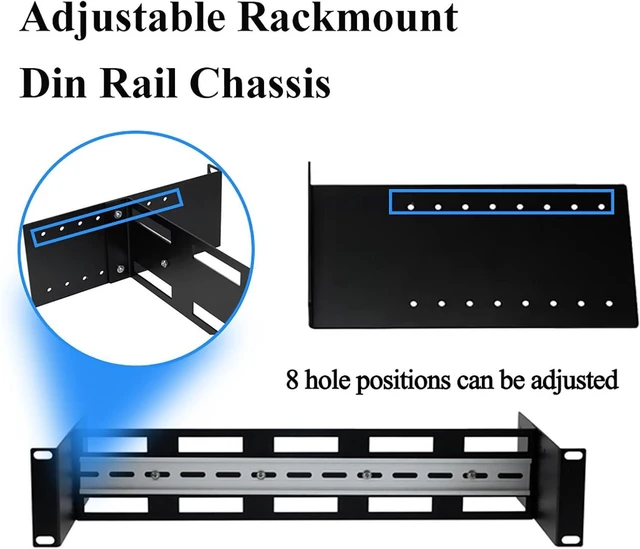

With unique depth adjustment design, the DIN Rail Rack Bracket has 8 levels of depth ranging from 48mm to 174mm, making it suitable for all DIN-Rail devices with a depth less than 174mm

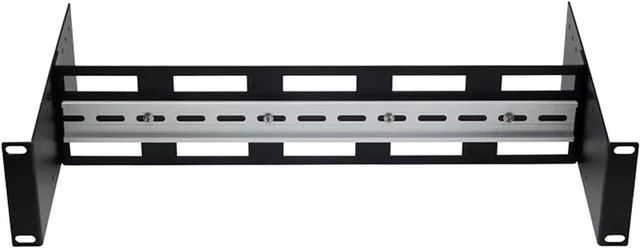

19 Inch Rackmount Din Rail Chassis in Cabinet Bracket for 35mm Din-Rail Mount Devices

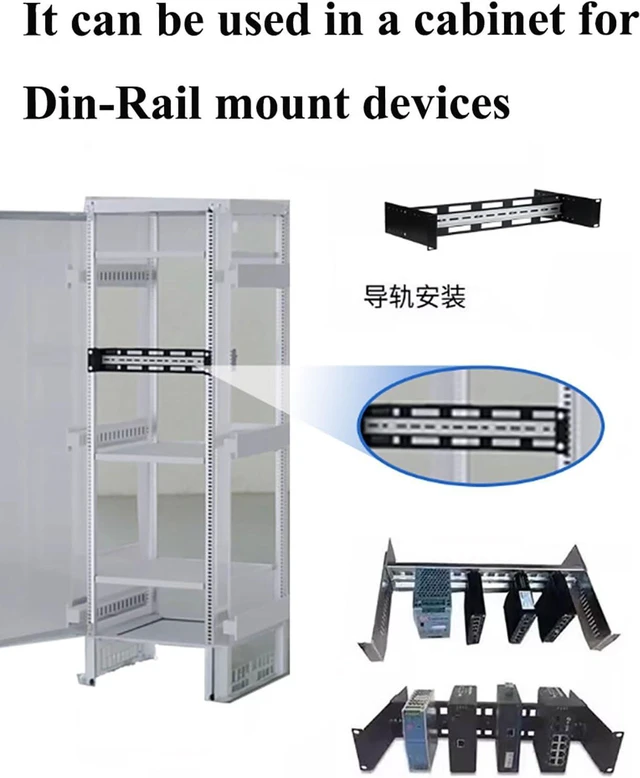

The Din Rack Bracket is installed in a standard 19 rack cabinet to allow DIN-Rail mounted equipment to be rack mounted
The maximum weight of the frame is 15kg
Aluminum alloy shell, durable, corrosion resistance, superior performance
The size is 19inch
It can be installed into a 19-inch din rail cabinet and supports variousin din-rail mount devices
DIN-Rail devices inside a standard 19in rack or cabinet

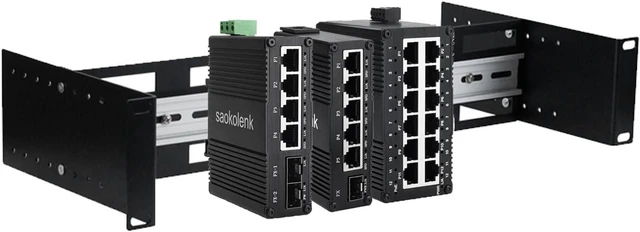

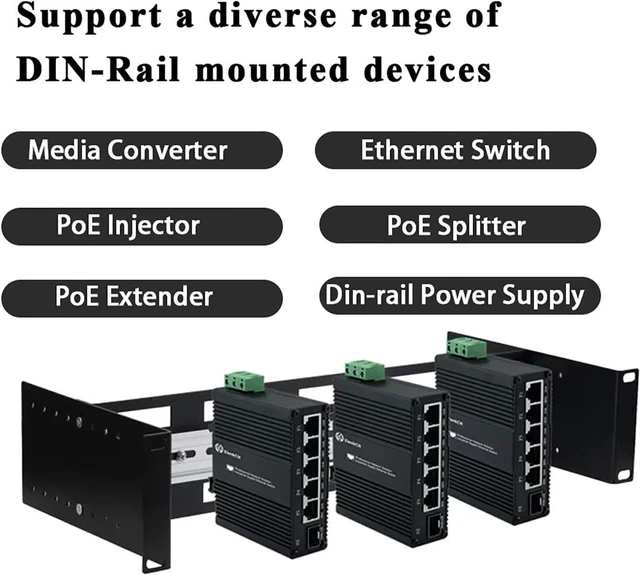

This DIN-Rail Rack Chassisis suitable for a variety of industrial applications, including Industrial Ethernet switches, Industrial media converters, DIN Rail power supplies, circuit breakers, DIN Rail surge protectors, and more.
One standard 35mm ( 1.38" ) DIN-Rail track included
Assembly Guide
Fasten the Rack Holder on DIN-Rail Chassis with M3 Screw
After the Din Rack Bracket assembled, install it in a standard 19" rack or cabinet ues the M6 Rack Screw.

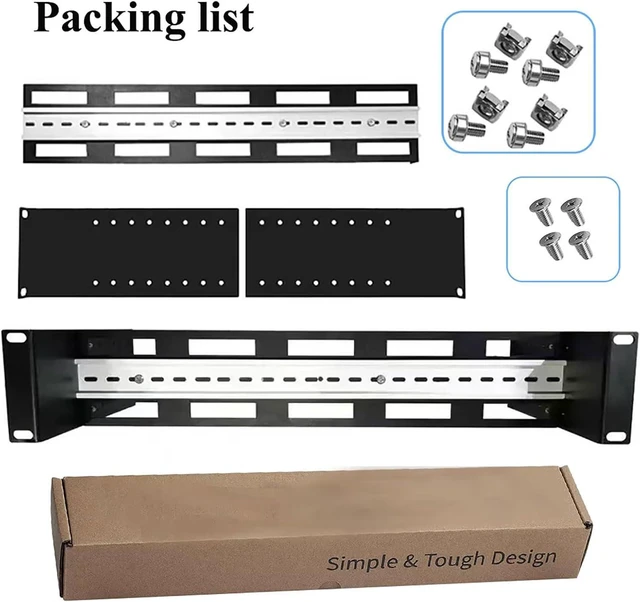

Package
Rackmount DIN-Rail Chassis *1 set
M6 Screws *4 sets
M3 Screws *6 pcs + Screw cap *4 pcs
DIN-Rail Chassis User Manual * x 1 pcs
