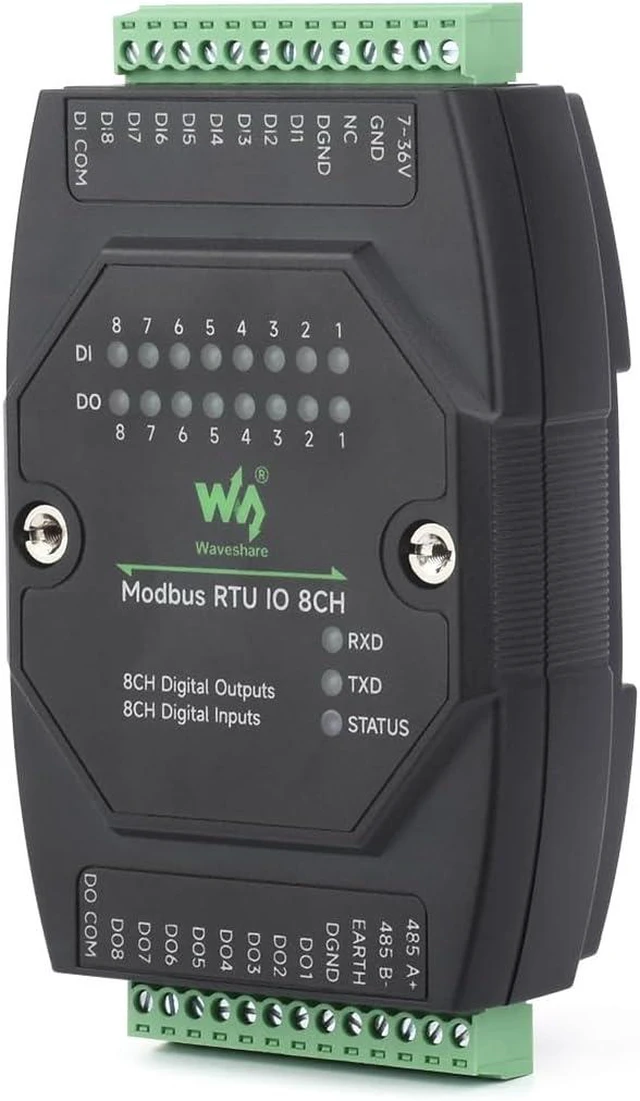

Industrial 8-Channel Digital Input & Output Module, Modbus RTU, DC 7-36V, Rail-Mount

Item #: 9SIVTEXM886355
Mfr. Part #: WUQD8ZMO63KEBWS

Be the first to review this product...

Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference

Overview

Specs

Reviews

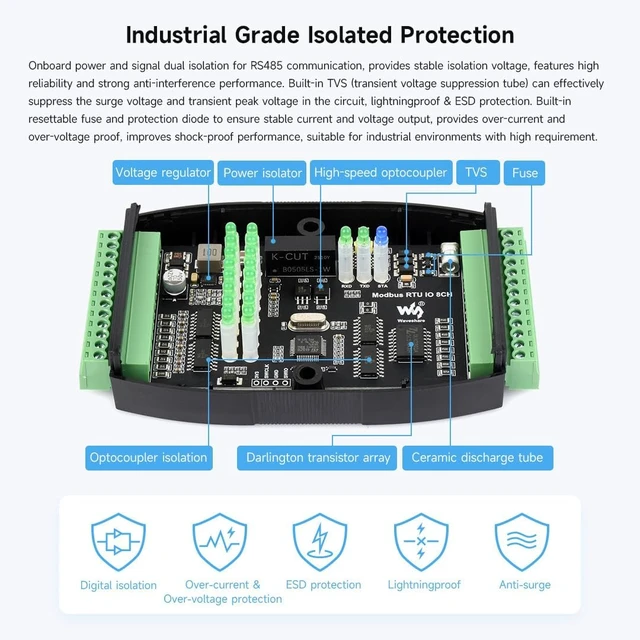

Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic

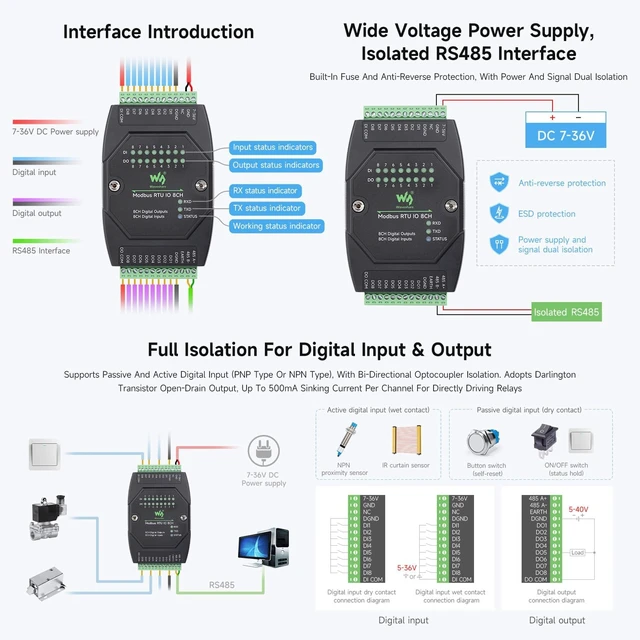

Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. Supports DI/DO linkage control or DO toggle control
The output utilizes Darlington transistors with optocoupler isolation, provides stronger driving capability with up to 500mA sinking current, built in flyback diode protection

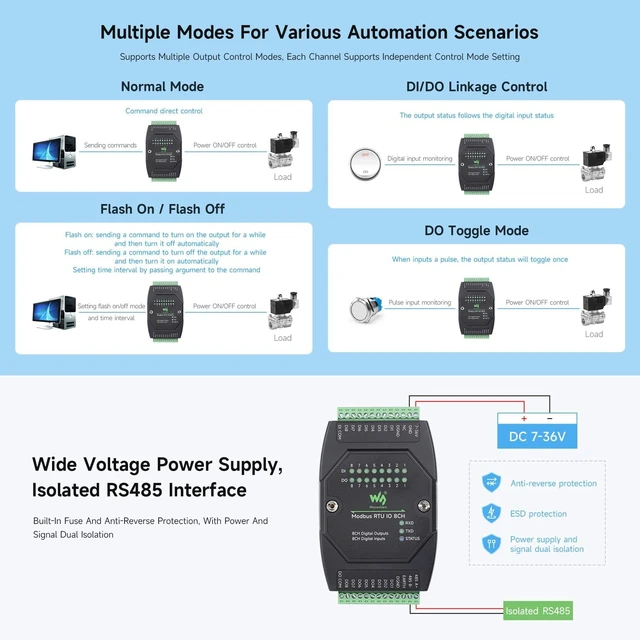

Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the output for a while and then close it automatically
Rail-mount case design, support stacking combination, easy to install and safer to use
Multiple LEDs for indicating the input & output status, MCU status and signal transceiving status
