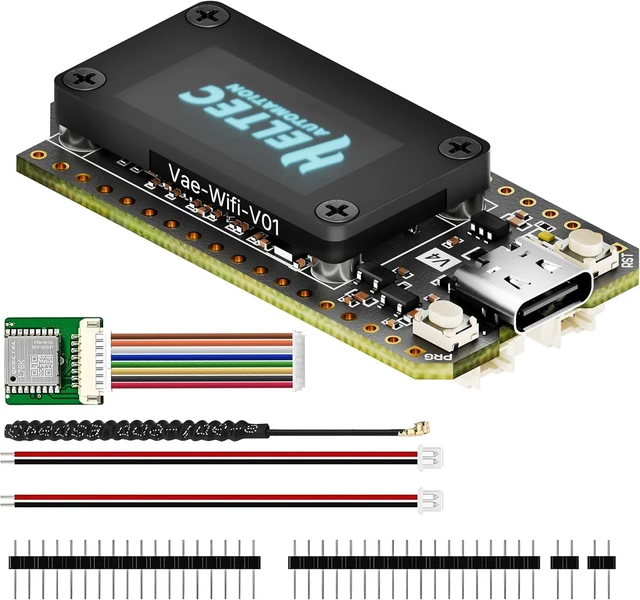

Main image of Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 2 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 3 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 4 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 5 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 6 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Alt view image 7 of 7 - Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Shop All ENVEL Products | Visit Faro Global Electronics Store

Heltec ESP32 LoRa 32 V4 Development Board with OLED Display & L76 GNSS GPS Module, 27dBm High Power ESP32 S3 SX1262 Chip for Meshtastic WiFi IoT & Smart Home

Item #: 9SIVUK2M7M6175
Mfr. Part #: IPJ5JR91HGCK

Be the first to review this product...

V4 Upgraded ESP32-S3 & LoRa SX1262 Development Board: This Lora V4 Development Board with GNSS features the latest ESP32-S3R2 chip with 2MB PSRAM and 16MB Flash, delivering superior processing for complex IoT applications and Meshtastic projects. This major upgrade from V3 models provides enhanced performance for Meshtastic devices, LoRa development boards, and sophisticated user interfaces, ensuring smooth operation of advanced firmware.
High Power 27dBm Long-Range LoRa Radio Communication: The Meshtastic device experience exceptional wireless range with 27dBm transmission power and -137dBm sensitivity. Perfect for building reliable Meshtastic nodes, LoRa radio networks, smart home IoT devices, and industrial applications. This LoRa module provides greater communication distance across large properties and urban environments.

Overview

Specs

Reviews

Integrated OLED Display & Complete LoRa Meshtastic Kit: This heltec V4 with gps includes a 0.96-inch OLED display for real-time data visualization without additional hardware. The protective casing features FPC antenna for stable Wi-Fi/Bluetooth and external antenna for enhanced LoRa performance. Provides a complete Meshtastic development board experience ready for immediate deployment.
Advanced Power Management with Solar & GPS Connectivity: The ESP32 LoRa 32 V4 designed for outdoor use with optimized battery management and 20A sleep current. Includes solar panel interface for Meshtastic solar nodes and GNSS port for Meshtastic GPS applications. Type-C interface with voltage regulation ensures reliable operation for asset tracking and remote monitoring.
Fully Compatible ESP32 LoRa Development Board: The ESP32 Lora V4 Development Board maintains complete pin compatibility with Heltec LoRa 32 V3 for seamless project migration. Ready for and PlatformIO development, this versatile board supports LoRaWAN, Wi-Fi, and Bluetooth protocols for smart agriculture, industrial IoT, and wireless security systems.
