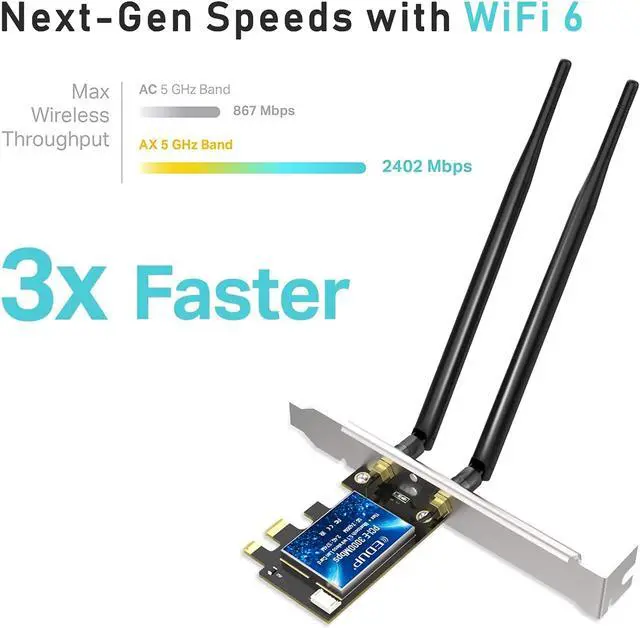

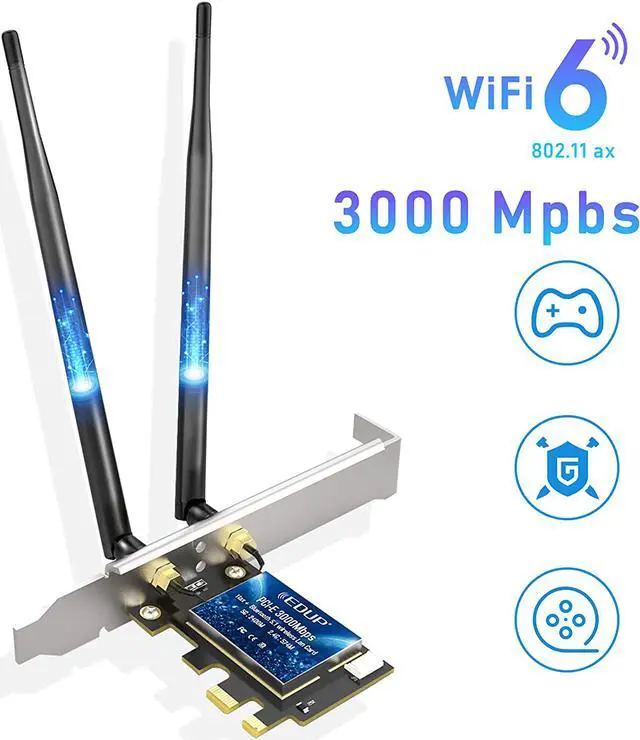

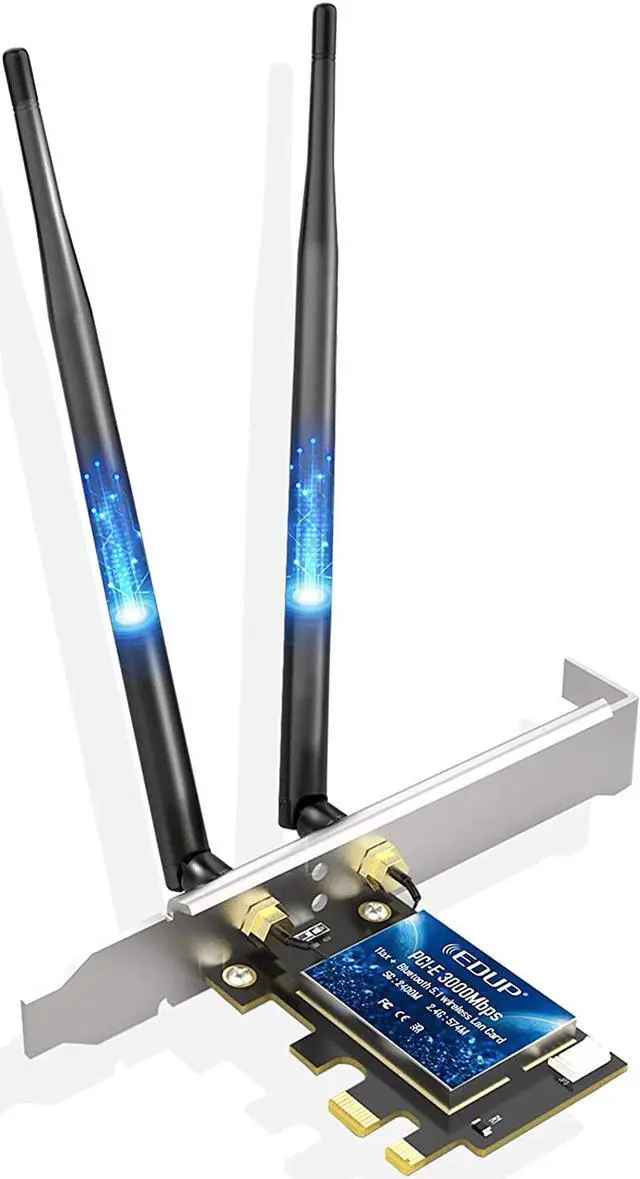

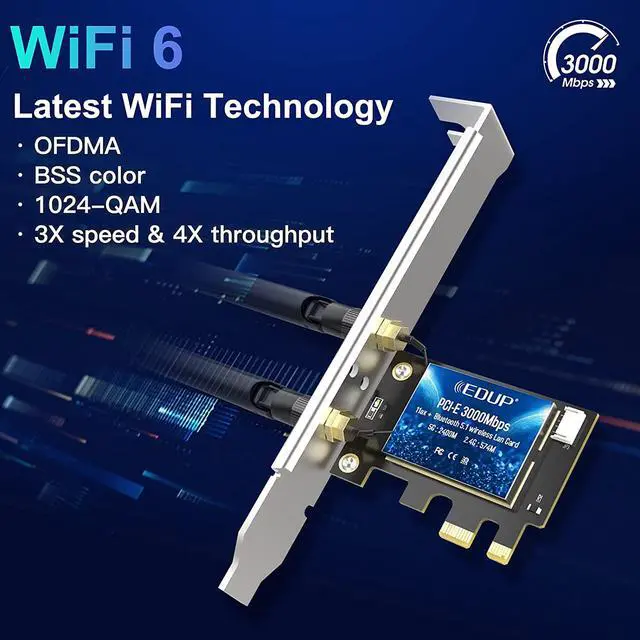

WiFi 6 Card Bluetooth 5.1 AX 3000 Mbps AX200 Dual Band 5.GHz/2.4GHz PCI-E Wireless WiFi Network Adapter Card for Desktop Windows 10 64-bit

Specification:


Type: PCIE Wi-Fi 6 Network Card with Bluetooth 5.1

Support System: Only Windows 10 64-bit

Chipset: Intel Wi-Fi 6 AX200

IEEE WLAN Standard: 802.11a/b/g/n/ac/ax

Connection: WiFi 6 / Bluetooth 5.1

Support Interface: PCI-E/X1/X4/X8/X16; 9-pin usb for Bluetooth

Transmission Rate : 2.4Ghz up to 600Mbps / 5.8Ghz up to 2400Mbps

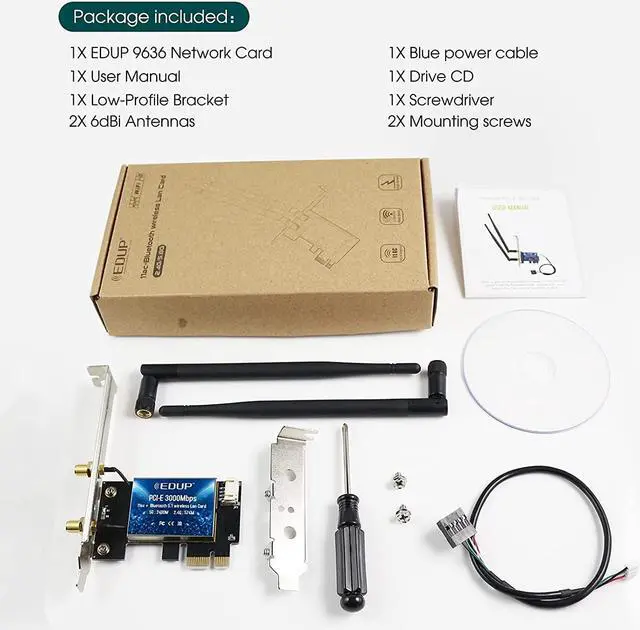

Package Included:


1 * EDUP PCI-E Wifi 6 Network Card

2 * External High Gain Antenna

1 * CD disk ( Include Driver )

1 * Small Chassis Baffle

1 * Screwdriver ; 2 * Screws

1 * User Manual


Intel AX200 Chipset:

Support dual band 2.4GHz/5.8GHz, Frequency 5.8GHz up to 2400Mbps, Frequency 2.4GHz up to 600Mbps.

It is the best choice for desktop for online gaming and 4K Ultra HD video streaming

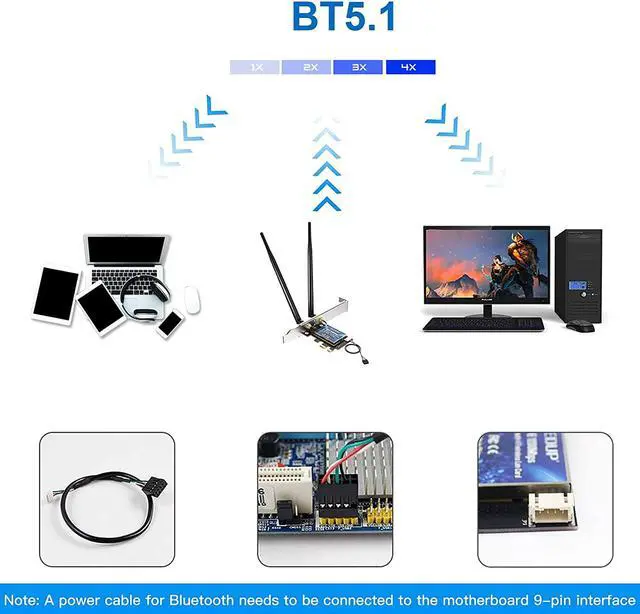

Bluetooth 5.1 Technology:

Expand the range of 4 x Bluetooth 4.2 signal, no need to worry the signal will be weak in the room and waiting long time for transport the large files.

It can connect with the mouse, earphone, keyboard and other Bluetooth devices.


MU-MIMO Wireless Technology:

Significantly improve the network quality, and the Internet speed is improved compared to ordinary AC network cards. The router can transmit data with 3 devices at the same time.


User Stage of Install :

Open the chassis side cover and remove the chassis back panel screws

Insert the PCI-E into the corresponding card slot.

Find the 9-pin USB connector on the motherboard, and plug the external cable of the PCI-E into the USB connector on the motherboard .

Attach the screws to the rear bezel


Knowing the following will give you a better product experience


1. For desktop only. A blue-tooth power cable needs to be connected to the motherboard 9-pin interface, or the blue-tooth function won't work.

2. The specification of this wireless USB adapter is 3000Mbps (2.4G: 600Mbps, 5G: 2400Mbps). A router with 3000Mbps or above can maximize the performance of our PCIE wifi adapter.

3. This Wi-Fi dongle will not boost the speed of original router, which only helps your computer to receive the router's signal and speed better.

4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memorythe interference of many factors can affect the speed.

5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is built-in Wi-Fi function in your desktop pc ).
