AX200 PCIe WiFi Adapter Card WiFi 6 PCIe Wi-Fi 6 802.11ax Card PC Internet Network Wireless PCI Card Next-Gen MU-MIMO 2x2 2.4GHz 5GHz BT 5.0 3000Mbps 11AX Miracast vPro AX200NGW OFDMA WiFi nic

Wi-Fi 6 802.11ax Card PC Internet Network Wireless PCI Card

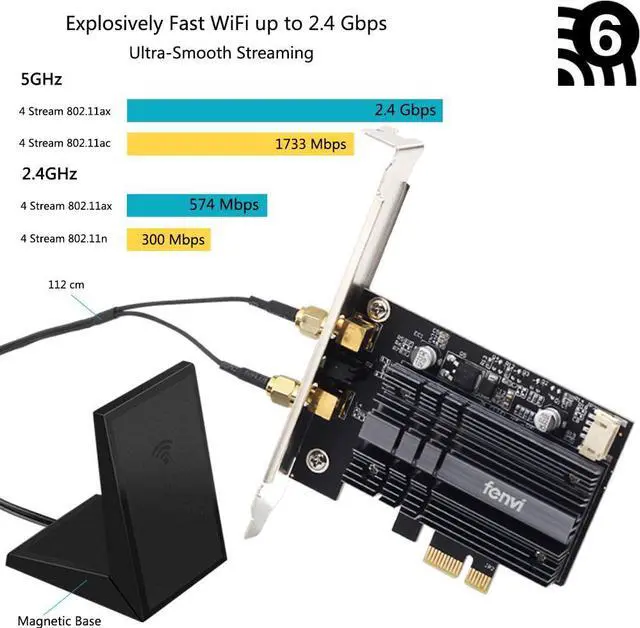

This AX200 is PCI-e Wi-Fi 6 ax200ngw bt 5.0 pcie wifi card for desktop, it supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). The module supports MU-MIMO, 2x2 TX/RX channels with two antennae and BT 5.0 . In addition to Windows 10 and Google Chrome OS, there's also Linux support, enabled in the Linux 5.1 kernel.

Matching Wi-Fi 6 devices will deliver the best results FV-AX200, like have a compatible router for wifi 6:


ASUS Gigabit WiFi Router GT-AX11000 RT-AX88U RT-AX92U RT-AX95Q RT-AX95U GT-AX6000 RT-AX58U ROG Rapture

Arris SURFboard mAX W31 TG9442 D-Link DIR-X6060 DIR-X9000

Netgear RAX200 (Nighthawk Tri-Band AX12) RAX80 (Nighthawk AX8) RAX120 (Nighthawk AX12) RAX40 (Nighthawk AX4) RAX40 (Nighthawk AX4) AC1900 Dual Band WiFi Router

TP-LINK Archer AX11000 Archer AX1500 Archer AX1800 Tplink Archer AX6000 Calix GigaSpire GS2020E GS2026E Charter RAX1V1K NEC BL1000HW

Ruckus R730

And many other version wifi 6 ax routers which support wifi 6 network

With MU-MIMO technology, ax3000 can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

Pack More Data ­ With 1024 QAM

With 1024-QAM, each symbol carries 10 bits rather than 8 bits, improving raw speeds by 25% compared to 802.11ac 256-QAM. Watch Netflix at home or live stream Twitch Broadcasts from your home computer – with 1024 QAM, streaming just got that much better.

Flags: BT 5.0, DFS (slave), VHT160, HE160, Wi-Fi 6, 1024QAM

Bands: 2.4 Ghz 5 Ghz

Channel: 20MHz, 40MHz, 80MHz, 80+80MHz & 160MHz

Data Rates: 600.8 Mbps(80 MHz, 1 SS) 9607.8Mbps(160Mhz, 8 SS)

Interference from your neighbors' wireless networks can cause issues with your wireless signal. BSS (Base Service Station) Color, marks frames from neighboring networks so that your router can ignore them. If you’ve ever lived in an apartment or close to your neighbors, this means that your router just became that much more efficient – no extra work required.
