Wireless-AC8265 Dual Mode Intel AC8265 Wireless NIC Module for Jetson Nano Developer Kit B01/A02, Support 2.4GHz/5GHz 300Mbps/867Mbps Dual Band WiFi and Bluetooth 4.2

AC8265 Wireless NIC, 2.4G / 5G WiFi, Bluetooth 4.2, Applicable for Jetson Nano

Overview

This is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.

Features

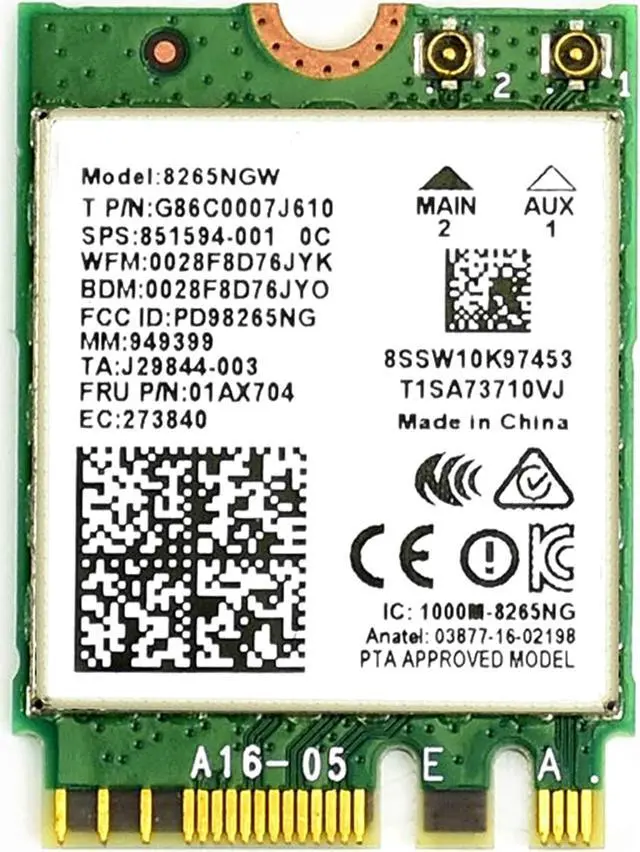

Chip: Intel 8265AC
Bands: 2.4GHz / 5GHz
Speed: 300Mbps / 867Mbps
WiFi protocol: 802.11ac
Bluetooth version: 4.2
NIC interface: NGFF (M.2)
Antenna interface: IPEX connector
Supported OS: Linux, Windows 10/8.1/8/7
Dimensions: 22mm × 30mm × 2.4mm

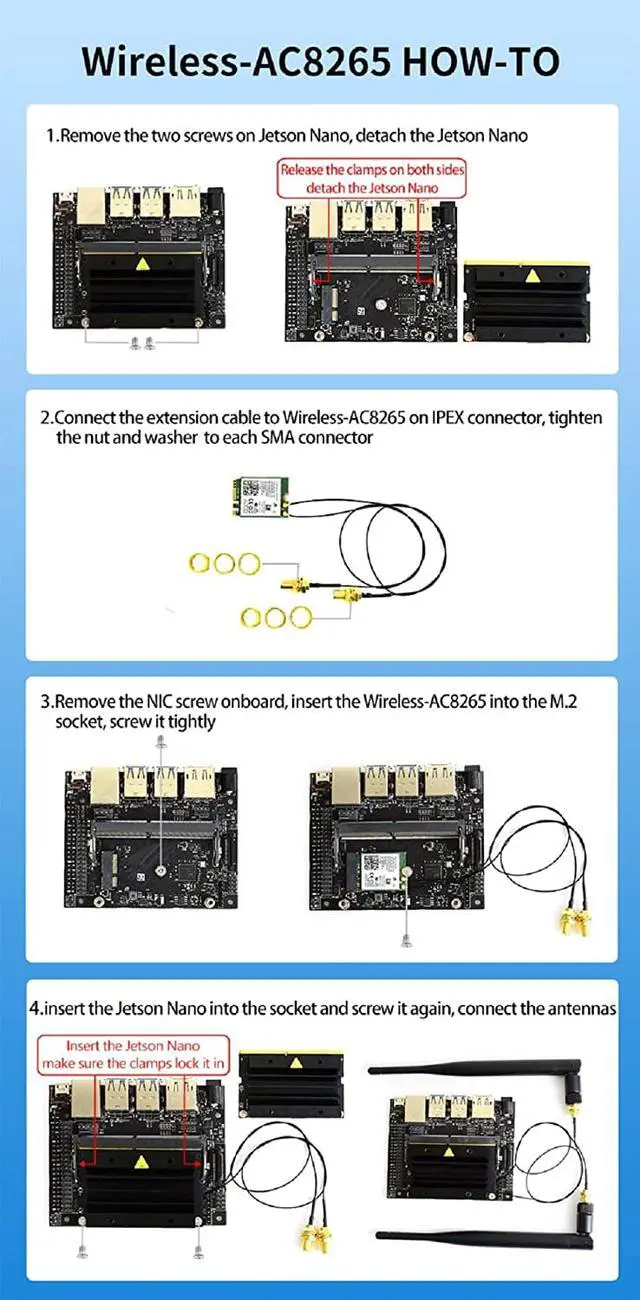

How to Use:

1.Remove the two screws on Jetson Nano,detach the Jetson Nano

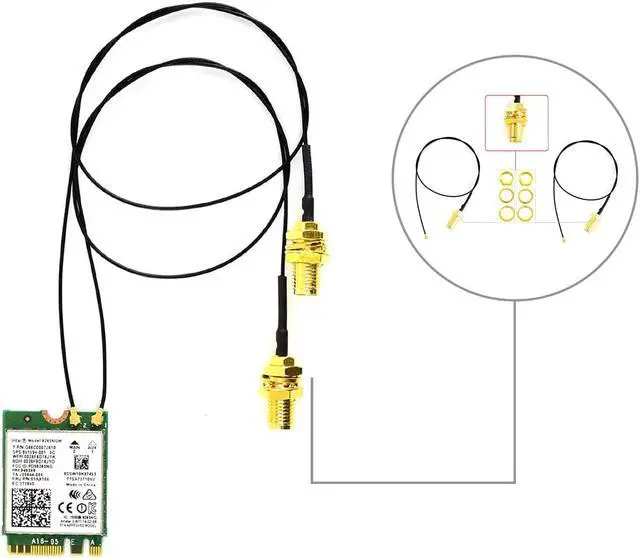

2.Connect the extension cable to Wireless-AC8265 on IPEX connector , tighten the nut and washer to each SMA connector
3.Remove the NIC screw onboard, insert the Wireless-AC8265 into the M.2 socket , screw it tightly
4. Insert the Jetson Nano into the socket and screw it again , connect the antennas

Please check detailed Graphic and Textual instruction from the picture above

Note:This item does not support Jetson Nano 2GB Developer Kit

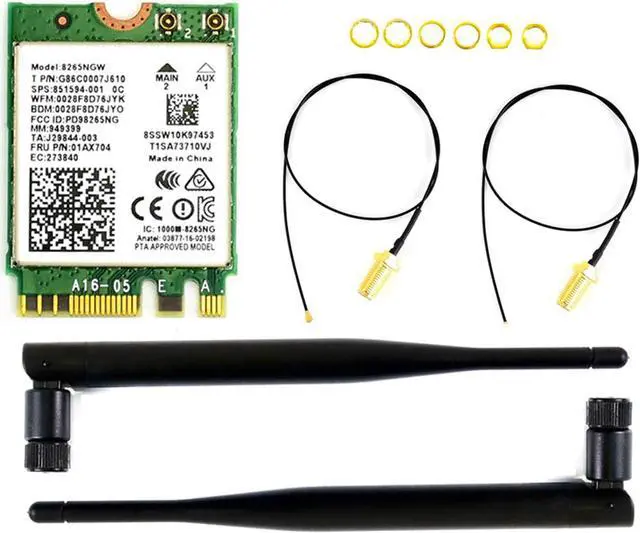

PACKAGE CONTENT

1.Wireless-AC8265 x1
2.Antenna x2
3.IPEX to SMA cable x2
