Dual Port 2.5G Gigabit LAN Gaming Card Network Card I225 PCI-E x1 RJ45 NIC

Description:

COMPATIBLE WITH OSCompatible with Windows 10 / 11, Linux kernel up to 5.6 operating systems.
DRIVER INSTALLATION REQUIRED
To find more OS compatibility version or driver download.
2.5GBPS PCIE NETWORK ADAPTER WITH RTL8125B CHIPPC
Ie 2.5G 4-Speed Multi-Gigabit Network Adapter supports data rate up to 2.5 Gbps. It will increase business working efficiency by increasing the network speed. The transmission is more stable, and it is not easy to cause packet loss and distortion.
ADD 2.5G RJ45 ETHERNET PORT
Fits any PCI Express x1, x2, x4, x8 or x16 socket.
NOTE: Only work with PCI-E slot, Not for PCI Slot.
PACKAGE CONTENTS 2.5G PCIe network card, standard bracket, low-profile bracket, screwdriver, screws, CD Drive.
2.5G bps Network SpeedUp to 2.5 times faster data transfer speed, using next-generation 2.5GB ase-T technology, faster than standard Gigabit Ethernet, better for large-scale games and complex task processing, providing a better experience for desktop computers.

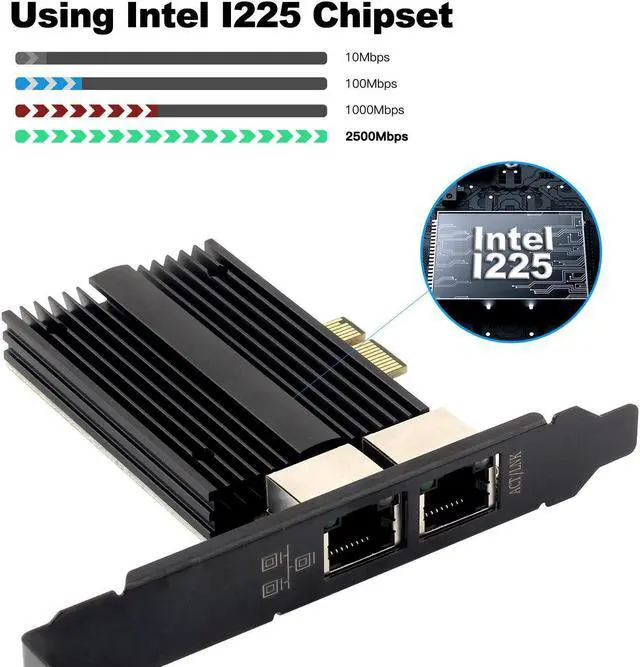

High Performance ChipRLihm 2.5GB ase-T pci express network card adopts I225-V chip, which is stable and fast, and performs well in large-scale games and complex multitasking. The 2.5 gb ethernet card auto-negotiates between high-speed and low-speed connections, automatically adapting to the connected network device.

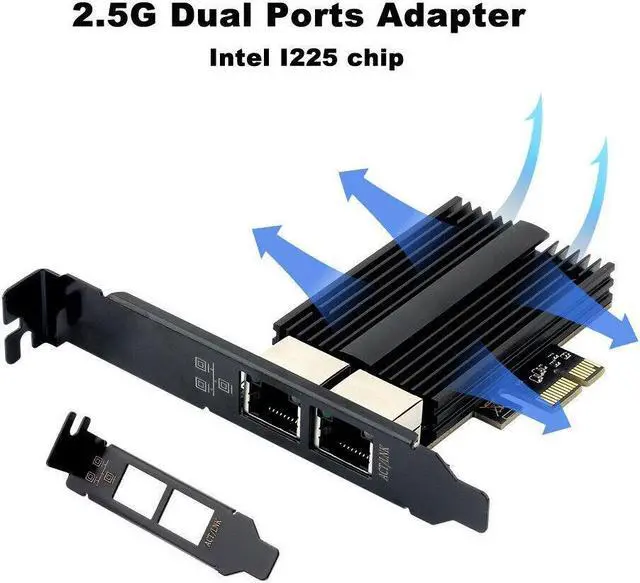

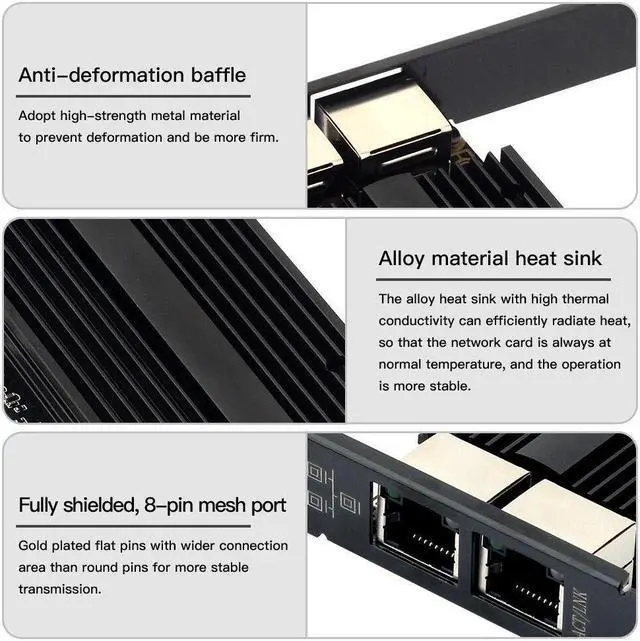

Heatsinks and BracketsThe pci express network card comes with standard brackets and low profile brackets, suitable for desktop and small/slim computers/servers; to improve usage stability and cool down quickly, our network cards are equipped with heat sinks.
OS SupportRLihm network card for pc is fully compatible with Windows 10/11 and Linux to meet more of your needs.
Full CompatibilityThis pc network card is compatible with PCIE-1, PCIE-4, PCIE-8 and PCIE-16 slots and is compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz.
Pay AttentionThe I225-V chipset is not suitable for server CPUs below the sixth generation, please check if it is compatible with your computer before placing an order.


Specification:
Chipset: I225

Port number: 1* RJ45

Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 abIEEE 802.3 azIEEE 802.3 bz

Network media: 10Base-T, cat3 or above UTP, 1000Base-Tx, cat5 or above UTP

Data rate: PCI Express 1x slot

Auto MDIX: YES

Full Duplex Support: YES

LED Indicator: 100M/1G/ 2.5G Link/Act

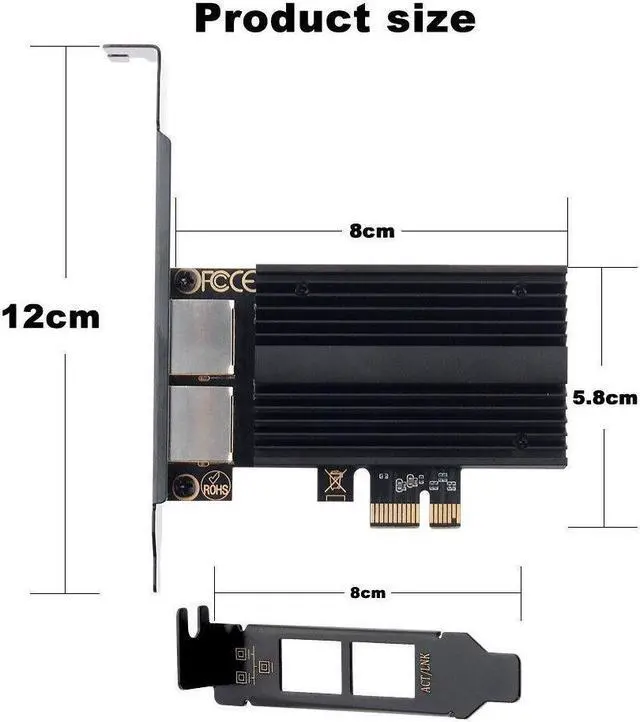

Dimension: 71.5 *50* 1.6 mm

Support OS: Windows 10(32/64), Win7 (32/64), Win8, 8.1 (32/64), Windows Server, 2012, 2008, Linux, Mac OS

Support PXE function.

Support Wake on LAN

Support 2.5G and 1G Lite mode

Compatible with NBASE-T Alliance PHY Specification

Supports PCI Express 2.1

Supports 1-Lane 2.5G /5Gbps PCI Express Bus

Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab

Supports IEEE 802.1P Layer 2 Priority Encoding



Supports IEEE 802.1Q VLAN tagging

Supports IEEE 802.3 az (Energy Efficient Ethernet)

Supports IEEE 802.3 bz( 2.5GBASE -T)

Supports Full Duplex flow control(IEEE 802. 3x)

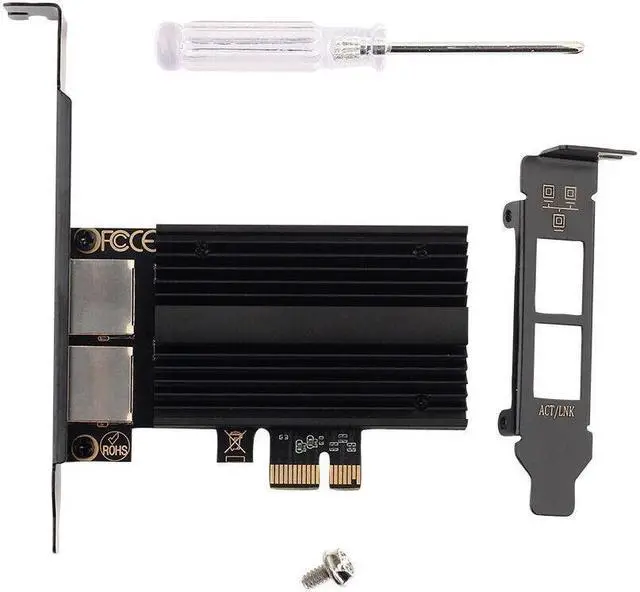

Packing:

1*PCIe Gigabit Ethernet Adapter

1*Low Profile Bracket

1*Screwdriver

Screw
