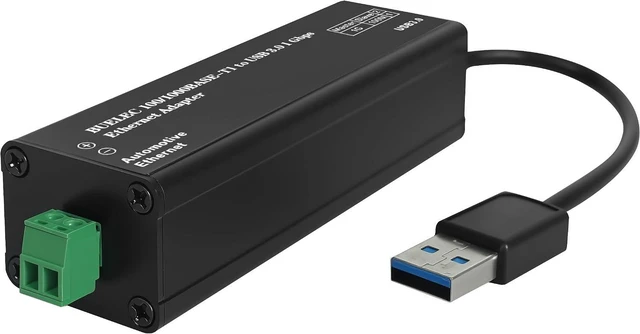

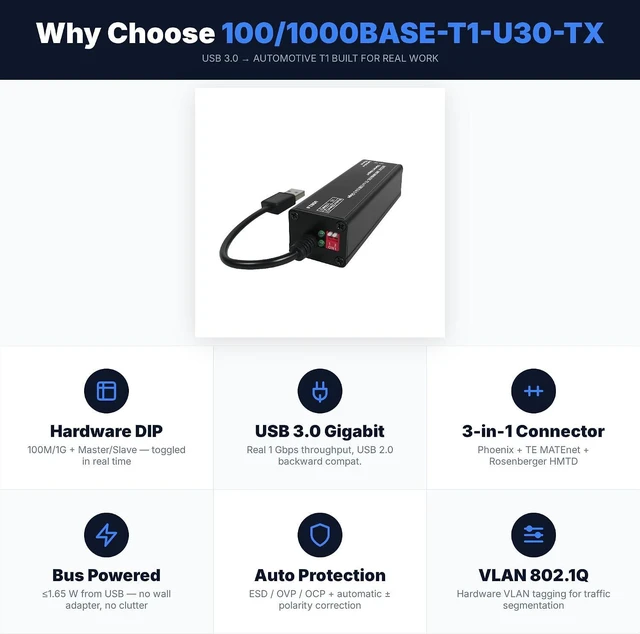

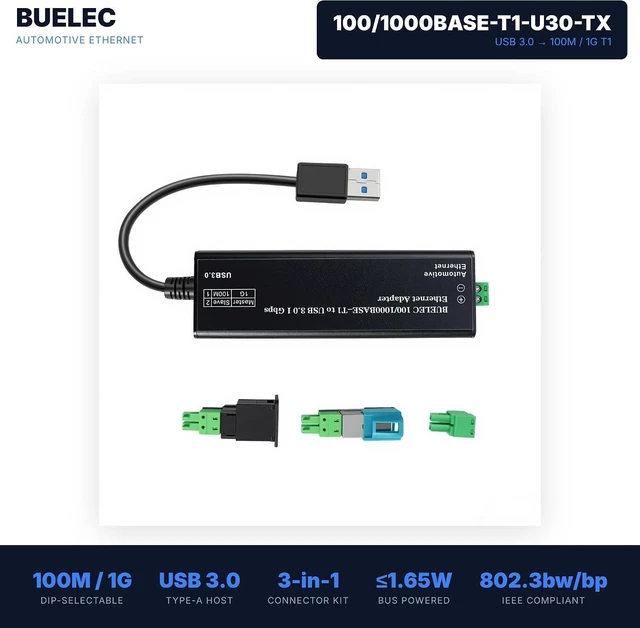

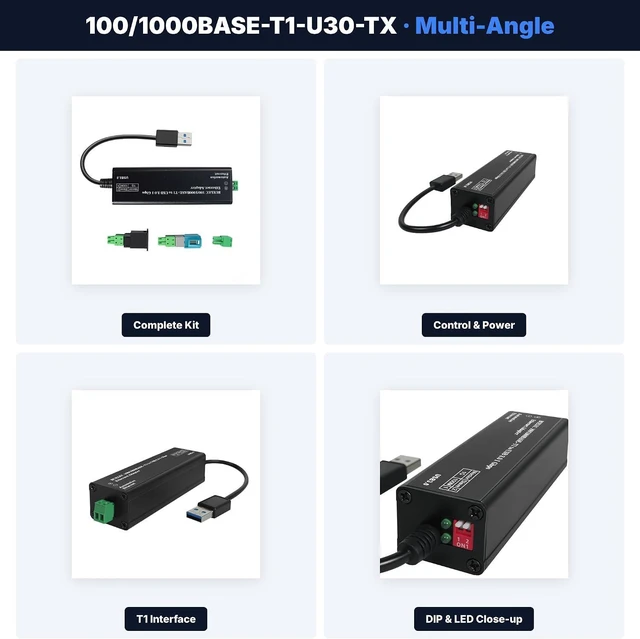

USB 3.0 to Automotive Single-Pair Ethernet Adapter, 100/1000BASE-T1, Bus Powered, with MATEnet & HMTD Adapters, Plug and Play
- Item #: 9SIVU44M279792
- Mfr. Part #: CLOLB0GXYBYQX5
- UNSPSC: 43222612
- USB 3.0 TO AUTOMOTIVE ETHERNET No RJ45, no power adapter needed; plug directly into any PC or laptop USB port for instant access to 100BASE-T1 and 1000BASE-T1 networks. Fully bus-powered at max 1.65W and backward compatible with USB 2.0.

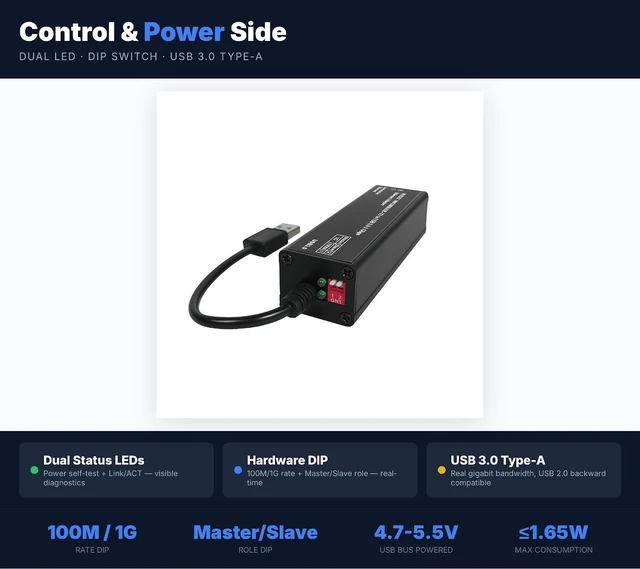

- 1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.

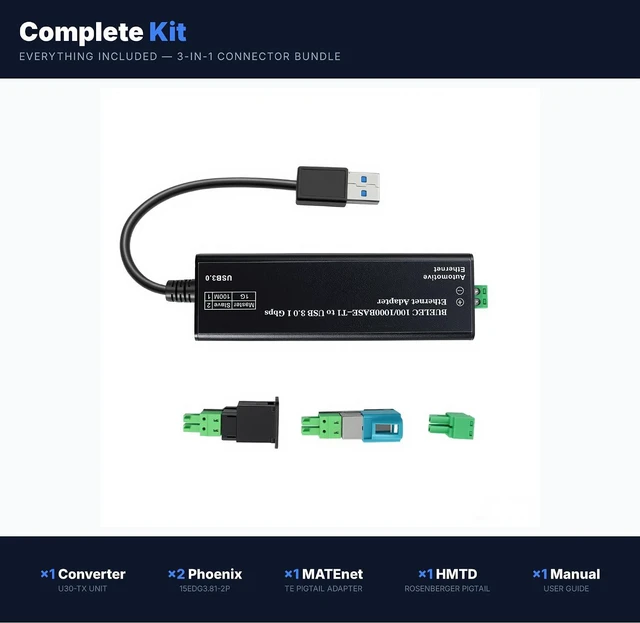

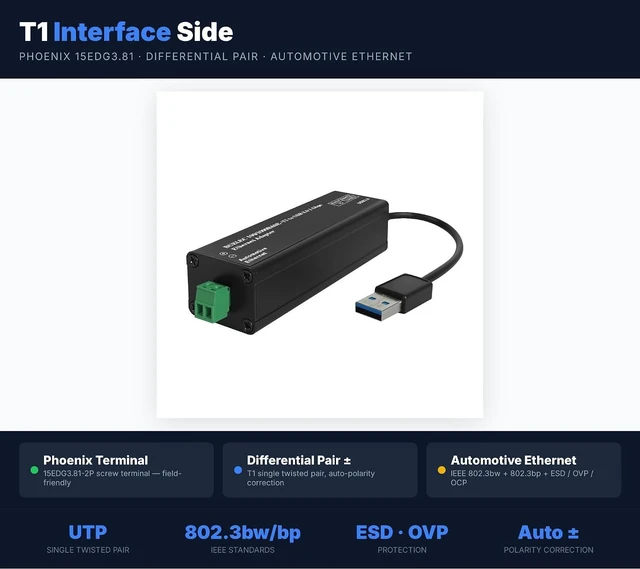

- UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
- RUGGED DIE-CAST ALLOY ENCLOSURE Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection; rated for 32°F to 12
+
+
Overview
Specs
Reviews
USB 3.0 TO AUTOMOTIVE ETHERNET No RJ45, no power adapter needed; plug directly into any PC or laptop USB port for instant access to 100BASE-T1 and 1000BASE-T1 networks. Fully bus-powered at max 1.65W and backward compatible with USB 2.0.
1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.
UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
RUGGED DIE-CAST ALLOY ENCLOSURE Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection; rated for 32°F to 122°F and 595% RH (non-condensing).
BROAD OS SUPPORT AND PLUG AND PLAY Auto-installs on Windows XP through 11, Linux kernel up to 6.17, and macOS 10.810.15. Dual status LEDs indicate link activity and system health. Ideal for DoIP diagnostics, ECU flashing, and ADAS development.
1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.
UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
RUGGED DIE-CAST ALLOY ENCLOSURE Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection; rated for 32°F to 122°F and 595% RH (non-condensing).
BROAD OS SUPPORT AND PLUG AND PLAY Auto-installs on Windows XP through 11, Linux kernel up to 6.17, and macOS 10.810.15. Dual status LEDs indicate link activity and system health. Ideal for DoIP diagnostics, ECU flashing, and ADAS development.
