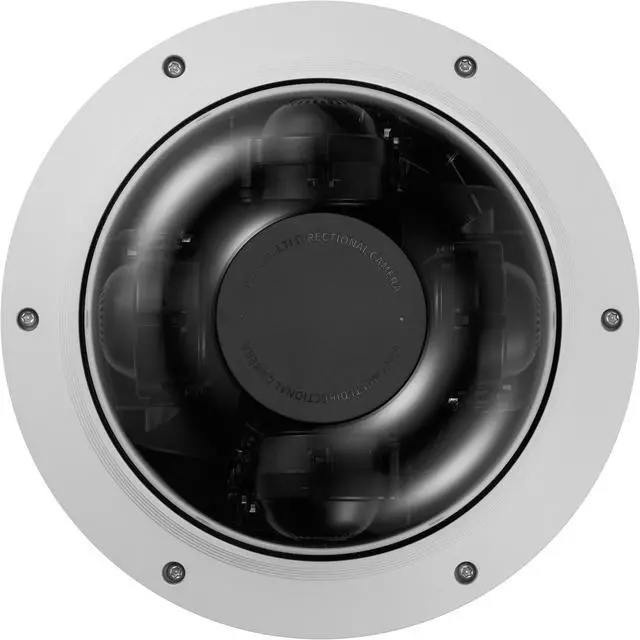

Samsung Hanwha Techwin PNM-9084QZ 2M H.265 PTRZ Multi-directional Camera
+
+
Overview
Specs
Reviews
- Video
- Imaging Device
- 1/ 2.8" 2MP CMOS: each CH
- Effective Pixels
- 1945 (H) x1097 (V): each CH
- Min. Illumination
- Color: 0.04 lux(F 2.2 1/30sec)
BW: 0.004 lux(F 2.2 1/30sec)
- Lens
- Focal Length (Zoom Ratio)
- 3~6mm (2x) motorized varifocal
- Max. Aperture Ratio
- F 2.2 (Wide) -F 3.1 (Tele)
- Angular Field of View
- H:
107° (Wide) ~ 56.3 ° (Tele) / V:
57° (Wide) ~ 31.5 ° (Tele) / D: 126° (Wide) ~ 64.3 ° (Tele)
- Min. Object Distance
- 0.5 m( 1.64 ft)
- Focus Control
- Simple focus
- Lens Type
- DC auto iris
- Pan / Tilt / Rotate
- Pan / Tilt / Rotate Range
- Remote adjustment (Max. 200cycles)
0~360° / 0~73° / 0~90°
- Operational
- Camera Title
- Displayed up to 85 characters
- Day & Night
- Auto (ICR)
- Backlight Compensation
- BLC HLC WDR SSDR
- Wide Dynamic Range
- 120dB
- Digital Noise Reduction
- SSNR?
- Digital Image Stabilization
- Support
- Defog
- Support
- Motion Detection
- 8ea 8point polygonal zones
- Privacy Masking
- 32ea polygonal zones
- Color: Grey Green Red Blue Black White
- Mosaic
- Gain Control
- Low / Middle / High
- White Balance
- ATW / AWC / Manual / Indoor / Outdoor
- LDC
- Support
- Electronic Shutter Speed
- Minimum / Maximum / Anti flicker (2~1/12000sec)
- Video Rotation
- Flip Mirror Hallway view(90°/270°)
- Analytics
- Defocus detection Directional detection Fog detection Face detection Motion detection Appear/Disappear Enter/Exit Loitering Tampering Virtual line Audio detection
- Alarm I/O
- Input 1ea / Output 1ea
- Alarm Triggers
- Analytics Network disconnect Alarm input
- Alarm Events
- File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Alarm output
Handover
- Audio In
- Selectable(mic in/line in)
Supply voltage: 2.5VDC (4mA)
Input impedance: 2K Ohm
- Audio Out
- Line out
Max. output level: 1Vrms
- Network
- Ethernet
- RJ-45(10/100/1000BASE-T)
- Video Compression
- H. 265/H. 264: Main/Baseline/High MJPEG
- Resolution
- 1920x1080 1280x1024 1280x960 1280x720 1024x768 800x600 800x448 720x576 720x480 640x480 640x360 320x240
- Max. Framerate
- H. 265/H. 264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
- Smart Codec
- Manual (5ea area) WiseStream?
- Bitrate Control
- H. 264/H. 265: CBR or VBR
MJPEG: VBR
- Streaming
- Unicast (10 users) / Multicast
Multiple streaming (Up to 10 profiles)
- Audio Compression
- G. 711 u-law /G. 726
G. 726 (ADPCM) 8KHz G. 711 8KHz
G.
