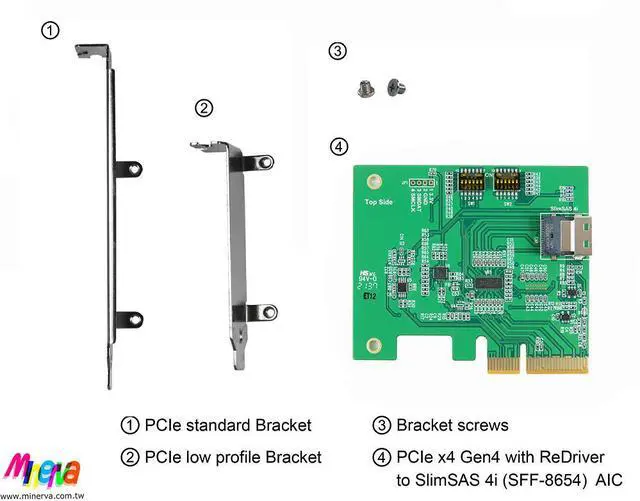

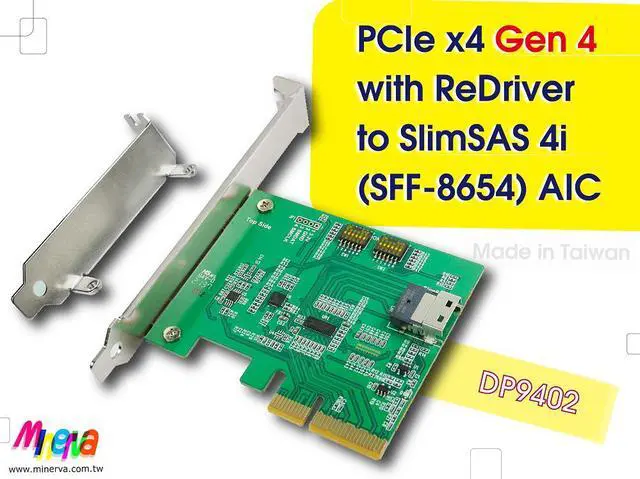

PCIe x4 Gen4 with ReDriver to SFF-8654 4i AIC

Features :
* SlimSAS 4i (SFF-8654) to PCI Express 4.0 x4 convert
* Built- in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1
* Built- in PCIe 4.0 ReDriver to extend PCIe x4 data width link signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in PCIe SMBus bidirectional buffer repeater
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D3 Green LED on indicates AIC ready

Specifications :
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support :
* Windows 7
* Windows 8 &8.1
* Windows 10
* UEFI 2.3.1 or later

Applications :
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA(Host Bus Adapter)
* Desktop PC/motherboard
